Furuno Cable For 2-12KW DRS Radars.
Couldn't load pickup availability
Description
Description

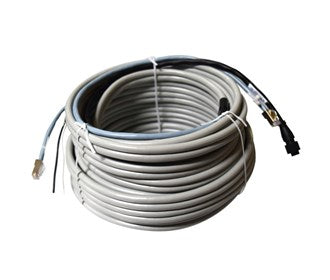

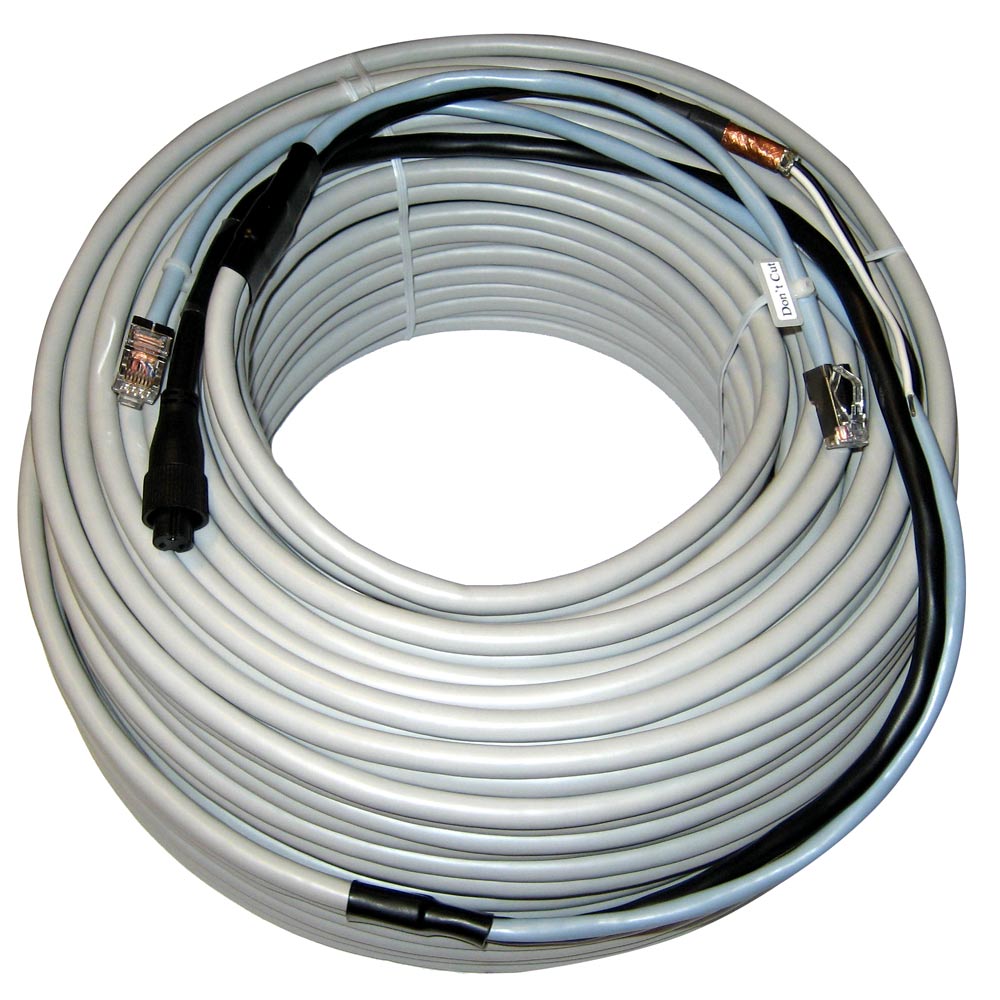

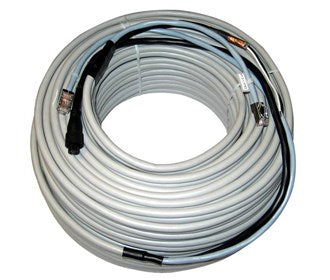

Furuno Radar Sensor Cable Assemblies for DRS Series
These Furuno radar sensor cables provide reliable connectivity for various DRS radar units, including 2 kW up to 12 kW models. Available in 10, 20, and 30 meter lengths, these cables consist of dual cables joined as Siamese assemblies, incorporating Ethernet (RJ45) connections for data and power supply terminals for the radar display unit. These cables enable flexible installation to accommodate vessel layouts ensuring seamless radar operation.
Model Overview
| Model | Cable Length | Compatible DRS Models | Connector Types | Key Features |
|---|---|---|---|---|
| 00134166000 | 10 meters | DRS2, DRS4, DRS6, DRS12 | RJ45 Ethernet (data), 3-pin (power) | Pre-assembled Siamese cable, factory-quality |
| 00134182000 | 20 meters | DRS2, DRS4, DRS6 | RJ45 Ethernet (data), 3-pin (power) | Siamese cable, power cable has no DRS end connector |
| 000167638 | 30 meters | NavNet 3D DRS sensors 2kW-12kW | RJ45 Ethernet (data), 3-pin (power) | Longer cable for extended installations |
Key Specifications
-
Siamese cable design: data and power cables combined
-
Data cable equipped with RJ45 Ethernet connectors on both ends
-
Power cable with 3-pin connector on display end; DRS end typically without connector
-
Compatible with Furuno DRS2, DRS4, DRS6, DRS12, and NavNet 3D radar systems
-
Enables versatile installation lengths for different vessel configurations
Applications and Benefits
-
Extend radar sensor connectivity without performance degradation
-
Factory-made cable assemblies suitable for replacement or new installations
-
Ensures reliable power and data transmission to radar sensors and display heads
-
Compliant with Furuno’s high standards for maritime electronics
