Furuno 001-533-080-00 NMEA2000 Micro Cable 6 Meter

Product Description

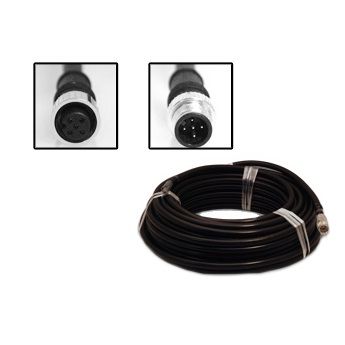

Furuno double-ended NMEA2000 Micro Cable measuring 6 meters, featuring male-to-female straight Micro connectors for extending device connections in marine NMEA2000 networks. It supports seamless integration of Furuno sensors, displays, and instruments on boats.

Product Overview

This longer cable suits extended routing in larger vessels for navigation data sharing, such as between chartplotters and transducers during fishing or offshore trips. It's ideal for marine installers needing drop cable extensions up to network limits without performance loss.

Key Specifications

• Length: 6 meters (19.7 feet)

• Connectors: Micro male-to-female (double-ended, straight)

• NMEA2000 certified for rugged marine use


Technical Specifications

• Complies with NMEA2000 drop length max (6m per device) and voltage drop under 1.5V

• Supports multi-device backbones up to 50 nodes with 3A power capacity

• Shielded 24AWG conductors for reliable signal in wet, vibrating environments

• Compatible with Furuno TZT, NavNet, and standard NMEA2000 ecosystems

What's in the Box

• One 6m NMEA2000 Micro Cable (001-533-080-00, male-female straight)

• No tees, terminators, or power taps included
