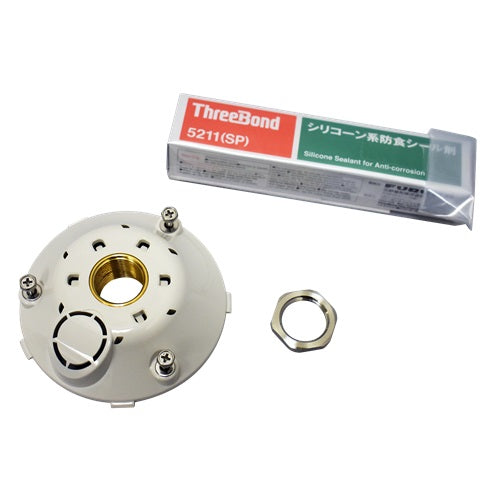

Furuno 001-554-920-00 Pole Mount for SCX20/21

Product Description

The Furuno Pole Mount is a dedicated mounting bracket for securing Furuno SCX20 and SCX21 Satellite Compass units to standard poles on marine vessels.

Product Overview

This pole mount supports stable installation of SCX20 (NMEA2000) and SCX21 (NMEA0183) satellite compasses, providing precise heading, position, and attitude data for navigation, radar stabilization, and autopilot integration in boating and offshore applications.

Key Specifications

• Designed exclusively for SCX20 and SCX21 satellite compasses.

• Compact boxed dimensions: 2"H x 7"W x 7"L; weight: 0.6 lbs.

• Includes pipe, lock nut, antenna fixture, and binding screws.

• Durable construction for marine environments.

Technical Specifications

• Mounting type: Pole-compatible with Ø25.6 mm fixing holes (3-M5) and Ø6 mm holes.

• Adds minimal weight: SCX20/21 with pole mount totals 1.2 kg (2.64 lbs).

• Compatible with Furuno installation kits; IP-rated for weather resistance.

• Dimensions align with antenna unit: 234.3 mm height, 88 mm width.

What's in the Box

• Furuno Pole Mount assembly for SCX20/SCX21.

• Hardware: Pipe, lock nut (20-040-1118(T5)), antenna fixture (20-040-1105), gasket, binding screws.

• Note: Compass unit and cables (e.g., FRU-NMEA-PMMFF or FRU-CF-F) sold separately.
