Furuno 001-636-150-00 Y-Cable For FCV800 Multi-Channel CHIRP Transducer

Product Description

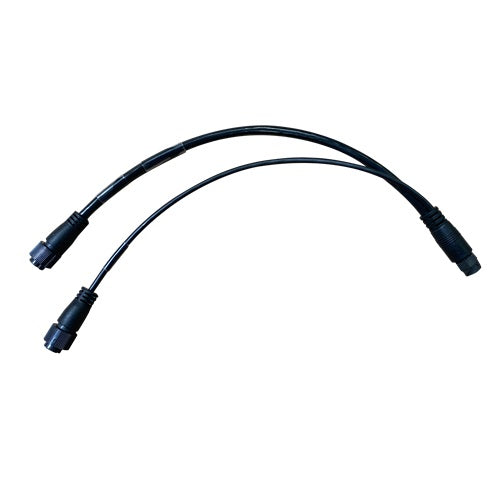

The Furuno Y-Cable for FCV800 Multi-Channel CHIRP Transducer is a specialized adapter that splits a single 12-pin port into dual 10-pin connections.

Product Overview

In marine fishing applications, this Y-cable connects two separate CHIRP transducers to the FCV800 fish finder's dual-channel sonar ports, enabling simultaneous high/low frequency operation for enhanced target separation and bottom discrimination on boats.

Key Specifications

• Connectors: 12-pin male to dual 10-pin females

• Length: 0.4 meters (1.3 feet)

• Designed exclusively for FCV800

• Supports dual-channel CHIRP transducers

Technical Specifications

• Compatible with FCV800's 600W/1kW CHIRP sonar supporting 40-225kHz frequencies across two independent channels.

• Waterproof construction for reliable thru-hull or in-hull transducer connections in saltwater environments.

• Enables multi-band CHIRP configurations without signal interference between ports.

What's in the Box

• One Furuno FCV800 Y-Cable (001-636-150-00)
