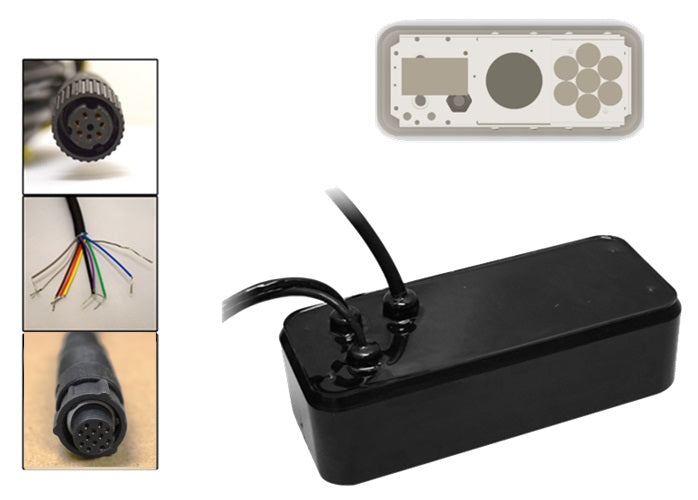

Furuno 165T/265LH-PM488-12P 1Kw Pocket Mount for DFF3D

Product Description

Furuno 165T/265LH-PM488-12P is a 1kW pocket-mount combination transducer designed for DFF3D digital sonar and CHIRP fishfinding, featuring 165kHz 3D elements plus dual-band CHIRP in an in-hull urethane housing.

Product Overview

This transducer provides Mumbai deep-sea fishing boats with 3D sonar imaging, bottom discrimination, and wide-area CHIRP coverage through hull mounting, ideal for targeting pelagic species and reef structures in coastal waters.

Key Specifications

• Frequencies: 165kHz (DFF3D), CHIRP 42-65kHz (low), 130-210kHz (high).

• Beam angles: 120° (3D), 25-16° (low CHIRP), 10-6° (high CHIRP).

• Housing: Urethane pocket mount (12 x 5 x 3.5 inches).

• Power: 1kW RMS; 12-pin connector with 12m cable.

Technical Specifications

• Built-in motion sensor and temperature sensor for accurate 3D tracking.

• Compatible with DFF3D, DFF1-UHD (no TID), TZT2L/12F/15F chartplotters.

• Bottom Discrimination and Accu-Fish functions; supports fiberglass hulls.

• Pigtail cable includes 7-pin for DFF1-UHD and 12-pin for DFF3D.

What's in the Box

• 165T/265LH-PM488-12P transducer with 12m cable.

• Installation hardware for pocket mounting.
