Furuno 165T/275LHW Pocket Mount Combo Wide Beam Transducer for DFF3D

Models:

• 165T/275LHW (with 7-pin connector)

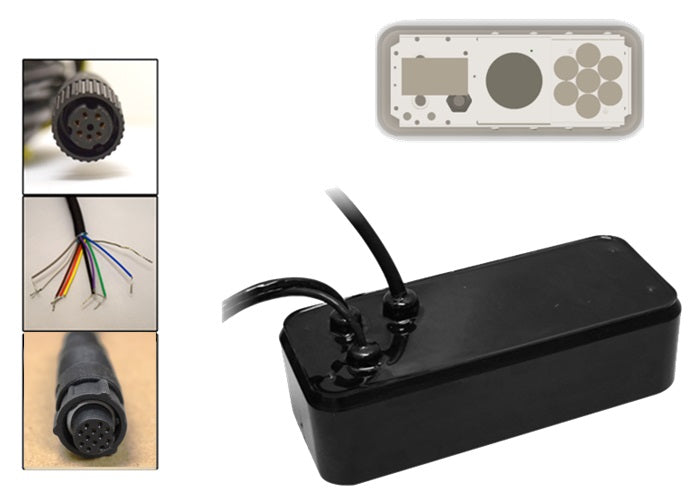

• 165T/275LHW-12P (with 12-pin connector)

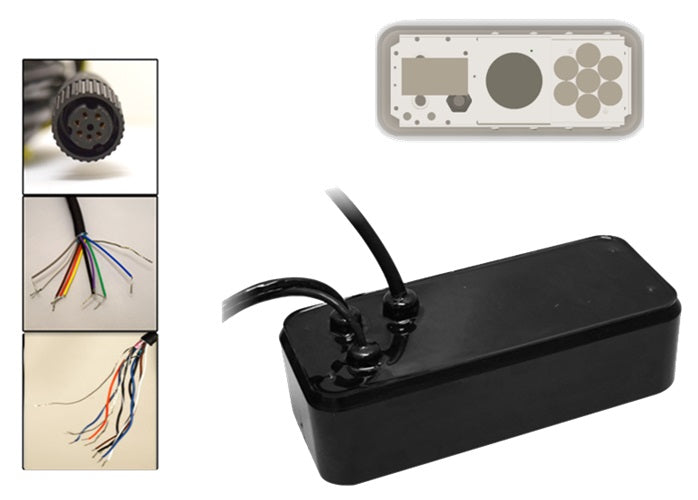

The Furuno 165T/275LHW is a compact pocket mount transducer designed for use with Furuno's DFF3D and DFF1-UHD sonar systems. It features multiband CHIRP technology to deliver superior wide beam coverage with excellent target separation and seabed imaging capabilities. Its integrated motion and temperature sensors enhance sonar accuracy by compensating for vessel movement and providing water temperature data.

Key Features

• Operates at DFF3D frequency of 165 kHz for high-resolution multibeam sonar imaging.

• Low CHIRP range from 42 kHz to 65 kHz, with beamwidth narrowing from 25° to 16° for enhanced range and clarity.

• High CHIRP range from 150 kHz to 250 kHz with a stable 25° beamwidth for detailed shallow water imaging.

• Built-in motion sensor for vessel motion compensation to stabilize sonar returns.

• Built-in temperature sensor for water temperature measurement.

• Includes 12-meter cables with pigtail connectors (7-pin for DFF1-UHD and 7-pin or 12-pin for DFF3D depending on model).

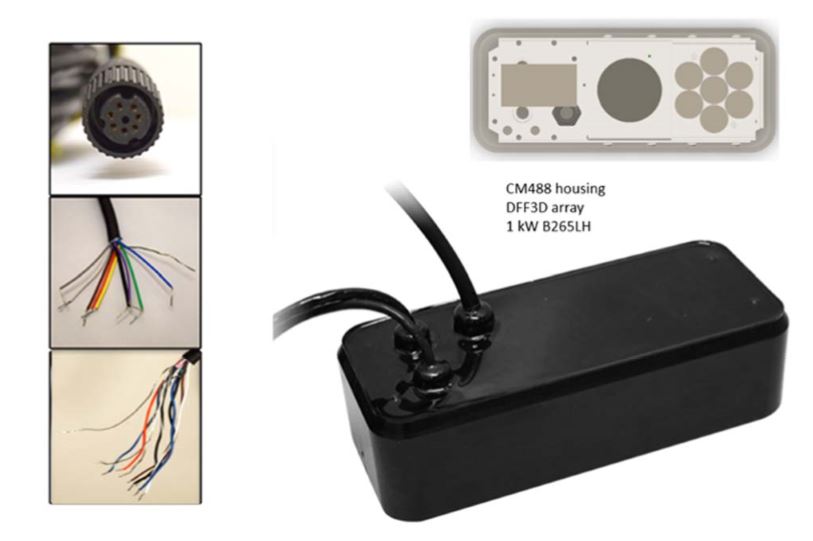

• New size housing measuring approximately 12" long, 5" wide, and 3.5" high incorporating both DFF3D and CHIRP elements.

• Recommended for combined DFF1-UHD and DFF3D installations.

Specifications

What’s in the Box

• Furuno 165T/275LHW Pocket Mount Combo Transducer

• 12-meter cables with appropriate pigtail connectors

• Installation instructions and mounting accessories
