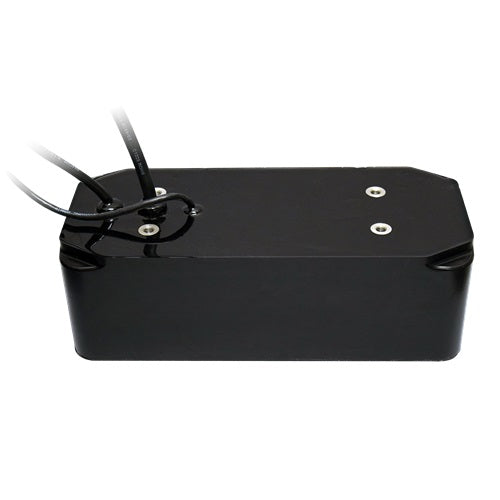

Furuno 165T-PM542Lm Pocket Mount 2kW CHIRP Transducer

Furuno 165T-PM542LM High-Power Pocket Mount Combination Transducer

Model: 165T-PM542LM

• DFF3D operating frequency 165 kHz
• Built-in motion sensor
• Built in temp sensor
• Low—CHIRPS from 30 kHz to 60 kHz, Beamwidth 19° to 10° (10° to 5° fore-aft)
• Medium—CHIRPS from 80 kHz to 130 kHz, Beamwidth 13° to 8°
• All of these elements are built into an Airmar PM542 Urethane housing
• 12M Cables. Two cables for Low & Medium CHIRP, 7 pin connector and a pigtail cable for the DFF3D

Pocket Mount Combo Transducer Low/Medium TruEcho CHIRP for FCV1900/FCV1900B (30-60 kHz and 80-130 kHz), DI-FFAMP, and DFF3D Multi-Beam Sonar (165 kHz) only
