Furuno 225T- Side-Scan CHIRP Transducers Series .

Furuno 225T Series CHIRP Side‑Scan Transducers for NavNet TZtouch3

The Furuno 225T Series provides high‑performance CHIRP Side‑Scan imaging for exceptional bottom definition, structure detail, and target clarity. Operating between 220 – 240 kHz, these transducers deliver 150 watts per side using CHIRP technology to produce high‑resolution imagery and consistent performance in shallow to mid‑depth conditions.

With built‑in temperature sensing and robust construction, these sensors integrate seamlessly with NavNet TZtouch3 multifunction displays (TZT12F, TZT16F, TZT19F) to enhance situational awareness and fish‑finding detail. Available in transom‑mount and stainless‑steel thru‑hull options, the 225T Series provides versatile installation choices for a wide range of vessels.

---

Available Models

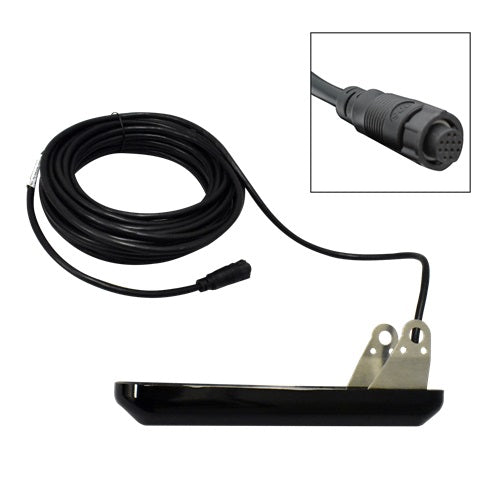

• Furuno 225T‑TM904 – Transom Mount CHIRP Side‑Scan Transducer

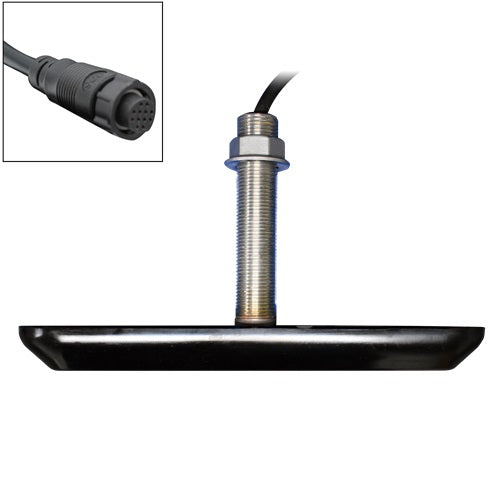

• Furuno 225T‑SS904 – Single Stainless Steel Thru‑Hull CHIRP Side‑Scan Transducer

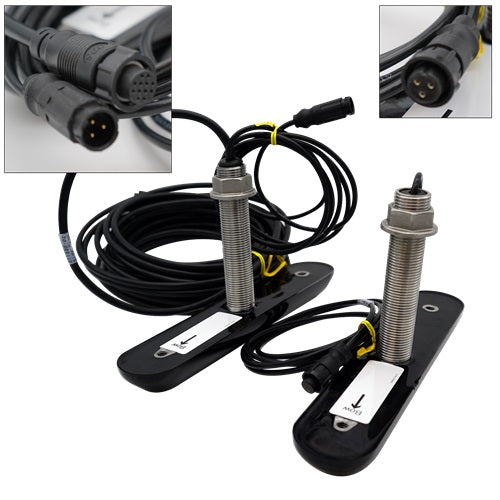

• Furuno 225T‑PR904 – Paired Stainless Steel Thru‑Hull CHIRP Side‑Scan Transducers

---

Key Features

• High‑frequency CHIRP operation (220 – 240 kHz)

• 150 W power output per side

• Compatible with NavNet TZtouch3 MFDs (TZT12F, TZT16F, TZT19F)

• Built‑in temperature sensor

• 12‑pin connector and 12 m (40 ft) cable

• Precision side‑scan imaging for structure and bottom contouring

• Durable construction for reliable performance in marine environments

---

Model Comparison

---

What’s in the Box

225T‑TM904 (Transom Mount)

• Transom‑Mount CHIRP Side‑Scan Transducer

• Mounting Bracket and Hardware

225T‑SS904 (Single Thru‑Hull)

• Stainless Steel Thru‑Hull CHIRP Side‑Scan Transducer

225T‑PR904 (Paired Thru‑Hull)

• Pair of Stainless Steel Thru‑Hull CHIRP Side‑Scan Transducers
