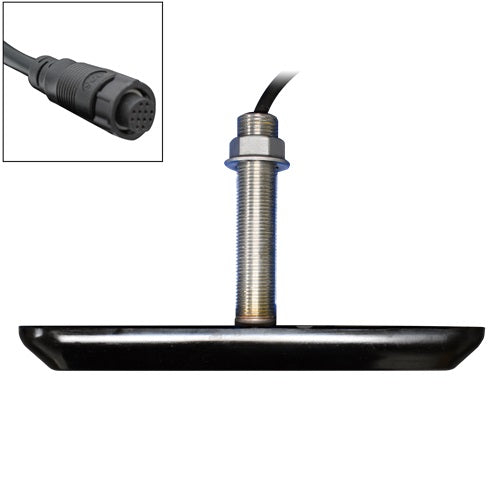

Furuno 455T-SS903 Side-Scan Stainless Steel Thru-Hull Transducer

Furuno 455T Side‑Scan CHIRP Transducer Series

The Furuno 455T Side‑Scan CHIRP Transducer Series delivers precise, high‑resolution side‑scan sonar imagery using CHIRP technology in the 445–465 kHz range. Designed for use with Furuno’s latest NavNet TZtouchXL (TZT10X, TZT13X, TZT16X) multi‑function displays, these transducers reveal detailed underwater structures, wrecks, and contours with excellent clarity out to each side of the vessel.

Available in durable transom‑mount or stainless‑steel thru‑hull configurations, both models feature temperature sensing, a 12‑pin connector, and a 12 m (40 ft) cable. Each operates at 150 watts per side for consistent, crisp imaging performance in varying water depths.

Available Models

• Furuno 455T‑TM903 – Transom Mount CHIRP Side‑Scan Transducer (with Temperature)

• Furuno 455T‑SS903 – Stainless Steel Thru‑Hull CHIRP Side‑Scan Transducer (with Temperature)

Key Features

• Compatible with NavNet TZtouchXL (TZT10X, TZT13X, TZT16X)

• High‑frequency Side‑Scan CHIRP: 445‑465 kHz

• 150 watts per side output

• Integrated temperature sensor

• 12‑pin connector for direct TZtouchXL interface

• 12 m (40 ft) cable length

• Available in Transom Mount or Stainless Steel Thru‑Hull versions

Model Comparison

What’s in the Box

Furuno 455T‑TM903 (Transom Mount)

• Transom Mount Transducer

• Mounting Bracket and Hardware

Furuno 455T‑SS903 (Stainless Steel Thru‑Hull)

• Stainless Steel Thru‑Hull Transducer
