Furuno 520 LD Low Profile 50/200KHZ 10 Pin Plastic Thru Hull Transducers.
Couldn't load pickup availability
Description
Description
Furuno 520PLD & 520BLD Low Profile Thru-Hull Transducers

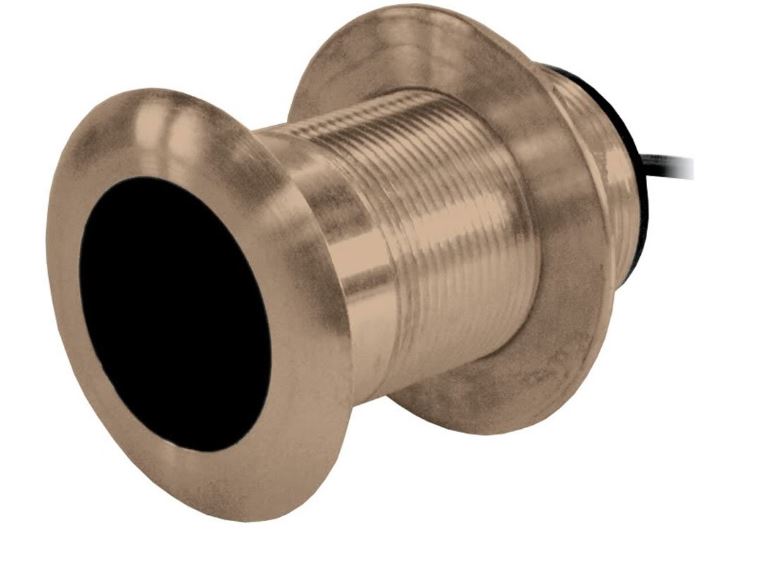

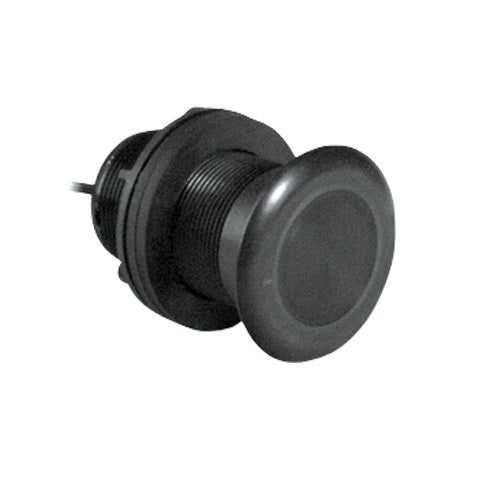

The Furuno 520PLD and 520BLD are low-profile thru-hull transducers designed for efficient underwater signal reception and depth measurement. The 520PLD features a plastic housing styled after the Airmar P319, while the 520BLD is constructed with durable bronze. Both models operate at 600 watts with dual-frequency operation of 50/200 kHz and beam angles offering wide and narrow signal coverage for versatile fishfinding.
Model: 520PLD | 520BLD
Model Overview
| Model | Power | Frequency (kHz) | Beam Angles (°) | Housing Type | Cable Length | Connector | Key Features |
|---|---|---|---|---|---|---|---|
| 520PLD | 600 W | 50 / 200 | 45 / 15 | Plastic (Airmar P319 style) | 30 ft cable | 10-Pin | Low profile plastic thru-hull, durable, dual frequency |
| 520BLD | 600 W | 50 / 200 | 45 / 15 | Bronze | 30 ft cable | 10-Pin | Low profile bronze thru-hull, robust construction, dual frequency |
Key Features
-
Power: 600 watts for reliable sonar signal strength
-
Frequency: Dual 50/200 kHz for broad and detailed scanning
-
Beam Angles: Wide 45° and narrow 15° for general coverage and focused detection
-
Low-profile design minimizes drag and installation height
-
Housing: Plastic (520PLD) styled after Airmar P319, and sturdy bronze (520BLD)
-
30-foot cable with 10-pin connector for straightforward system integration
What’s in the Box
-
Furuno 520PLD or 520BLD low-profile thru-hull transducer
-
30-foot cable with 10-pin connector
-
Installation hardware and mounting instructions
