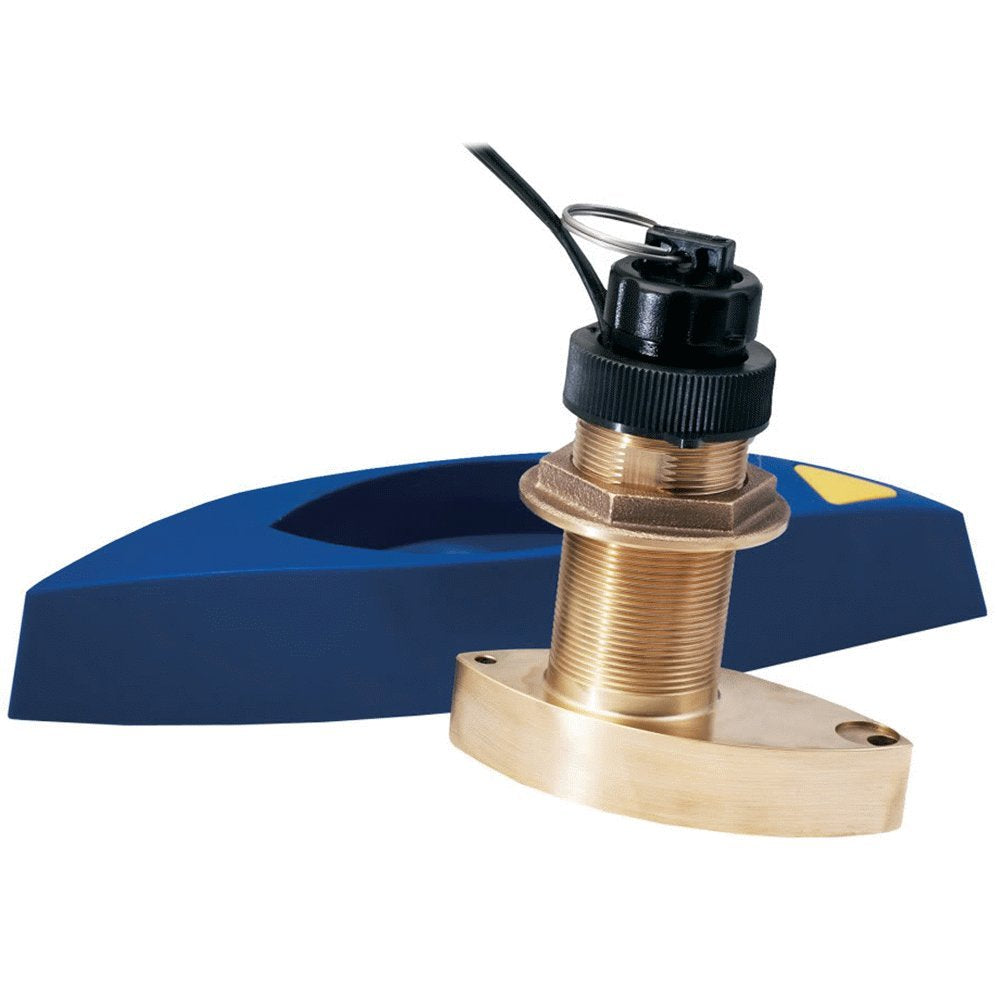

Furuno 525STID-MSD B744V 10-Pin Bronze Thru Hull Triducer with Fairing Block.
Couldn't load pickup availability
Description
Description
Furuno 525STID-MSD & 525STID-MSD7 Bronze Thru-Hull Triducers
The Furuno 525STID-MSD series are robust, bronze thru-hull triducers offering combined speed, temperature, and depth sensing in a single unit. Designed for advanced dual-frequency sonar operation, these 600 watt units operate at 50/200 kHz with 40° and 10° beam angles for wide area coverage and precise narrow beam detection. Both models come with a high-speed fairing block and a 30-foot cable with 10-pin connector, ready for integration with compatible Furuno displays.
Model: 525STID-MSD | 525STID-MSD7
Model Overview
| Model | Power | Frequency (kHz) | Beam Angles (°) | Housing Type | Cable & Connector | Key Features |
|---|---|---|---|---|---|---|
| 525STID-MSD | 600 W | 50 / 200 | 40 / 10 | Bronze | 30 ft cable with 10-Pin | Speed and temperature sensing, fairing block included |

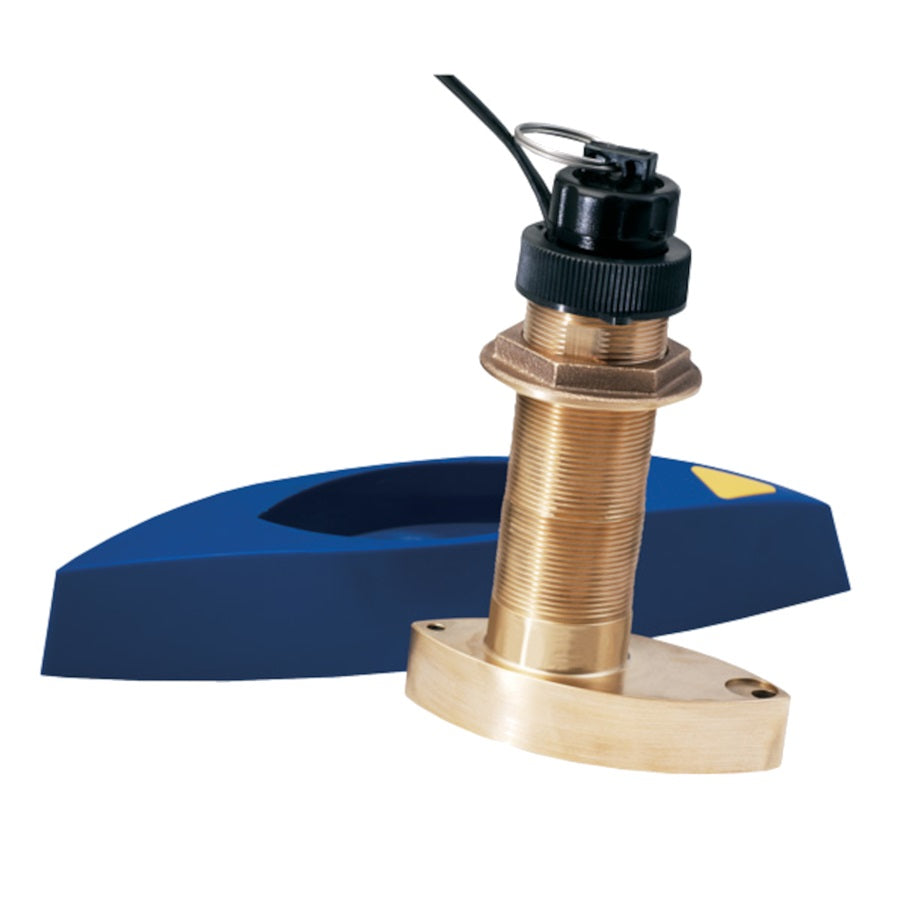

| 525STID-MSD7 | 600 W | 50 / 200 | 40 / 10 | Bronze | 30 ft cable with 10-Pin | Long stem version, speed and temperature sensing, fairing block included |
Key Features
-
Power: 600 watts for reliable sonar returns
-
Frequency: Dual 50/200 kHz with broad and narrow beam angles
-
Beam Angles: Wide 40° beam for coverage, narrow 10° beam for detailed scanning
-
Bronze thru-hull construction for durability and corrosion resistance
-
Integrated speed and temperature sensors for comprehensive data
-
Includes high-speed fairing block for improved performance at speed
-
30-foot cable with 10-pin connector for easy installation
-
Long stem design on MSD7 model to accommodate deeper shafts
What’s in the Box
-
Furuno 525STID-MSD or 525STID-MSD7 bronze thru-hull triducer
-
High-speed fairing block
-
30-foot cable with 10-pin connector
-
Installation instructions and mounting hardware
