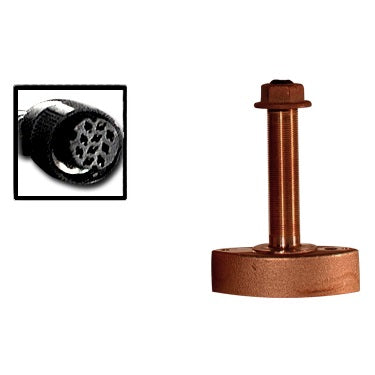

Furuno 525T-BSC & 525T-BSD Bronze Thru-Hull Depth/Temperature Transducers
The Furuno 525T-BSC and 525T-BSD are bronze thru-hull transducers with integrated temperature sensors designed for reliable dual-frequency operation. Both models offer 600 watts of power with dual frequencies at 50/200 kHz and feature wide and narrow beam angles for versatile sonar coverage. Their robust bronze housings and included cables make them suitable for a wide variety of fishing vessels and conditions.
Model: 525T-BSC | 525T-BSD
Model Overview
| Model | Power | Frequency (kHz) | Beam Angles (°) | Housing Type | Cable & Connector | Key Features |
|---|---|---|---|---|---|---|
| 525T-BSC | 600 W | 50 / 200 | 45 / 15 | Bronze | 30 ft cable with 8-Pin connector | Durable, temperature sensor, versatile beam coverage |
| 525T-BSD | 600 W | 50 / 200 | 45 / 15 | Bronze | 30 ft cable with 10-Pin connector | Durable, temperature sensor, versatile beam coverage |
Key Features
-
Power: 600 watts for strong sonar signal
-
Frequency: Dual 50 / 200 kHz, broad and narrow beam angles for wide area and detailed imaging
-
Beam Angles: Wide 45° and narrow 15° supporting both general and focused scans
-
Housing: Robust bronze construction integrating a fast-response temperature sensor
-
Cable: 30-foot cable for flexible installation
-
Connectors: Available with 8-pin (BSC) or 10-pin (BSD) connectors for compatibility with different display systems
What’s in the Box
-
Furuno 525T-BSC or 525T-BSD bronze thru-hull transducer with temperature sensor
-
30-foot cable with 8-pin or 10-pin connector depending on model
-
Mounting and installation instructions
