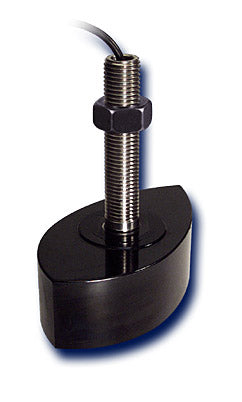

Furuno 556TID Stainless Steel 1KW W/Temp And Block.
Couldn't load pickup availability
Description
Description
Furuno 556TIDHDN & 556TIDHDD Stainless Steel 1 kW Thru-Hull Transducers
The Furuno 556TID series features robust stainless steel thru-hull transducers with integrated temperature sensors and high-speed fairing blocks. Designed for enhanced fishfinding and bottom mapping, these 1,000 watt units utilize a diplexer enabling dual-frequency operation at 50/200 kHz with beam angles of 20° and 6°, delivering broad coverage with focused resolution.
Model: 556TIDHDN | 556TIDHDD
Model Overview
| Model | Connector | Power | Frequency (kHz) | Beam Angles (°) | Housing Material | Fairing Block | Notes |
|---|---|---|---|---|---|---|---|
| 556TIDHDN | No Connector | 1,000 W | 50 / 200 | 20 / 6 | Stainless Steel | High-speed included | Requires separate cable |
| 556TIDHDD | 10-Pin | 1,000 W | 50 / 200 | 20 / 6 | Stainless Steel | High-speed included | Ready with connector |
Key Features
-
Dual-frequency operation through diplexer at 50 and 200 kHz
-
Wide (20°) and narrow (6°) beam angles for versatile sonar coverage
-
Stainless steel durable thru-hull construction for longevity
-
Fast-response water temperature sensor included
-
High-speed fairing block supplied for improved performance at speed
-
Suitable for rugged marine environments requiring high power sonar returns
What’s in the Box
-
-
Furuno 556TIDHDN or 556TIDHDD transducer with integrated temperature sensor
-
High-speed fairing block
-
10-pin connector included on 556TIDHDD; no connector on 556TIDHDN
-
