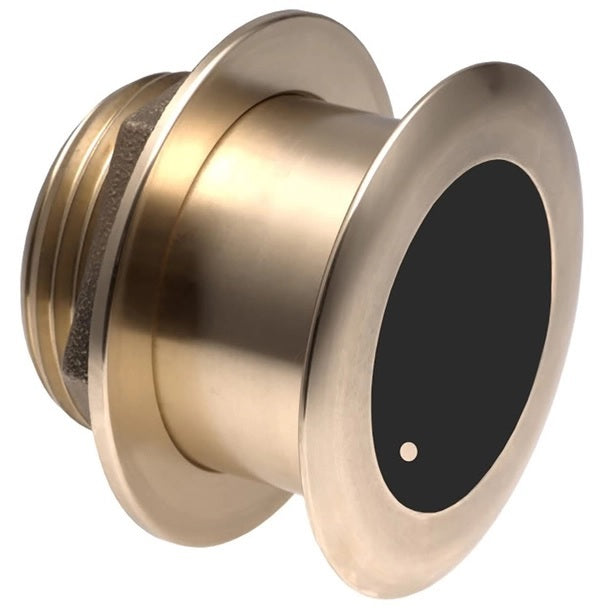

Furuno B175HW/12 Transducer High Wide Beam 12 Deg Tilt 10-Pin

Product Description

The Furuno B175HW/12 is a high-frequency wide-beam CHIRP bronze thru-hull transducer with a 12-degree tilt and 10-pin connector, optimized for marine sonar systems.

Product Overview

This transducer enhances boating and fishing applications by providing wide sonar coverage for fishfinding and bottom tracking on vessels with 8-15 degree deadrise hulls.

Key Specifications

• Frequency: CHIRP 150-250 kHz with 25-degree beam width.

• Power: 1 kW RMS for deep water performance.

• Tilt: 12 degrees for hull deadrise 8-15 degrees.

• Connector: 10-pin with 12-meter cable length.

Technical Specifications

• Functions: Depth measurement and water temperature sensing up to 1,500 feet.

• Housing: Durable bronze construction for thru-hull flush mounting.

• Beam performance: 100 kHz total bandwidth for detailed wide-area imaging.

What's in the Box

• One (1) Furuno B175HW/12 Transducer with 12m cable.
