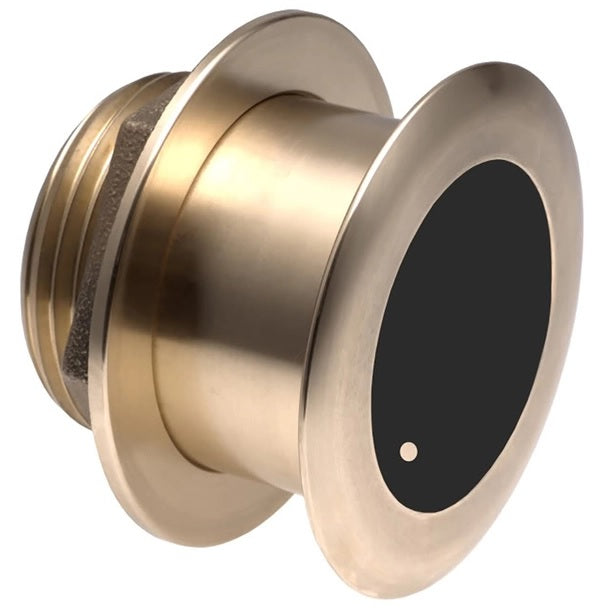

Furuno B175HW/20 Transducer High Wide Beam 20 Deg Tilt 10-Pin

Product Description

The Furuno B175HW/20 is a high-frequency wide-beam CHIRP bronze thru-hull transducer with a 20-degree tilt and 10-pin connector, designed for optimal performance on hulls with steeper deadrise angles.

Product Overview

This transducer delivers superior fishfinding and bottom-tracking capabilities for marine vessels with 16-24 degree deadrise hulls, ideal for deep-water fishing and navigation applications.

Key Specifications

• Frequency: CHIRP 150-250 kHz with 25-degree wide beam angle.

• Power: 1 kW RMS for extended depth penetration.

• Tilt: 20 degrees for hull deadrise 16-24 degrees.

• Connector: 10-pin with 12-meter cable included.

Technical Specifications

• Functions: Depth up to 1,500 feet (457m) and fast-response temperature sensing.

• Housing: Bronze thru-hull flush mount construction.

• Beam performance: 100 kHz total bandwidth for enhanced target separation.

What's in the Box

• One (1) Furuno B175HW/20 Transducer with 12m cable.
