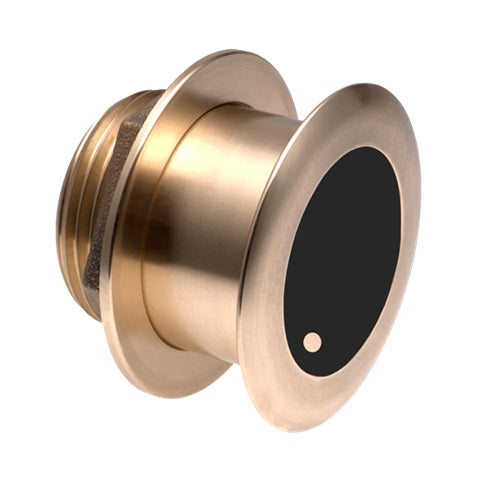

Furuno B175M/20 Transducer 85-135kHz 20 Deg Tilt 10-Pin

Product Description

The Furuno B175M/20 is a 1kW bronze thru-hull CHIRP transducer with 20° tilt, operating at 85-135kHz medium frequency for depth and temperature sensing in marine fishfinders.

Product Overview

Designed for deadrise angles of 16-24°, this tilted-element transducer mounts flush through the hull on boats, delivering superior target separation and bottom detail for fishing and navigation in mid-depth waters up to 1500 feet.

Key Specifications

• Frequency: CHIRP 85-135 kHz (50 kHz bandwidth)

• Beamwidth: 16° to 11°

• Power: 1 kW RMS

• Connector: 10-pin with 12m (39 ft) cable

Technical Specifications

• Maximum depth: 1500 ft (457 m) with fast-response temperature sensor

• Bronze housing, low-profile design for speed without cavitation

• Compatible with Furuno FCV-1150/1650, TZTouch series via 10-pin interface

What's in the Box

• B175M/20 transducer with 12m cable and 10-pin connector
