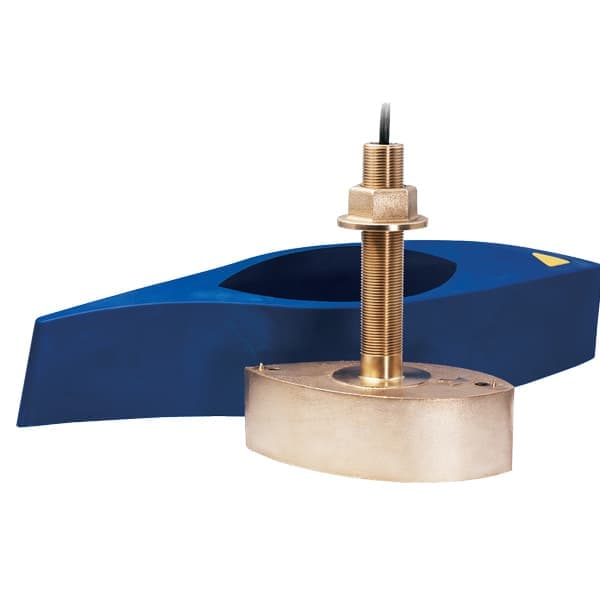

Furuno B275LHW Bronze Wide Beam CHIRP Thru-Hull Transducers.

$2,049.95

~~$2,100.00~~ $2,049.95

Sold out

-2%

Shipping calculated at checkout.

Low stock: 1 left

Connector Type: 12-pin connector Bare Wire 12-pin connector

Description

Airmar B275LHW Wide Beam CHIRP Thru-Hull Transducers

Models:

B275LHW (Bare Wire)
B275CLHW-12P (With Raymarine 11-pin Low/Dual Beam and 12-pin connector for Furuno)

The Airmar B275LHW series offers advanced wide-beam CHIRP transducers delivering superior fishfinding performance with exceptional coverage and clarity. Operating across a wide frequency band (42 kHz to 250 kHz), these transducers combine high and low frequency capabilities covering popular fishing bands (50 and 200 kHz) and more, making them broadband at their best.

The unique feature of the high-frequency band is a constant 25° wide beam across the entire frequency range (150 to 250 kHz), providing double the coverage compared to traditional high-frequency narrow-beam transducers. This results in crisper, larger return images and improved detection of fish and bottom structure, especially in the upper water column.

Ideal for boats 8 m (25’) and larger with fiberglass or wood hulls and hull deadrise up to 20° when using the included fairing block. The urethane acoustic window enhances durability and signal transmission.

Key Features

Depth & fast-response water-temperature sensor included.
Broad frequency bandwidth: 123 kHz total from one transducer.
Low frequency CHIRP: 42 kHz to 65 kHz with beamwidth narrowing from 25° to 16°.
High frequency CHIRP: 150 kHz to 250 kHz with constant 25° beamwidth for broad coverage.
Twice the bottom coverage and enhanced fish-target separation vs. narrow beam competitors.
Bronze construction with high-performance fairing block for optimal operation at speeds over 30 knots (34 mph).
Suitable for inshore and pelagic fishing, supporting depths up to 914 m (3000’).
Patented Xducer ID technology for simplified installation and automatic echosounder configuration.

Specifications

Feature	B275LHW (Bare Wire)	B275CLHW-12P (With 11-pin & 12-pin connectors)
Low Frequency	CHIRPS 42 kHz to 65 kHz	CHIRPS 42 kHz to 65 kHz
Low Beamwidth	25° to 16° (narrow beam)	25° to 16° (narrow beam)
High Frequency	CHIRPS 150 kHz to 250 kHz	CHIRPS 150 kHz to 250 kHz
High Beamwidth	25° constant beamwidth	25° constant beamwidth
Boat Size	8 m (25’) and above	8 m (25’) and above
Hull Type	Fiberglass or wood	Fiberglass or wood
Hull Deadrise	Up to 20° with fairing block	Up to 20° with fairing block
Acoustic window	Urethane	Urethane
Connector type	Bare wire	Raymarine 11-pin Low/Dual Beam + Furuno 12-pin
