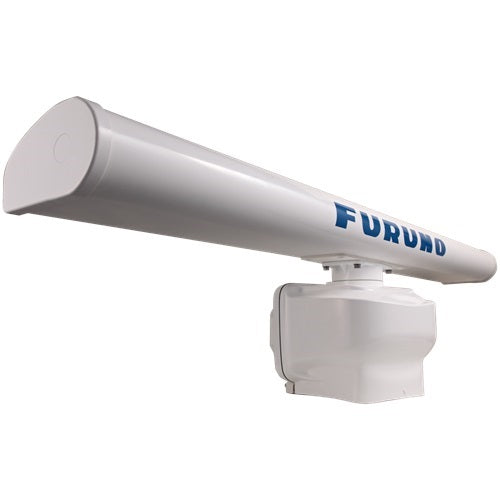

Furuno DRS25AX 25Kw X-BAND Pedestal with Antenna Series.

Furuno DRS25AX 25kW X-Band Radar

The Furuno DRS25AX "X-Class" radar represents the pinnacle of conventional marine radar technology, offering superior short- and long-range target detection up to 96 nautical miles. Equipped with a newly redesigned pedestal unit that's 20% lighter and fitted with a low-noise motor, the system delivers quieter operation with easier installation and maintenance thanks to a smart-connector cable. This 24V system (requires converter for 12V) is compatible with NavNet TZtouch, TZtouch2, and TZtouch3 series (excluding NavNet 3D and older models).

Models:
DRS25AX/3 (3.5' Antenna, no cable)
DRS25AX/4 (4' Antenna, no cable)
DRS25AX/6 (6' Antenna with 15m cable)

Notable features include:

• 25kW Power Output: for impressive range and target sensitivity.

• Fast Target Tracking™: instantly displays speed and course vectors for tracked targets to enhance situational awareness and safety.

• Bird Mode: distinguishes flocks of birds from vessel echoes, enabling identification of fish schools or clutter reduction.

• Minimum detection range of approximately 20 meters, excellent for close-quarter navigation.

• Dual range scanning, allowing simultaneous monitoring of both near and far ranges.

Available antenna options provide flexibility depending on vessel size and coverage needs:

• 3.5' antenna with 2.3° horizontal beamwidth

• 4' antenna with 1.9° horizontal beamwidth

• 6' antenna with 1.4° horizontal beamwidth
  All antennas have a vertical beamwidth of 22°.

Specifications

What’s in the Box

DRS25AX/3 (3.5' antenna, no cable)

• Scanner Unit

• Fuse ATV10A60V

• Corrosion-proof pads x 4

• Hex Nuts M12 x 8

• Spring Washers M12 x 4

• Flat Washers M12 x 4

• Hex Studs M12x70 x 4

• Installation Manual

• Mounting Template

• Environmental Data Sheet

• XN10A/3.5 3.5' Antenna

DRS25AX/4 (4' antenna, no cable)

• Same contents as above, with XN12A/4 4' Antenna

DRS25AX/6 (6' antenna, includes 15m cable)

• Same contents as above, plus

• Signal/Power Cable Assembly 15m

• XN13A/6 6' Antenna
