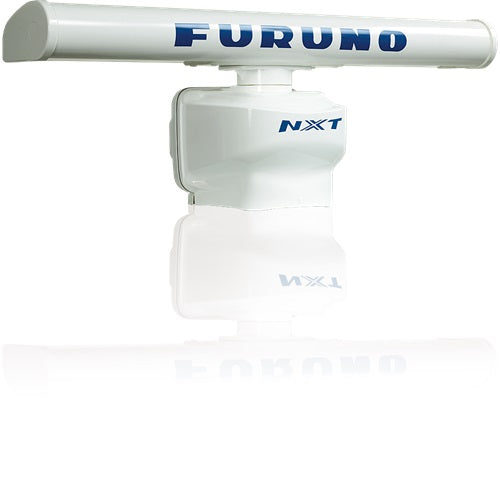

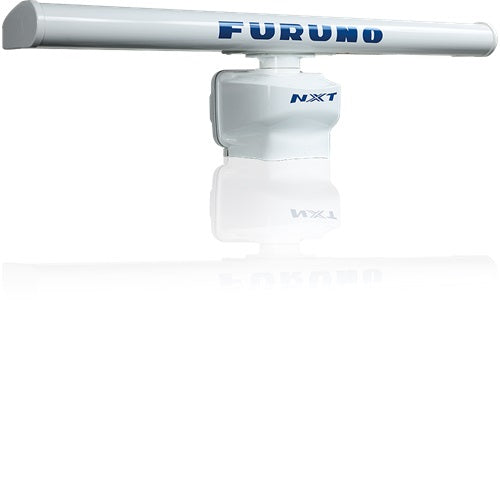

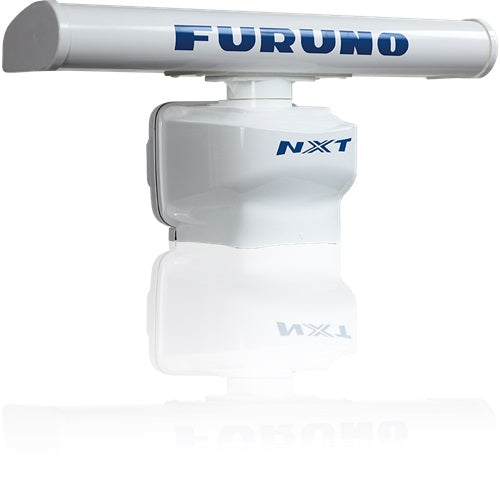

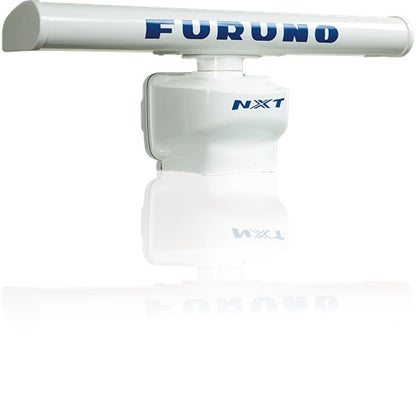

Furuno DRS6ANXT Doppler Radar Pedestal, Cable Antenna.

Furuno DRS6ANXT Solid-State Doppler Radar

The Furuno DRS6ANXT radar incorporates advanced solid-state pulse compression and Doppler technology combined with Furuno exclusive features like Target Analyzer™, Fast Target Tracking™, and RezBoost™ beam sharpening for superior performance in a compact form. It delivers exceptional target detection with rapid hazard identification and high-resolution separation of vessels and other objects at sea.

The Target Analyzer™ feature visualizes approaching vessels in red and stationary or receding vessels in green, independent of vessel speeds, aiding in collision avoidance and situational awareness. Fast Target Tracking™ allows real-time vector estimation for up to 100 targets, simplifying target monitoring. Bird Mode helps locate schools of fish by tracking surface bird activity. When RezBoost™ is set to MAX, a sharp 2° beamwidth can be achieved, enhancing radar clarity comparable to larger arrays.

This radar is ideal for integration with NavNet TZtouch, TZtouch2, and TZtouch3 systems, and runs on 12-24 VDC power.

Models:

• DRS6ANXT/3 (3.5' Open Array)

• DRS6ANXT/4 (4' Open Array)

• DRS6ANXT/6 (6' Open Array)

Key Features

• 25 W solid-state X-Band output with pulse compression Doppler technology.

• Antenna options: 3.5’, 4’, or 6’ open array for flexible coverage.

• Enhanced hazard detection with color-coded Target Analyzer™ and alarms.

• Fast Target Tracking™ and Auto Target Acquire for real-time vectoring of up to 100 targets.

• RezBoost™ beam sharpening for maximal resolution and target separation.

• Bird Mode optimizes gain settings for better fishing grounds detection via bird tracking.

• Compact and efficient design with easy installation and maintenance.

Specifications Comparison

What’s in the Box

• 10m Cable Assembly (000-033-452-00)

• Pedestal Unit (RSB137-119)

• Selected Open Array Antenna (XN10A/3.5, XN12A/4, or XN13A/6)

• Documentation
