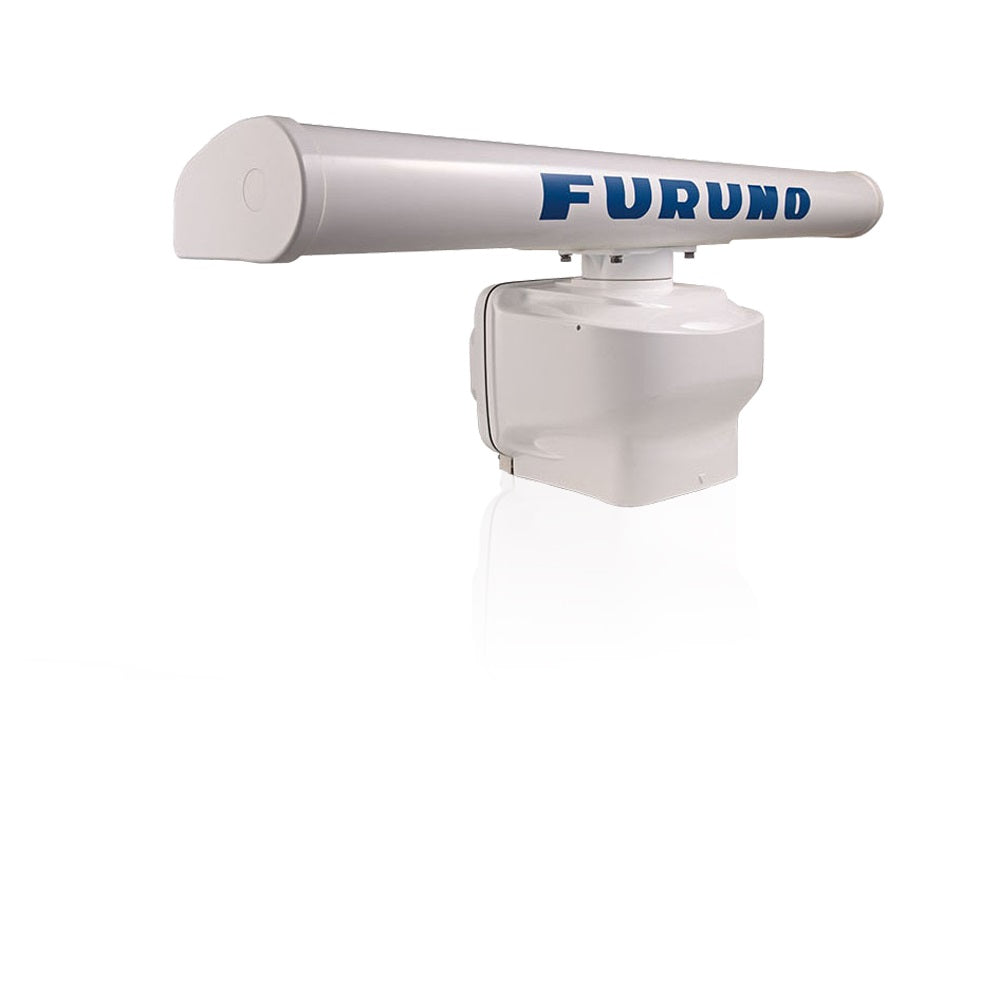

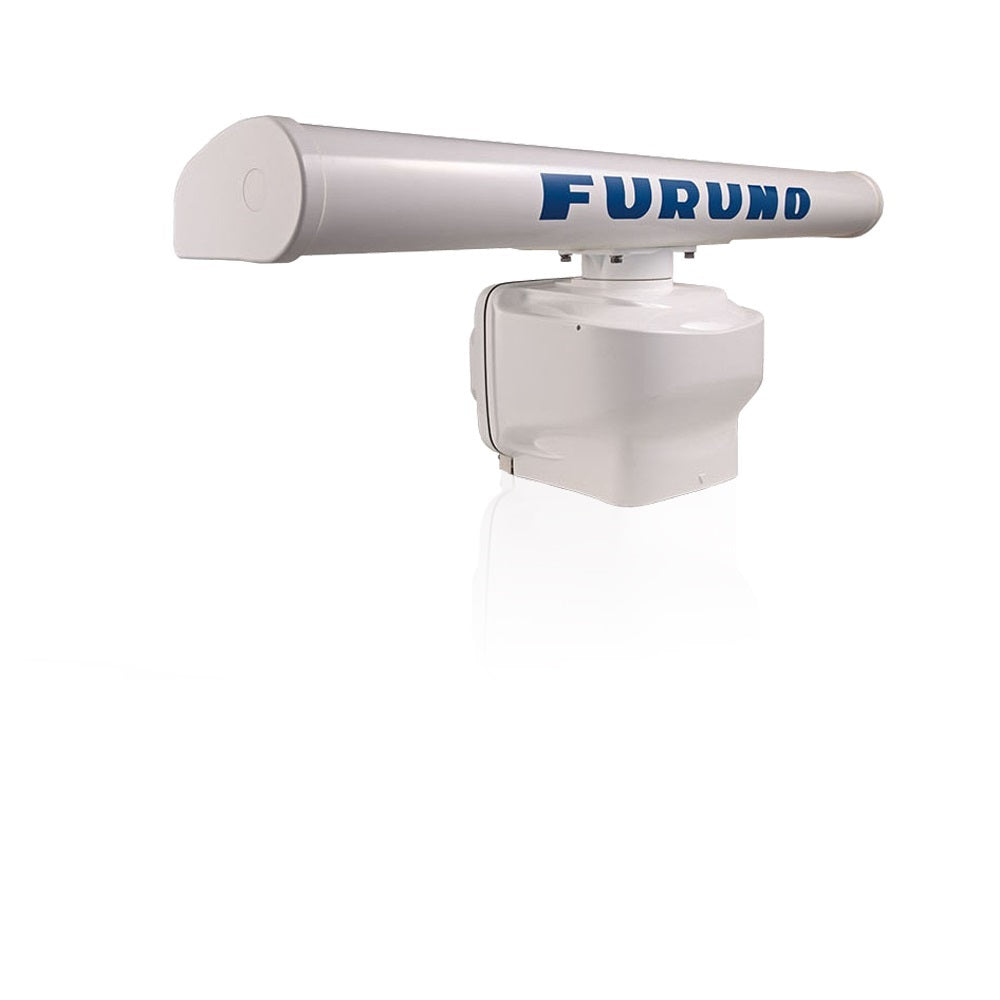

Furuno DRS6AX 6Kw X-BAND Pedes Pedestal And Cable Antenna.

Furuno DRS6AX 6kW UHD Digital Radar

The Furuno DRS6AX is an advanced solid-state digital radar combining pulse compression, Doppler technology, and exclusive RezBoost™ beam sharpening to deliver enhanced target detection across short and long ranges. This "X-Class" radar represents a significant leap in marine radar performance, offering improved minimum detection range of just 20 meters and long-range coverage up to 120 nautical miles.

The radar features Fast Target Tracking™ and Bird Mode, allowing clear detection and vectoring of moving vessels and flocks of birds, improving safety and fishing effectiveness. The redesigned pedestal unit weighs 20% less than the previous models, with a low-noise motor and a smart-connector cable simplifying installation and reducing maintenance costs.

Compatible with NavNet TZtouch, TZtouch2, and TZtouch3 systems, the DRS6AX operates on 24V power, with a converter necessary for 12V power systems.

Models:

• DRS6AX/3 (3.5' Open Array)

• DRS6AX/4 (4' Open Array)

• DRS6AX/6 (6' Open Array)

Key Features

• 6kW solid-state X-Band radar with pulse compression and Doppler technology.

• Enhanced short and long-range detection with minimum range of 20 meters and max range up to 120 nm.

• Fast Target Tracking™ for real-time speed and course vector display.

• Bird Mode for detecting and differentiating bird echoes from vessel echoes.

• Redesigned pedestal 20% lighter than previous models, with low noise motor.

• Smart-connector cable for easy installation without opening the pedestal.

• Antenna rotation speed options: 24/36/48 rpm (coupled) or fixed 24 rpm.

• Waterproof rating: IP56.

Specifications Comparison

What’s in the Box

• 15 m Cable Assembly (001-376-480-00)

• Pedestal Unit (RSB134-112)

• Antenna (XN10A/3.5, XN12A/4, or XN13A/6 depending on model)

• Installation manual and hardware
