Vendor: Furuno
Sku:
FURDST810MSF

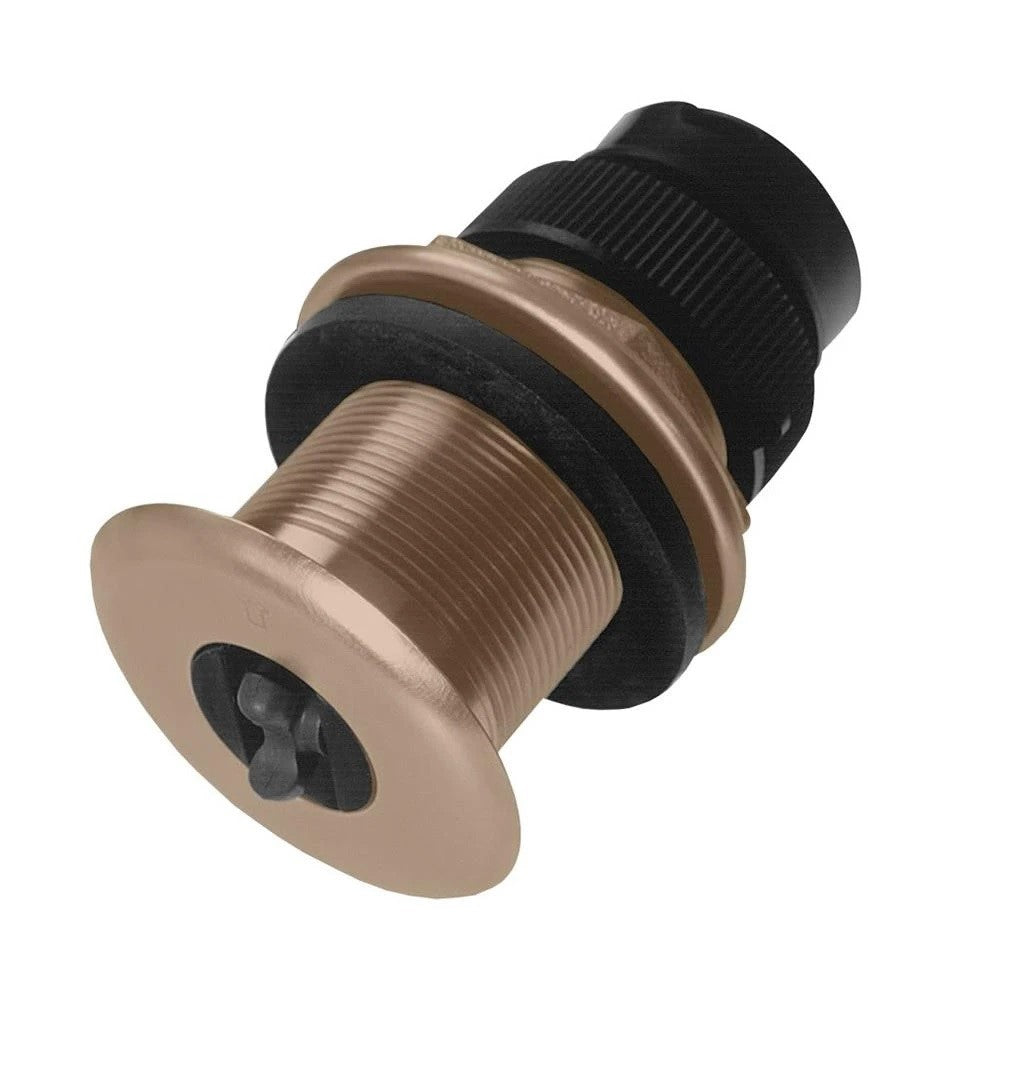

Furuno DST810MSF NMEA 2000 Airmar Smart Transducer Bronze Thru Hull
Regular price
$414.95
Regular price
Sale price
$414.95
Unit price
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
Description
Description
Furuno DST-810 active Depth, Speed, Temperature thru-Hull Bronze 235 kHz transducer.
Model: DST-810MSF
- 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
- Integrated attitude sensor for heel and trim benefits sailing and power boats
- Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
- DST810 stores configurations and delivers data to the NMEA 2000® network.
- Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.
- Popular depth sensor for shallow water performance.
Specifications
| Acoustic Window | Urethane |
| Hull Deadrise | Up to 22° |
| Data Update Rate | Depth 1X/second |
| Data Update Rate | Speed 5X/second |
| Attitude Accuracy | +/— 1° nominal after sensor calibration |
| Depth Frequency | 235 kHz |
| Minimum Depth Range | 0.5 m (1.6') |
| Maximum Depth Range | Up to 100 m (330')—NMEA 2000® |
| Speed Range | Up to 45 knots |
| Pressure Rating | 3 m (10') |
| Pulse Rate | 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile |
| Supply Voltage | 9 VDC to 16 VDC—per NMEA 2000 |
| Supply Current | <200 mA—per NMEA 2000® |
| Wireless Protocol | Bluetooth Low Energy (BLE) |
| Wireless Range | Up to 30 feet depending on mount location |
| Standard Cable Length | 6 m (20') DeviceNet—NMEA 2000® |
| Temperature Sensor Accuracy | +/-0.5°C (+/-1.8°F) |
| Temperature Sensor Range | -10°C to 40°C (14°F to 104°F) |
| NMEA 2000 Load Equivalency Number (LEN) | 3 |
What's in the Box:
- DST-810 Insert
- Bronze Housing
