Furuno DST810 NMEA 2000 Airmar Smart Transducer Thru Hull.

Furuno DST-810 Active Depth, Speed, Temperature Thru-Hull Transducers

Models:

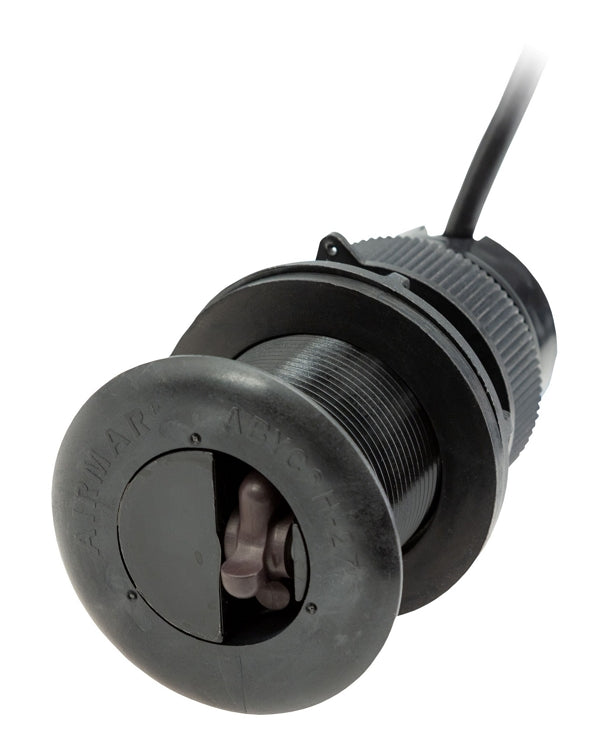

• DST-810PSF (Plastic Housing)

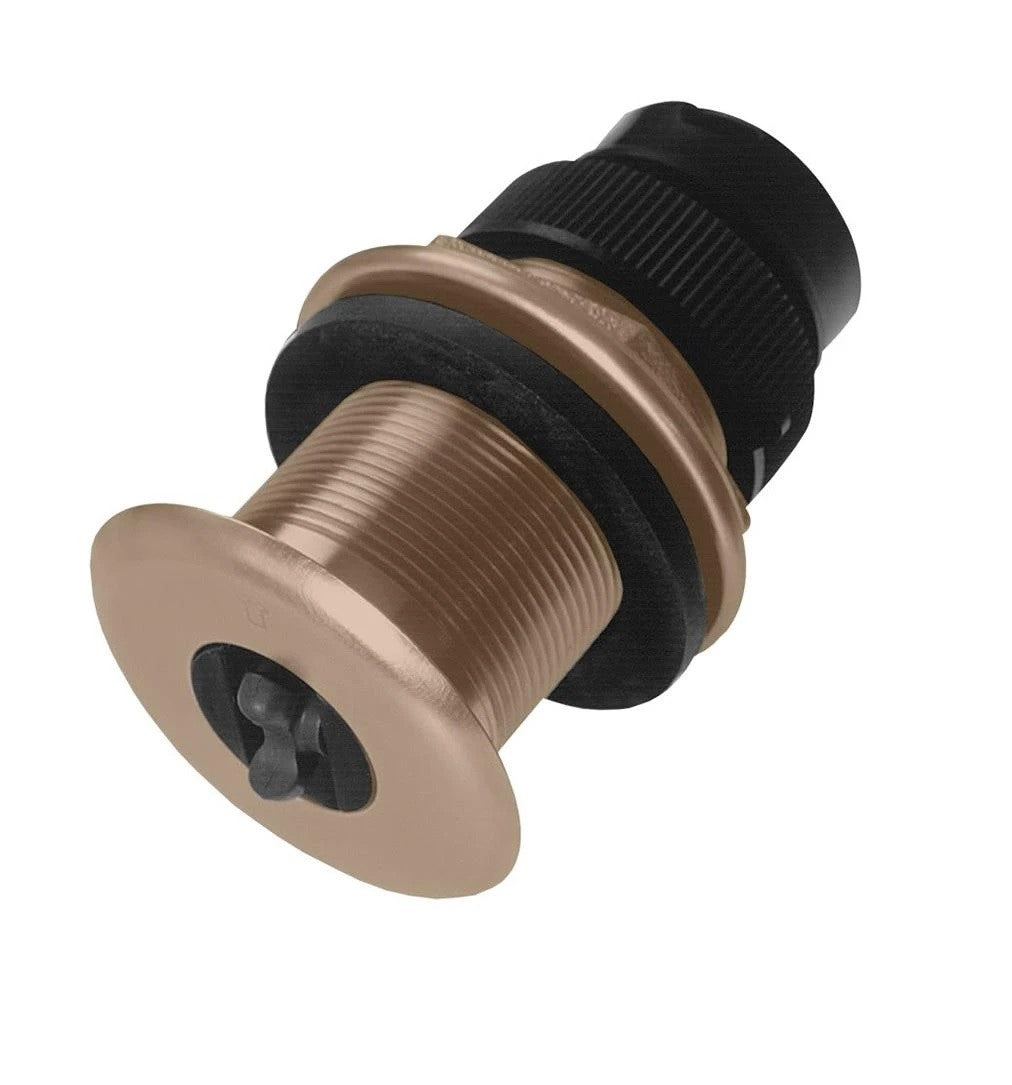

• DST-810MSF (Bronze Housing)

The Furuno DST-810 series combines depth, speed-through-water, water temperature, and integrated attitude (heel and trim) sensing in one compact multi-sensor suitable for thru-hull installation. Designed for both sailing and power boats, it provides fast, accurate data updates to NMEA 2000® networks with a 5 Hz speed output for smooth speed reporting, improving navigation and decision-making performance.

Key Features

• 235 kHz operation frequency for reliable depth sensing up to 100 m (330 ft).

• Speed data updated 5 times per second (5 Hz) for smooth speed-through-water measurements up to 45 knots.

• Integrated attitude sensor to measure heel and trim, enhancing data accuracy and aiding sailing performance.

• Advanced speed calibration supports manual speed inputs for multiple heel angles and up to 10 different speeds.

• Data delivered via NMEA 2000® network with stored configurations for reliable operation.

• Wireless Bluetooth Low Energy (BLE) connectivity enables sensor calibration and configuration via Airmar CAST app.

• Construction options: durable plastic housing (DST-810PSF) or bronze housing (DST-810MSF), both with urethane acoustic window.

• Suitable for hull deadrise angles up to 22°.

• Minimal power consumption (<200 mA) and standard NMEA 2000 Load Equivalency Number (LEN) of 3.

Specifications

What’s in the Box

DST-810PSF (Plastic Housing)

• DST-810 Insert

• Plastic Housing

DST-810MSF (Bronze Housing)

• DST-810 Insert

• Bronze Housing
