Furuno DT- Depth and Temperature Smart Sensors.

$395.00

~~$395.00~~ $395.00

Sold out

Shipping calculated at checkout.

Low stock: 1 left

Model: Bornze Plastic Bornze

Description

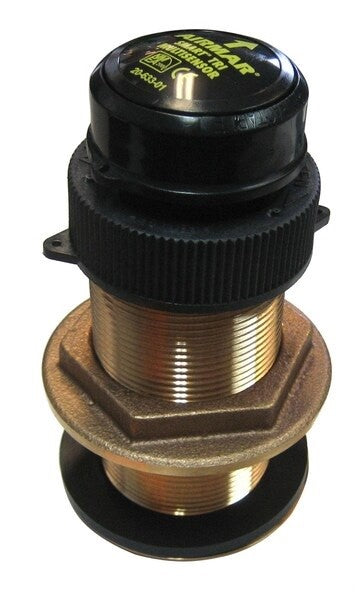

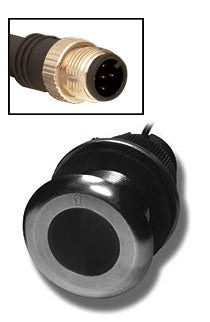

Furuno DT-800PSF and DT-800MSF Depth and Temperature Smart Sensors

The Furuno DT-800PSF and DT-800MSF are advanced multipurpose depth and temperature transducers designed for compact thru-hull installation. Both models incorporate Airmar’s exclusive broadband ceramic technology, delivering precise depth readings and fast temperature response to meet the demands of modern marine electronics systems.

Model Overview

Feature	DT-800PSF	DT-800MSF
Model Number	DT-800PSF	DT-800MSF
Housing Type	Molded Plastic P17	Bronze
Frequency	235 kHz	235 kHz
Power Rating	NMEA 2000 Device	100 W RMS
Maximum Depth	Designed for wide beam - no exact specified	Up to 180 m (600 ft)
Min Sounding Depth	Not specified	0.5 m (1.6 ft)
Temperature Sensor Accuracy	±1°C (±1.8°F)	±0.2°C (±0.1°F)
Cable Length	6 m with 5-pin NMEA 2000 connector	6 m with NMEA 2000 connector
Weight	Lightweight, near-flush design with 5 mm protrusion	1.5 kg (3.4 lb)
Beam Pattern	Wide fore-aft, fan-shaped beam for high deadrise hulls	Broadband ceramic element for improved resolution
Operating Voltage	12VDC system, <40 mA	10-25 VDC, 40 mA supply current
Installation Type	Retractable thru-hull with self-jacking cap	Thru-hull bronze housing
NMEA 2000 Load Equivalent Number (LEN)	4	4

Key Features

DT-800PSF: Compact, retractable smart sensor with near-flush plastic housing minimizes drag; wide angle beam suitable for high deadrise and sailboats
DT-800MSF: Bronze housing with broadband ceramic element and higher precision temperature reading, providing quick and accurate depth/temperature data
Both models support NMEA 2000 connectivity for seamless data integration
Depth and temperature sensors are easily removable for servicing or storage
Self-jacking cap on DT-800PSF for easier insert removal
