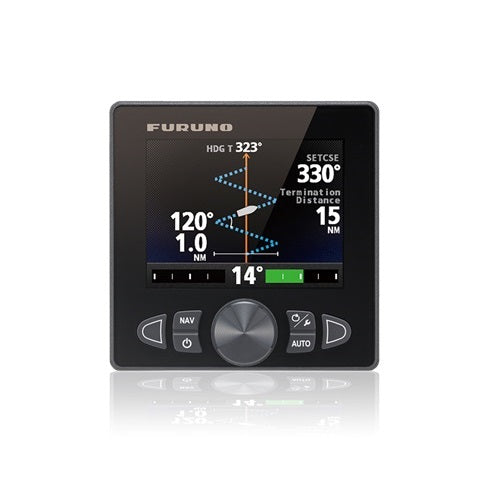

Furuno FAP7011C Control With 15m cable

Product Description

The Furuno FAP7011C is a 4.1-inch color LCD control unit for the NAVpilot-711C autopilot system, supplied with a 15-meter cable and terminator plug for second station or extension installations.

Product Overview

In marine autopilot applications on boats, this control head provides helm or flybridge operation of NAVpilot-711C systems, supporting self-learning steering modes (Auto, Dodge, Turn, Nav, Wind, FishHunter) with adaptive algorithms for precise course-keeping in varying sea conditions.

Key Specifications

• Display: 4.1-inch TFT color LCD (320x240 QVGA)

• Cable: 15 meters with terminator plug

• Waterproof: IP56 rating

• Power: 12-24 VDC (via processor unit)

Technical Specifications

• Supports up to 6 control units on CAN bus network; NMEA0183 (2 ports) and CAN bus (1 port) for GPS, wind, depth integration.

• Steering modes include STBY, Auto, Navigation (XTE ±18'), course change 1-30°/s, rudder limits 10-45°.

• Environmental: -15°C to +55°C, 95% RH at 40°C, IEC 60945 vibration; N2.5 color scheme.

What's in the Box

• FAP7011C Control Unit

• 15m dedicated cable assembly

• Terminator plug
