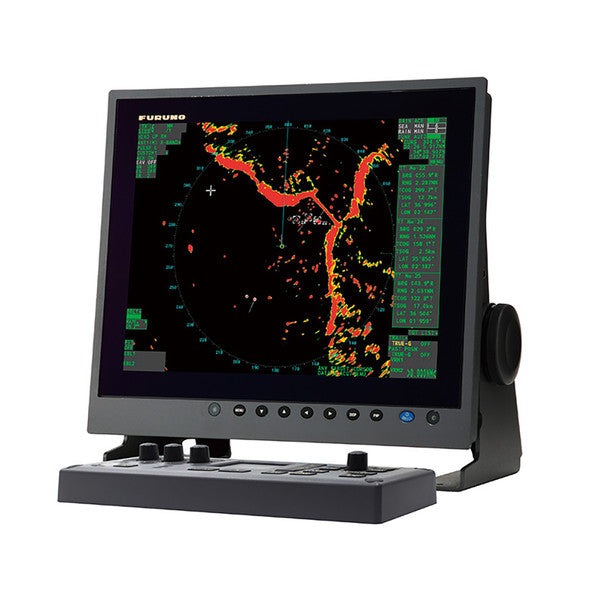

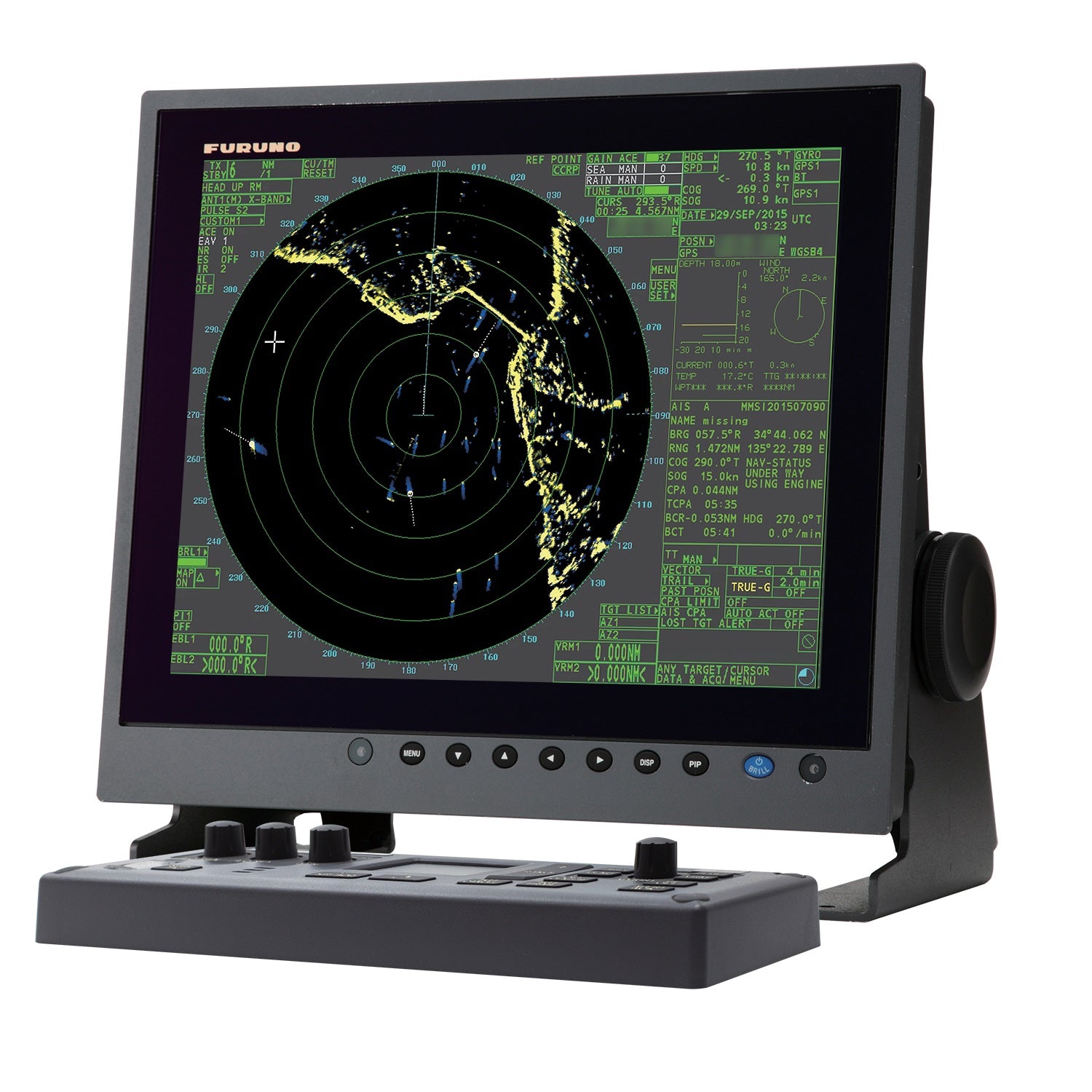

Furuno FAR1500 Series X‑Band Black Box Radar Systems Display (Requires Cable and Antenna.)

Furuno FAR1500 Series X‑Band Black Box Radar Systems

Models: FAR1513 | FAR1523

The Furuno FAR1500 Series sets a new standard for commercial‑grade radar systems in a compact black‑box design. Built for professional navigation and safety, these radars combine powerful transmission, intuitive control, and enhanced target recognition technologies to deliver outstanding situational awareness even in harsh conditions.

Equipped with a modern control unit featuring dedicated gain, sea, and rain clutter knobs, a RotoKey, and touchscreen interface, operators can quickly adjust and optimize image clarity. The ACE (Automatic Clutter Elimination) mode automatically tunes suppression filters and gain for real‑time optimization in calm, rough, or rainy conditions.

The Target Analyzer function identifies target motion type and relative threat through dynamic color differentiation, helping users instantly distinguish between stationary, moving, and approaching vessels. Coupled with fast ARPA tracking and color‑coded speed vectors, this radar provides precise navigation confidence.

Offered in 12 kW and 25 kW transmitter versions, both systems operate in the X‑Band frequency and support 4 ft or 6 ft open‑array antennas (sold separately), delivering detection ranges up to 96 nautical miles.

---

Available Models

• Furuno FAR1513 – 12 kW Transmitter, 96 NM Range Black Box Radar

• Furuno FAR1523 – 25 kW Transmitter, 96 NM Range Black Box Radar

---

Key Features

• Compact black‑box design for professional or vessel retrofit installations

• Simple operation via touchscreen with RotoKey and dedicated manual controls

• ACE (Auto Clutter Elimination) for instant image optimization

• Target Analyzer with multi‑color display for motion and threat differentiation

• ARPA target tracking with vectors for speed and course of selected targets

• X‑Band operation for high‑definition target returns and coastal clarity

• Range up to 96 NM with 4 ft or 6 ft open‑array antenna (options sold separately)

• Rugged and reliable design for commercial and offshore applications

---

Model Comparison

---

What’s in the Box

FAR1513

• RPU024/1513 Radar Processor

• RCU028 Control Unit

• RSB0070‑086A 12 kW Gearbox

FAR1523

• RPU024/1523 Radar Processor

• RCU028 Control Unit

• RSB0070‑087A 25 kW Gearbox

(Antenna and cables sold separately)
