Furuno Color LCD Fishfinder 1 2 Or 3KW.

Furuno FCV295 & FCV1150 Color LCD Fishfinders

The Furuno FCV295 and FCV1150 are professional-grade color digital sounders designed to meet the needs of various fishing operations, from recreational to commercial. Both models feature advanced features for crystal-clear underwater imaging, solid-state performance, and user-friendly operation.

Model:

Furuno FCV295

• Display: 10.4" bonded 'fogging-free' color LCD

• Resolution: 640 × 480 pixels

• Color Depth: 8, 16, or 64 colors (echo strength dependent)

• Power Output: Selectable 1, 2, or 3 kW

• Frequency: User-selectable between 28 and 200 kHz

• Gain Control: Post-processing gain adjustment affecting all echo displays

• Special Features: White Edge™ bottom contour tracing, Furuno Digital Filter for noise reduction and sharp target definition, Auto transmission rate adjustment in varying water depths

• Depth Range: Up to 1,200 m (4,000 ft) depending on transducer

• Power Supply: 12–24 VDC

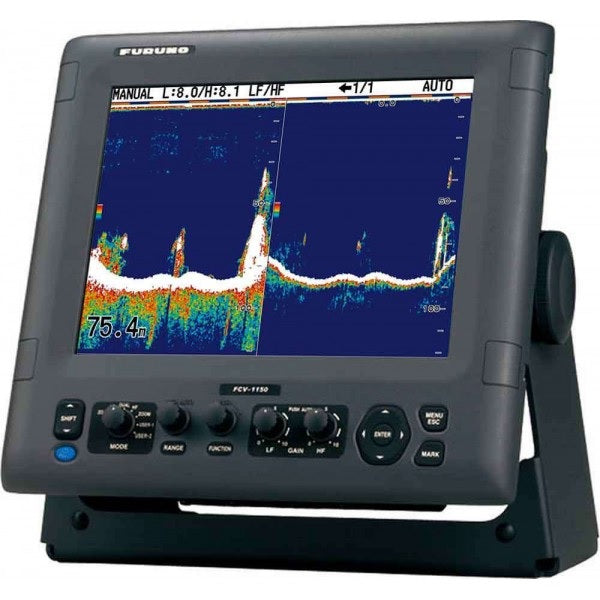

Furuno FCV1150

• Display: 12.1" high-brightness color LCD with AR coated and anti-polarized sunglass filter

• Resolution: WXGA 1280 × 800 pixels

• Color Depth: Same as FCV295

• Power Output: Selectable 1, 2, or 3 kW

• Frequency: User-selectable between 28 and 200 kHz

• Additional Features: Heave compensation for stable imaging in heavy seas, two user-programmable display modes, compatibility with Furuno Satellite Compass for motion compensation

• Depth Range: Up to 1,200 m (4,000 ft) depending on transducer

• Power Supply: 12–24 VDC, max 50 W

Comparison Table

What’s in the Box

• Fishfinder unit with display

• Power cable assembly

• Transducer adapter cable

• Mounting fixtures and sponges

• LCD cleaning cloth

• Operator's manual and installation guide
