Furuno FCV Series TruEcho CHIRP™ Fish Finders

The Furuno FCV Series combines cutting‑edge TruEcho CHIRP™ technology, RezBoost™ digital signal enhancement, and intuitive operation in powerful stand‑alone fish finders. Both models deliver unmatched target clarity and depth discrimination, revealing fish, structure, and bottom composition with remarkable accuracy.

With Furuno’s proven TruEcho CHIRP™, the system transmits across a continuous range of frequencies (40 – 225 kHz) for crisp target returns and superior separation of fish from the seabed. The new Color Expansion feature broadens the color palette for distinguishing bottom structure and fish near it at a glance. ACCU‑FISH™ and Bottom Discrimination modes provide detailed insight into fish size, depth, and seafloor type.

The FCV Series also introduces wireless second‑display support, new high‑visibility color palettes, and configurable alarms. The FCV800 adds Bottom Hardness Output and TLL (Target Lat/Lon) integration with compatible Furuno plotters, making it ideal for professional or semi‑commercial fishermen who demand detailed seafloor intelligence.

---

Models:

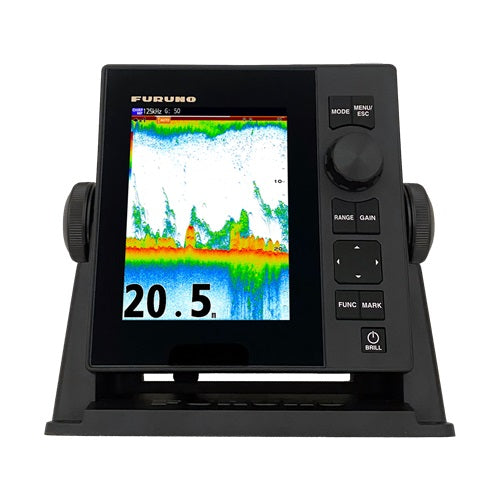

• Furuno FCV600 – 5.7 inch TruEcho CHIRP™ Fish Finder

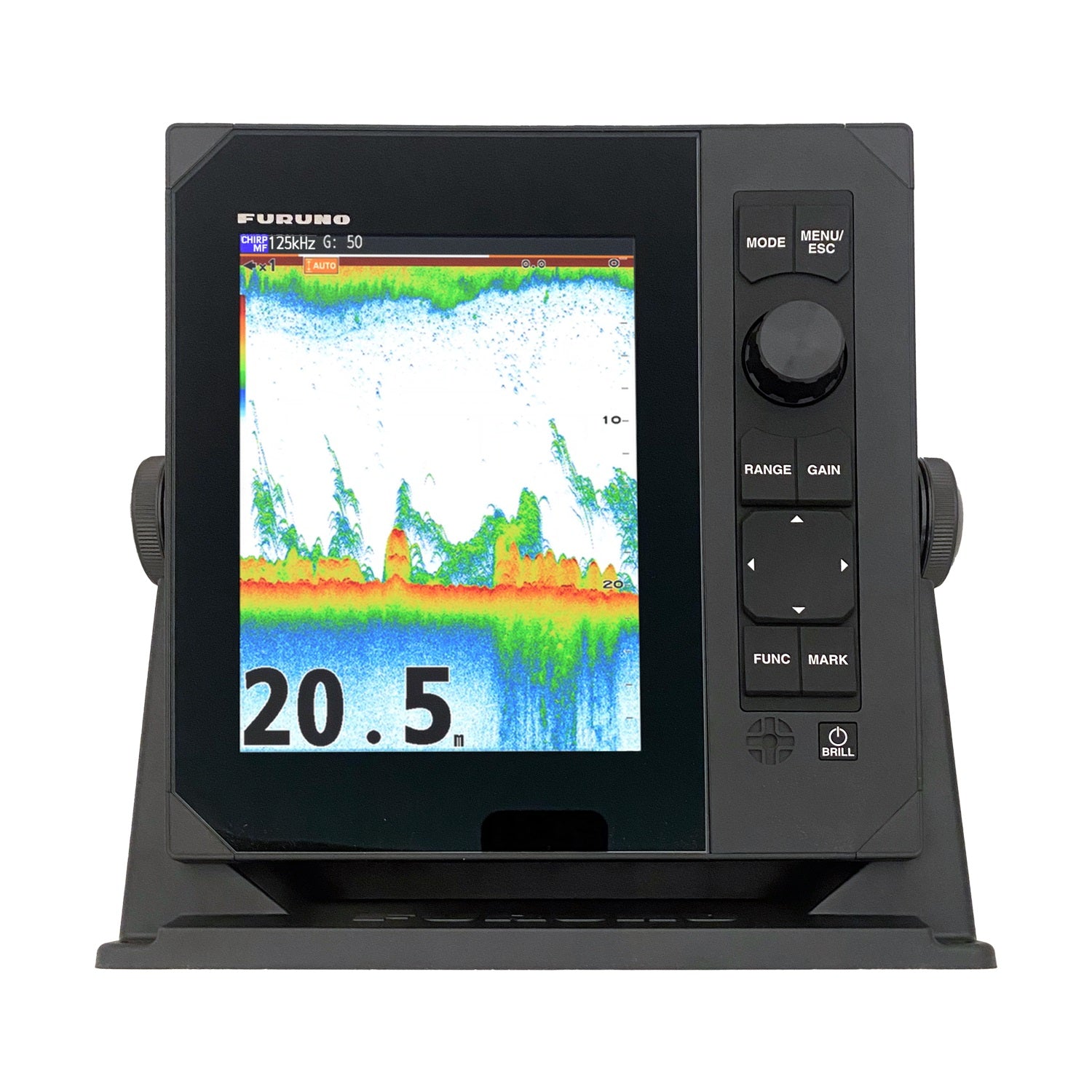

• Furuno FCV800 – 8.4 inch TruEcho CHIRP™ Fish Finder

---

Key Features

• TruEcho CHIRP™ wideband (40 – 225 kHz) for enhanced clarity and detail

• RezBoost™ for improved resolution on CW transducers

• ACCU‑FISH™ fish size and depth identification

• Bottom Discrimination (Rock, Sand, Gravel, Mud)

• Color Expansion for clear separation of fish and bottom structure

• Wireless connectivity for remote second display

• White Line function to highlight bottom edges

• Configurable alarms: depth, fish echo, speed, arrival and more

• Fast pulse rate (3,000 PRR/minute) for real‑time echo updates

• New Sunlight and Yellow color palettes

• 12 – 24 V DC operation for versatile installation

Additional for FCV800:

• Bottom Hardness Output (for TZ Professional / Olex plotters)

• TLL (Target Lat/Lon) output for chart plotter integration

---

Model Comparison

---

What’s in the Box

FCV600

• FCV600 Display Unit

• Display Cover

• Mounting Bracket and Knobs (pair)

• 2 m Power/Data Cable

• Self‑tapping Screws (5×20 mm × 4)

• LCD Cleaning Cloth

• 3 A Glass Fuse

• Installation Manual

FCV800

• FCV800 Display Unit

• Display Cover

• Mounting Bracket and Knobs (pair)

• 2 m Power/Data Cable

• Self‑tapping Screws (5×20 mm × 4)

• LCD Cleaning Cloth

• 3 A Glass Fuse

• Installation Manual
