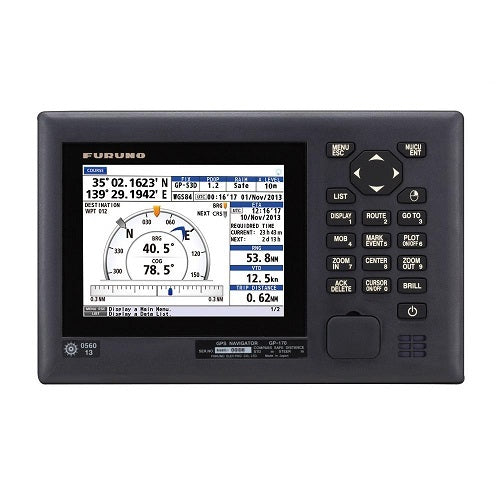

Furuno GP170D 5.7in Colour DGPS/ GPS Imo Approved.

$3,195.00

~~$3,195.00~~ $3,195.00

Sold out

Shipping calculated at checkout.

Low stock: 1 left

Option: DGPS DGPS GPS

Description

Augmentation for enhanced positioning precision: GP170D utilizes SBAS and DGPS; GP170 uses SBAS only.
Fully compliant with IMO MSC. 114 (73) standards and IEC 61108-4 certification for maritime GPS/DGPS.
High update rate of 10 Hz (0.1 second) allows smooth and steady own ship tracking.
Front panel USB port enables export/import of routing data, menu, and user settings.
BAM (Bridge Alert Management) ready for integrated alert handling.
LAN interface supports efficient integration into bridge systems (IEC 61162-450).
Simplified menu operation and enhanced route planning and management functions.
Utilizes a newly designed GPS chip and antenna for enhanced stability and precision, with noise rejection including anti-jamming and multi-path mitigation (improved with GPA020S/GPA021S antennas).
Multiple display modes: Plotter, Course, Highway, Data, and Integrity, with the Integrity mode providing satellite skyplot, GNSS/SBAS signal status, signal strength, SNR, and beacon station details.
Provides alerts for differential positioning interruptions, HDOP overshoot, positioning failures, beacon signal loss, antenna faults, and more.
Additional notices for arrival, anchor watch, cross-track error (XTE), speed, and trip data.
Integrity indication status: Safe, Unsafe, Caution.

Specification	GP170D IMO Color DGPS	GP170 IMO Color GPS
GPS Channels	12	12
SBAS Channels	2	2
Accuracy	GPS: ≤10 m; DGPS: ≤5 m; WAAS: ≤3 m; MSAS: ≤7 m (2 drms, HDOP <4)	GPS: ≤10 m; WAAS: ≤3 m; MSAS: ≤7 m (2 drms, HDOP <4)
Tracking Velocity	Up to 1,000 knots	Up to 1,000 knots
Position Fixing Time	90 seconds (cold start)	90 seconds (cold start)
Position Update Rate	1 second standard; 0.1 second max	1 second standard; 0.1 second max
Display	5.7" color LCD; 640 x 480 resolution; 700 sc/m2 brightness	5.7" color LCD; 640 x 480 resolution; 700 sc/m2 brightness
Display Modes	Plotter, Highway, Course, Data, Integrity	Plotter, Highway, Course, Data, Integrity
Memory	1,000 ship track points w/ comments; 2,000 waypoints; 100 routes (up to 1,000 waypoints each)	Same
Alert Types	Positioning interruptions, HDOP overshoot, position failure, beacon loss, antenna fault	Same
Integrity Indication	Safe, Unsafe, Caution	Safe, Unsafe, Caution
Ports	2 serial (In/Out), 1 output IEC 61162-1, 1 In/Out IEC 61162-2; 1 Ethernet IEC 61162-450; 1 front-panel USB	Same
Power Input	12-24 V DC	12-24 V DC
Dimensions (W x H x D)	9.84" x 6.29" x 3.5"	9.84" x 6.29" x 3.5"
