Furuno MCU00 Remote Keypad Series.

Furuno Remote Control Units for NavNet TZtouch Series

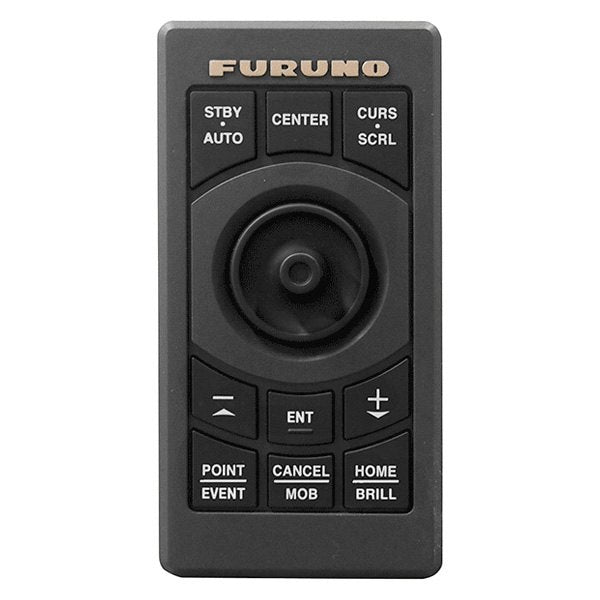

The Furuno MCU002 is a compact, waterproof remote control designed for use with NavNet TZT9, TZT14, and TZT Black Box (BB) displays, providing a tactile alternative to touchscreens. It features a joystick capable of 8-directional movement and push functions, plus 10 dedicated hardware keys for controlling nearly all TZtouch system functions. The MCU002 also supports NavPilot 700 autopilot control when integrated with NavNet TZtouch. It connects via USB and can be flush-mounted.

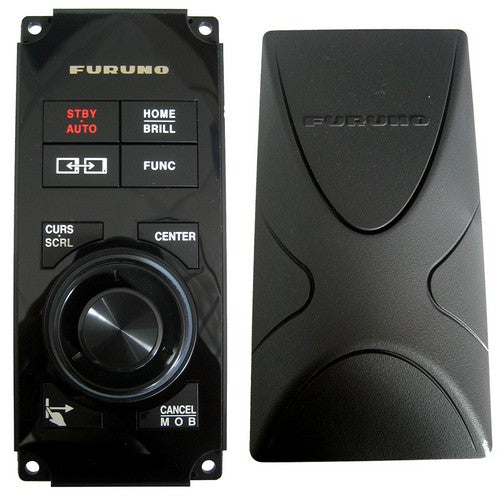

The MCU004 remote is a more advanced unit designed for NavNet TZtouch2, capable of controlling up to four MFDs via "Active Display" switching. It combines a joystick with a full-function RotoKey controller for intuitive zoom and menu navigation, and supports edge-swipe gestures. It has multiple buttons with dual functions, including home, display brilliance, vessel center, and a programmable shortcut key. A built-in buzzer provides audible alarm notifications. Connectivity is via a 3-meter USB cable, and its sleek piano-black finish complements TZtouch2 displays.

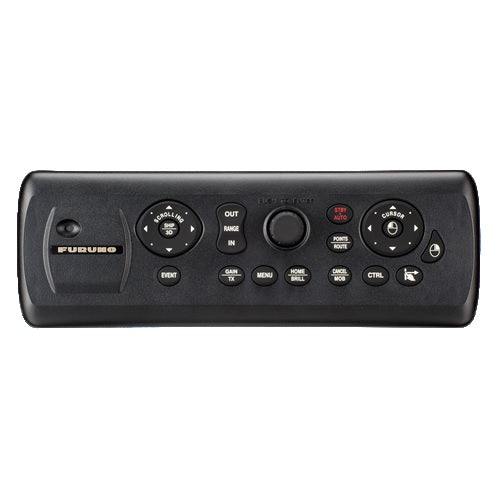

The MCU005 is a full keyboard designed specifically for models TZTL12F, TZTL15F, and TZT2BB, not compatible with NavNet TZtouch or NavNet 3D. It extends control capabilities with a familiar keyboard interface.

Models:

• MCU002 Remote Keypad

• MCU004 Remote Control

• MCU005 Remote Keyboard

Key Features Comparison

What’s in the Box

MCU002

• MCU002 Remote Control Unit

• Flush Mounting Gasket

• Mounting Screws

• User Manual

MCU004

• MCU004 Remote Control Unit

• 3-meter USB Cable

• User Manual

MCU005

• MCU005 Keyboard Unit

• USB Cable

• User Manual
