Furuno MU-HD LCD Display Color LCD Monitors.

Furuno MU‑HD Series Marine LCD Monitors

The Furuno MU‑HD Series represents Furuno’s signature quality in rugged marine displays designed for professional navigation, sonar, and radar systems. Engineered for clarity, durability, and adaptability, both models feature high‑brightness (1,000 cd/m²) TFT LCD panels with anti‑reflective (AR) glass filters to minimize glare in bright sunlight and ensure sharp visibility under any conditions.

The bonded LCD and glass construction ensures long‑term fog‑free performance, ideal for fly‑bridge or open‑deck installations. With vivid color reproduction, wide viewing angles, and extended input compatibility (HDMI, DVI‑D, RGB, and Composite Video), the MU Series integrates seamlessly with Furuno’s Black Box Radar, Sonar, Sounder, or NavNet systems. It can also display sources like security cameras, DVD players, and onboard computers for multi‑purpose use.

Models:

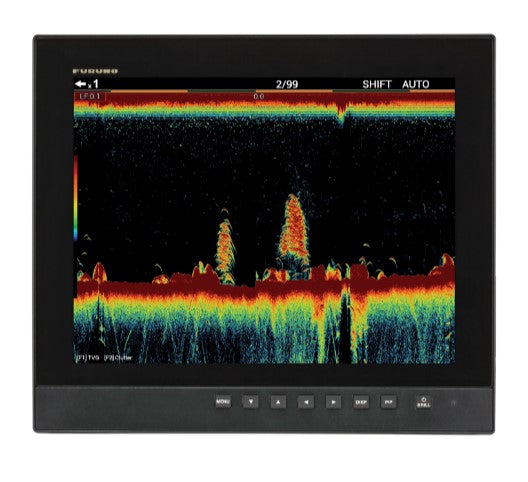

• Furuno MU152HD – 15″ Marine LCD Monitor (XGA resolution)

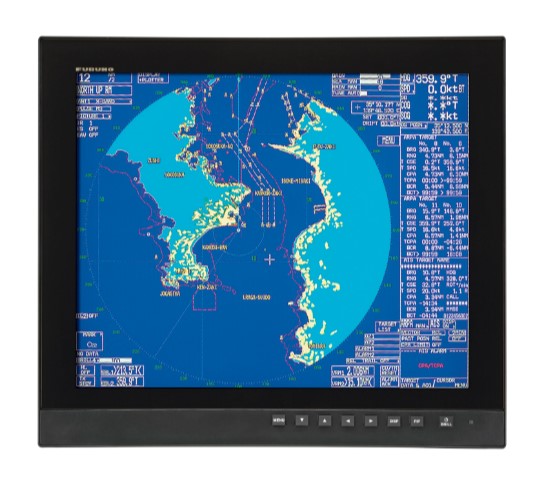

• Furuno MU192HD – 19″ Marine LCD Monitor (SXGA resolution)

Key Features

• High‑brightness (1,000 cd/m²) color TFT LCD panel

• Anti‑reflective glass filter reduces glare and improves contrast

• Bonded LCD and glass design ensures fog‑free operation

• Wide viewing angles and sunlight‑readable performance

• Multiple video input interfaces: HDMI, DVI‑D, RGB, Composite Video

• Compatible as main or remote display for Radar, Sonar, Sounder, NavNet systems

• Supports auxiliary devices (security cams, DVD, computers, etc.)

• Operates from 12 – 24 V DC input

Model Comparison

What’s in the Box

MU152HD (15″ Model)

• MU152HD LCD Display

• Hard Cover

• Fuse (5 A 125 V × 3)

• Mount Metal 15 (2)

• Wing Nuts (6), Wing Bolts (6)

• Screw Protectors (6), Washer Head Screws (12)

• Attachment Cover 15 (2)

• Fmount Sponge H15 (2), Fmount Sponge V15 (2)

• Power Cable Assembly

• Cable Ties (3)

• LCD Cleaning Cloth

• Slide Switch Setting Guide

• Flush Mounting Template

MU192HD (19″ Model)

• MU192HD LCD Display

• Hard Cover

• Fuse 125 V 5 A (3), Fuse 125 V 10 A (3)

• Mount Metal 19 (2)

• Wing Bolts (6), Wing Nuts (6)

• Screw Protectors (6), Washer Head Screws (12)

• Attachment Cover 19 (2)

• Power Cable Assembly

• Cable Ties (3)

• Fuse Label, Change of Fuse Sheet

• Slide Switch Setting Guide

• Flush Mounting Template
