Furuno NavPilot 300 Autopilot Systems.

Furuno NavPilot 300 Autopilot Systems

Models:

NAVPILOT 300 – Autopilot core pack (requires drive & heading input)
NAVPILOT 300/PG – Autopilot pack with PG700 heading sensor (requires drive)

Product Description

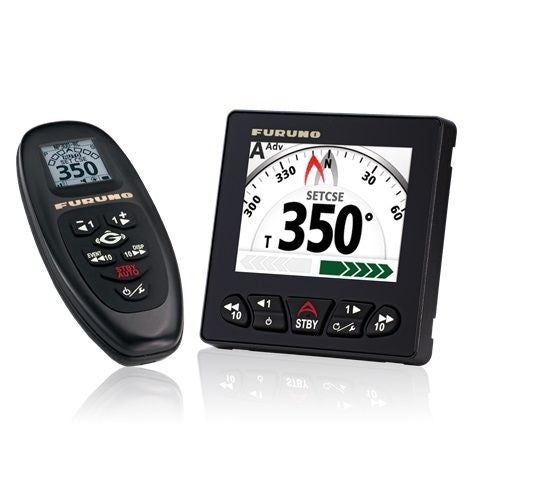

Furuno NavPilot 300 is a compact 1-DIN autopilot with a 4.1" color IP56 display, designed for planing and semi-displacement boats 24–50 ft with one to four outboards. Fantum Feedback software eliminates the need for a rudder feedback unit on outboard/sterndrive systems, simplifying installation while adaptive learning continually refines steering performance from slow trolling to 60+ knots. Both packs include the Bluetooth Gesture Controller for point-and-steer control from up to 10 m away and support NMEA 2000 (including Heartbeat PGN) for network integration. The /PG version adds a PG700 heading sensor for a complete heading solution.

Key Features

• 1-DIN 4.1" sunlight-viewable color display (up to 3 control heads total)

• Navigation modes: Auto, Advanced Auto, SABIKI, Nav/Route tracking, FishHunter, Highway

• SABIKI mode for controlled astern drift while compensating for wind and tide

• FishHunter maneuvers: zig-zag, orbit, figure 8, spiral, square around a target (also usable for MOB)

• Fantum Feedback (no rudder feedback on outboards/sterndrives) and self-learning adaptive software

• NMEA 2000 certified, pigtail cabling for simplified install, IP56 display protection

Comparison Table

What’s in the Box

NAVPILOT 300:

• FAP3011 – Control Unit

• FAP3012 – Processor

• GC001 – Gesture Controller

NAVPILOT 300/PG:

• FAP3011 – Control Unit

• FAP3012 – Processor

• GC001 – Gesture Controller

• PG700 – Heading Sensor
