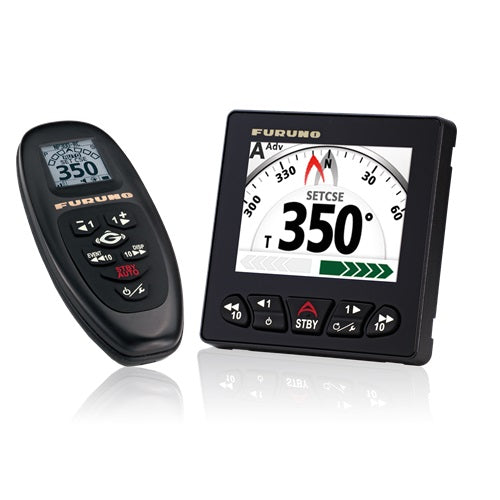

Furuno NAVPILOT300 Autopilot With PG700 and PUMPOCT.

$2,995.00

~~$2,995.00~~ $2,995.00

Sold out

Shipping calculated at checkout.

Low stock: 1 left

Pump Volume: 1.0Liter 1.0Liter 1.6Liter

Description

Furuno NAVPILOT300 Autopilot Series

With PG700 and PUMPOCT10-12 | PUMPOCT16-12

The Furuno NAVPILOT300 is a revolutionary adaptive autopilot system designed for planing and semi-displacement outboard vessels ranging from 24 to 50 feet, equipped with one to four outboard engines. It features Fantum Feedback™ technology that eliminates the need for a physical rudder feedback unit, allowing for simplified and streamlined installation. The autopilot dynamically learns and adjusts to vessel behavior and environmental conditions such as speed, trim, draught, tide, and wind for precise course-keeping from slow trolling to high speeds exceeding 60 knots.

A unique Gesture Controller, communicating via Bluetooth within a 10-meter range, enables intuitive remote steering by simply pointing to the desired heading.

The system includes SABIKI™ mode, which maintains heading while drifting astern, tailored for Sabiki, jigging, and bottom fishing, maximizing fish catching efficiency without manual steering.

Other versatile display modes include Highway mode, Auto and Advanced Auto, and FishHunter™ mode allowing pre-programmed maneuvers (Zig-Zag, Orbit, Figure 8, Spiral) around targets detected by Furuno sonar or radar, also useful for Man Overboard (MOB) situations.

Optional SAFE HELM and POWER ASSIST modes offer power-assisted hydraulic steering control, significantly reducing steering effort and enhancing safety. POWER ASSIST can potentially replace separate electric or engine-driven power steering systems, reducing complexity and operating costs. These modes require the optional FPS8 Power Steering Module and compatible HRP Pumpset.

Models:

NAVPILOT 300/PG-S (with 1.0L Octopus Pump)
NAVPILOT 300/PG-M (with 1.6L Octopus Pump for multi-cylinder steering)

Key Features Comparison

Feature	NAVPILOT 300/PG-S	NAVPILOT 300/PG-M
Pump Volume	1.0L Octopus Pump	1.6L Octopus Pump
Heading Sensor	PG700 Fluxgate Magnetic Sensor	PG700 Fluxgate Magnetic Sensor
Adaptive Learning	Yes (Fantum Feedback™)	Yes (Fantum Feedback™)
Displays	4.1" Color LCD	4.1" Color LCD
Remote Gesture Control	Bluetooth controller (10 m range)	Bluetooth controller (10 m range)
Specialized Fishing Modes	SABIKI™, FishHunter™, Highway mode	SABIKI™, FishHunter™, Highway mode
Steering Support	Compatible with SAFE HELM & POWER ASSIST (optional FPS8 Module and HRP Pumpset required)	Compatible with SAFE HELM & POWER ASSIST (optional FPS8 Module and HRP Pumpset required)
Vessel Type and Size	Single-cylinder steer vessels, 24-50 ft	Multi-cylinder steering vessels, 24-50 ft and above
