Furuno Power Supplies for Radar Systems.

Furuno PSU017 and PSU012 Power Supplies for Radar Systems

Models:

• PSU017 Power Supply

• PSU012 Power Supply

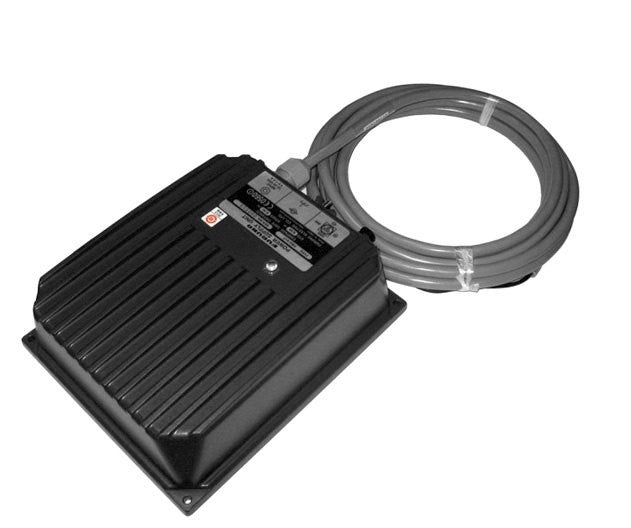

The Furuno PSU017 is a robust external power supply designed specifically for DRS2D and DRS4D Dome Radar Sensors when interfaced with NavNet TZtouch multifunction displays. It accepts 12 VDC or 24 VDC input and outputs a regulated 48 VDC to power the radar sensors. It features a durable cast aluminum housing, a pre-connected 3-meter power cable, and compact dimensions (9" height x 7.5" width x 3" depth). The PSU017 is designed for high reliability in marine environments and reduces installation complexity without needing additional PSU units.

In contrast, the Furuno PSU012 power supply supports a broader set of Furuno radars including the DRS2D, DRS4D, DRS4A, DRS6A, and DRS12A series in combination with NavNet 3D, TZtouch, and TZtouch2 multifunction displays. It is a deck or bulkhead mount unit designed and engineered for high-grade performance and longevity under harsh marine conditions. The PSU012 typically comes with longer cable assemblies (5 meters or more), includes multiple fuses for protection, and supports integration with a variety of multifunction displays.

Key Feature Comparison

What's in the Box

PSU017

• PSU017 Power Supply Unit

• Pre-attached 3-meter power cable

• Mounting hardware and instructions

PSU012

• PSU012 Power Supply Unit

• Multiple fuse sets (varies)

• Power and LAN cables (typically 5 meters or longer)

• Mounting hardware and instructions
