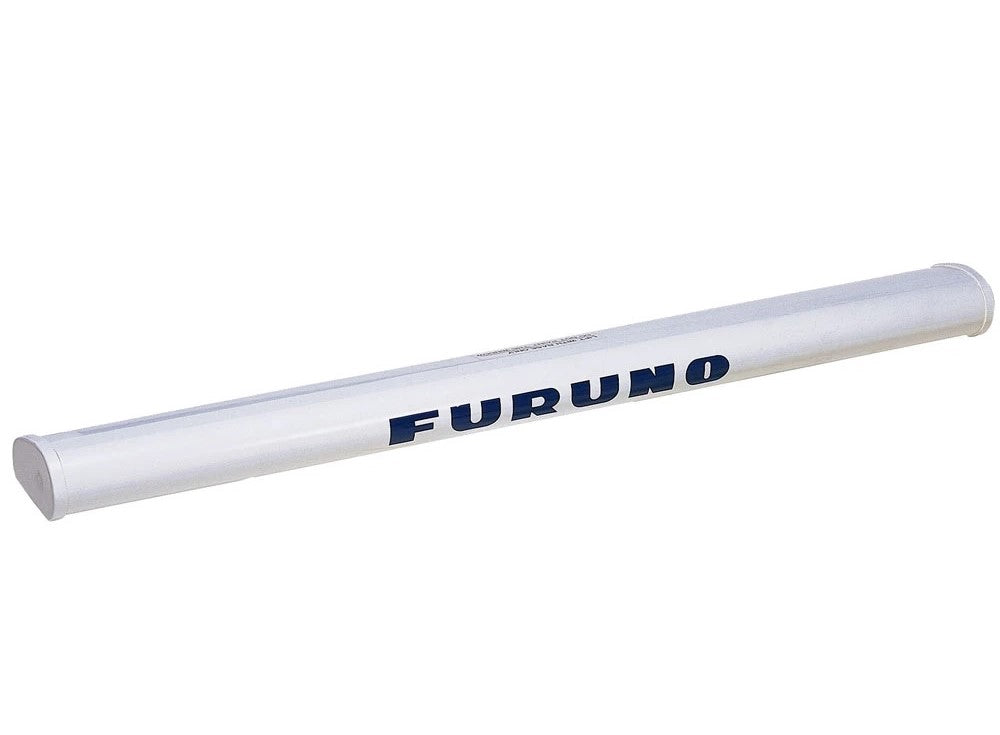

Furuno XN12A/4 49in Antenna

Product Description

The Furuno XN12A/4 is a 4-foot (49-inch) open array radar antenna designed for high-performance marine radar systems, delivering exceptional target detection and resolution for fishing boats and coastal vessels.

Product Overview

This slotted waveguide array antenna pairs with Furuno DRS12A X-Class and other 12kW radar sensors, providing long-range target acquisition with sharp discrimination between small targets, birds, and clutter in all weather conditions.

Key Specifications

• Size: 4 ft (1.2 m) open array, 49 inches total length

• Horizontal beamwidth: 1.9°; vertical beamwidth: 22°

• Output power compatibility: 12 kW nominal

Technical Specifications

• Antenna gain: 28.5 dBi; sidelobe attenuation: -24 dB within ±10°

• Rotation speed: 24/36/48 rpm; wind resistance: 70 knots

• Frequency: X-band 9410 ±30 MHz; max range: 96 NM

What's in the Box

• Furuno XN12A/4 4-foot open array antenna

• Mounting hardware and gasket seal

• Installation manual
