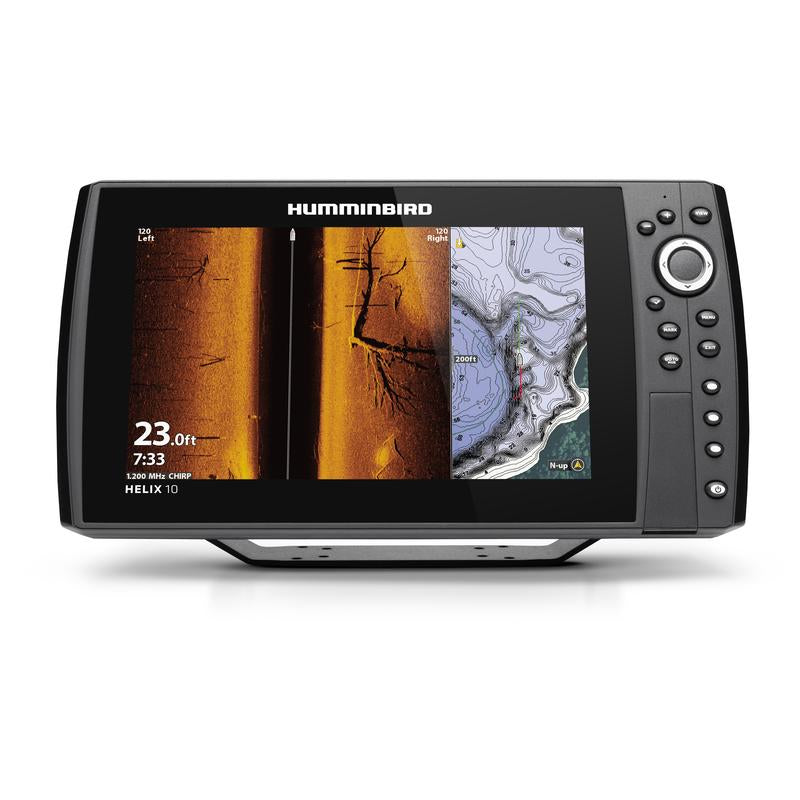

Humminbird HELIX10 CHIRP Mega SI+ GPS G4N No Transducer

Product Description

The Humminbird HELIX 10 CHIRP MEGA SI+ GPS G4N No Transducer is a high-end marine fishfinder/chartplotter featuring a 10.1-inch display with advanced MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar for detailed underwater mapping and fish detection. It's designed without a bundled transducer, allowing customization for specific marine setups.

Product Overview

In marine and boating applications, this unit excels for offshore fishing, navigation, and structure scanning on recreational or professional vessels. It integrates GPS charting, AutoChart Live for real-time mapping, and networking via Ethernet, Bluetooth, Wi-Fi, and NMEA 2000 for seamless compatibility with Minn Kota trolling motors, Cannon downriggers, and other Humminbird ecosystem devices.

Key Specifications

• 10.1-inch display with 1024 x 600 pixel resolution.

• Internal GPS with Humminbird Basemap, Navionics, LakeMaster compatibility.

• Power output: 1000W RMS (8000W peak-to-peak).

• Networking: Bluetooth, Wi-Fi, Ethernet, NMEA 2000.

Technical Specifications

• Sonar: Dual Spectrum CHIRP (50/83/200/455/800 kHz & 1.2 MHz), MEGA SI+/DI+ up to 400 ft range; depth capability 1,200 ft standard, 3,500 ft optional.

• CHIRP frequencies: Full (150-220 kHz), Narrow (180-240 kHz), Wide (140-200 kHz); Imaging: 455/800 kHz & MEGA (1100-1200 kHz).

• Coverage angles: 20°, 42°, 60°, (2) 86°, (2) 55° @ -10dB.

• Physical: Gimbal mount (13.44" W x 7.5" H x 4.2" D); power input 10-20 VDC; dual SD card slots.

What's in the Box

• HELIX 10 CHIRP MEGA SI+ GPS G4N control head unit.

• Rubber screen cover.

• Power cable.

• Gimbal mounting bracket and hardware.

• User manual.

• Note: No transducer included (model specifies "No Transducer").
