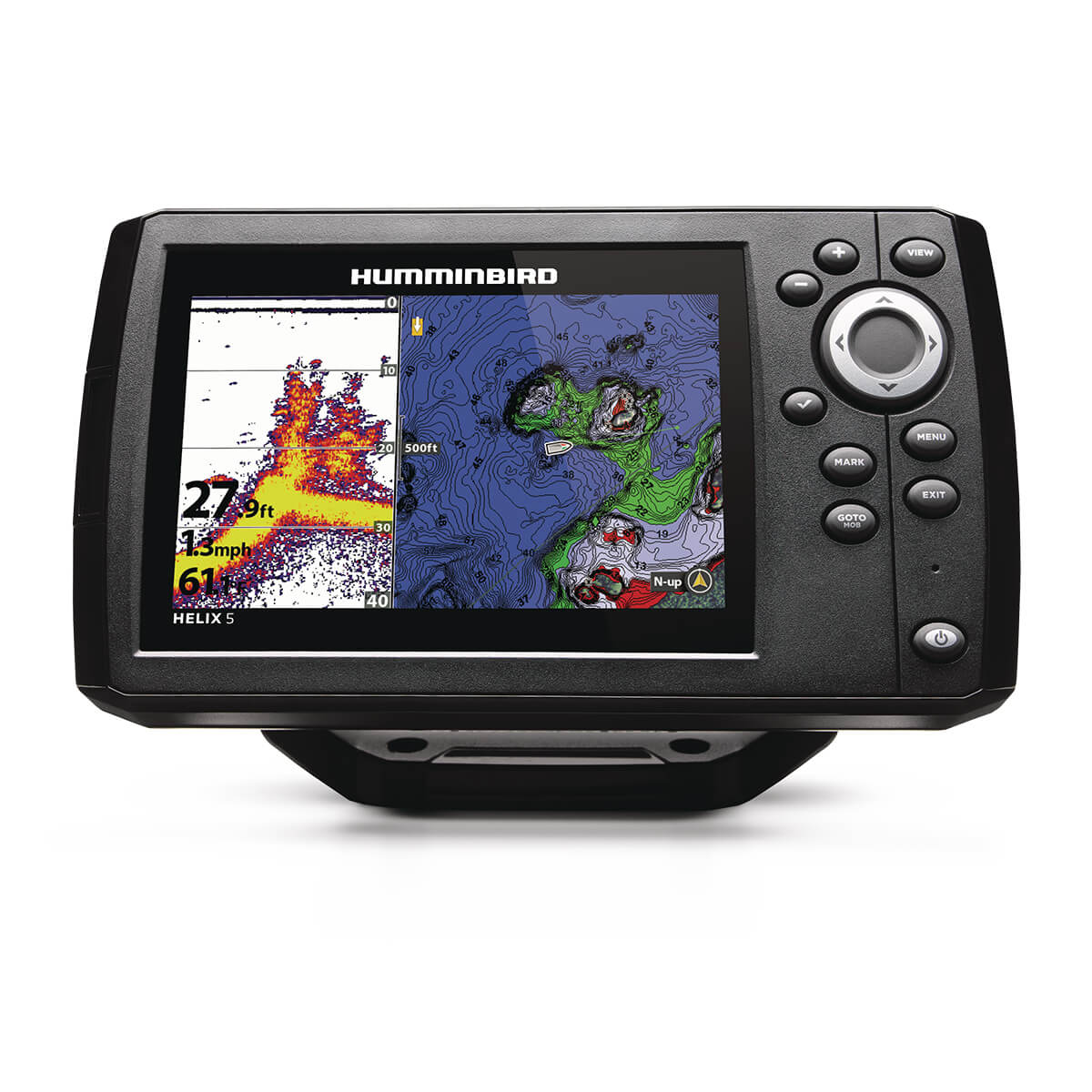

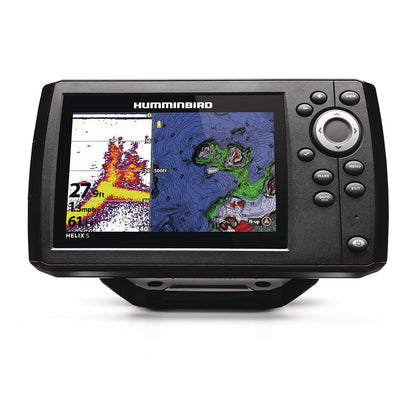

Humminbird HELIX5 CHIRP DI WVGA Sonar GPS G3.

$361.95

Sold out

-0%

Shipping calculated at checkout.

Low stock: 7 left

GPS Options: DI GPS DI GPS GPS

Description

Humminbird HELIX 5 G3 CHIRP Series – GPS and DI GPS Models

Models: 411670-1 (CHIRP DI GPS) | 411660-1 (CHIRP GPS)

PRODUCT DESCRIPTION

The Humminbird HELIX 5 G3 CHIRP Series delivers the perfect blend of compact power and advanced sonar clarity in a rugged, easy-to-use 5" widescreen display. Built for serious anglers who demand performance without complexity, HELIX 5 G3 models feature Dual Spectrum CHIRP Sonar, internal GPS with Humminbird Basemap, AutoChart Live, and compatibility with LakeMaster®, CoastMaster™, and Navionics® charts.

The CHIRP DI GPS model adds CHIRP Down Imaging, providing photo-like views of structure and fish directly beneath your boat. Both models feature a keypad-driven HELIX interface, letting you access preloaded views and sonar functions with reliable button control in all conditions.

Whether you’re charting unknown waters or returning to your favorite spot, HELIX 5 G3 gives you the clarity, precision, and charting power needed to make every trip count.

KEY FEATURES

5" widescreen, 800H x 480V color display
Keypad control with user-friendly X-Press Menu system
Dual Spectrum CHIRP sonar with Wide and Narrow modes for target detail or coverage

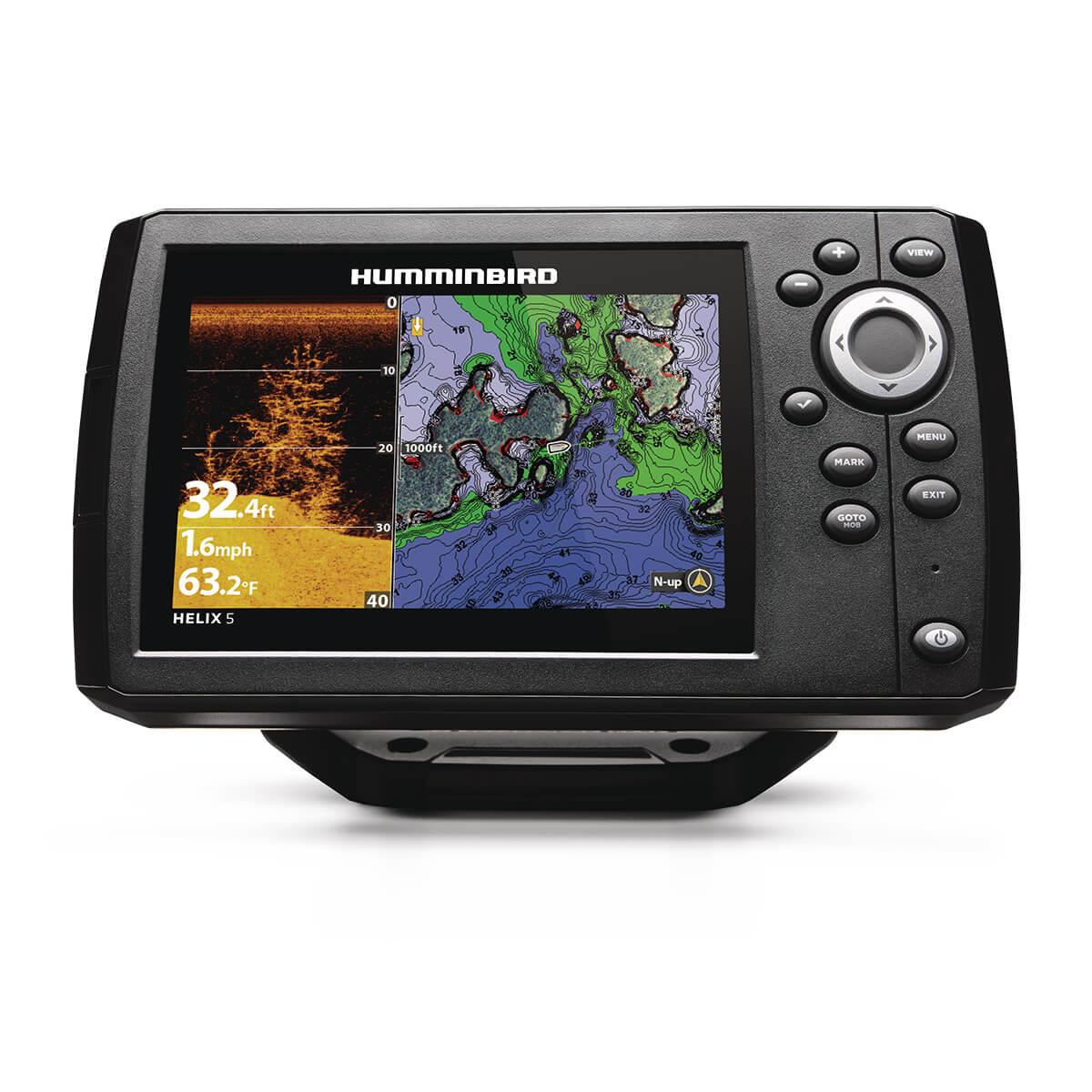

(DI GPS model only) CHIRP Down Imaging sonar for photo-like clarity below your boat
Internal GPS with Humminbird Basemap covering 10,000+ lakes and U.S. coastal waters
AutoChart Live for real-time custom mapping of contours, vegetation, and bottom hardness
Premium chart compatibility: LakeMaster®, CoastMaster™, and Navionics®
Transom-mount Low-Q CHIRP transducer included
4,000W peak-to-peak (500W RMS) output power
NMEA 0183 support, Minn Kota® US2 Sonar compatibility
Single microSD card slot for chart and data storage
Compact, gimbal-mounted design for easy installation
Software upgradable via SD card

WHAT’S IN THE BOX

HELIX 5 G3 CHIRP DI GPS (Model: 411670-1)

HELIX 5 G3 CHIRP DI GPS Display
Transom-Mount Transducer – XNT 9 HW DI T
Power Cable
Gimbal Mounting Bracket
Mounting Hardware

HELIX 5 G3 CHIRP GPS (Model: 411660-1)

HELIX 5 G3 CHIRP GPS Display
Transom-Mount Transducer – XNT 9 HW T
Power Cable
Gimbal Mounting Bracket
Mounting Hardware

COMPARISON TABLE

Feature / Model	HELIX 5 G3 CHIRP DI GPS (411670-1)	HELIX 5 G3 CHIRP GPS (411660-1)
Display Size / Resolution	5" Widescreen, 800H x 480V	5" Widescreen, 800H x 480V
Interface	Keypad	Keypad
CHIRP Sonar	Dual Spectrum CHIRP	Dual Spectrum CHIRP
Down Imaging	Yes (CHIRP DI)	No
Sonar Coverage	20°, 42°, 60°	20°, 42°, 60°
Max Depth (2D)	1,200 ft (standard) / 3,000 ft (optional 50kHz)	1,200 ft (standard) / 3,000 ft (optional 50kHz)
Max Depth (DI)	350 ft	N/A
Internal GPS	Yes	Yes
Built-in Basemap	Yes	Yes
Chart Compatibility	LakeMaster®, CoastMaster™, Navionics®	LakeMaster®, CoastMaster™, Navionics®
AutoChart Live	Yes (8 hours built-in)	Yes (8 hours built-in)
Memory Card Slot	1 microSD	1 microSD
Power Output (Peak-to-Peak / RMS)	4,000W / 500W	4,000W / 500W
Transducer Included	XNT 9 HW DI T	XNT 9 HW T
Mounting Type	Gimbal	Gimbal
Temperature Graph & Alarm	Yes	Yes
NMEA 0183 / Minn Kota US2 Compatibility	Yes	Yes
HDMI / MEGA Live Support	No	No
Software Upgradable	Yes	Yes
