Humminbird HELIX5 G2 Color Fishfinder Series.

Humminbird HELIX 5 G2 Series – High Definition, Precision Fishing.

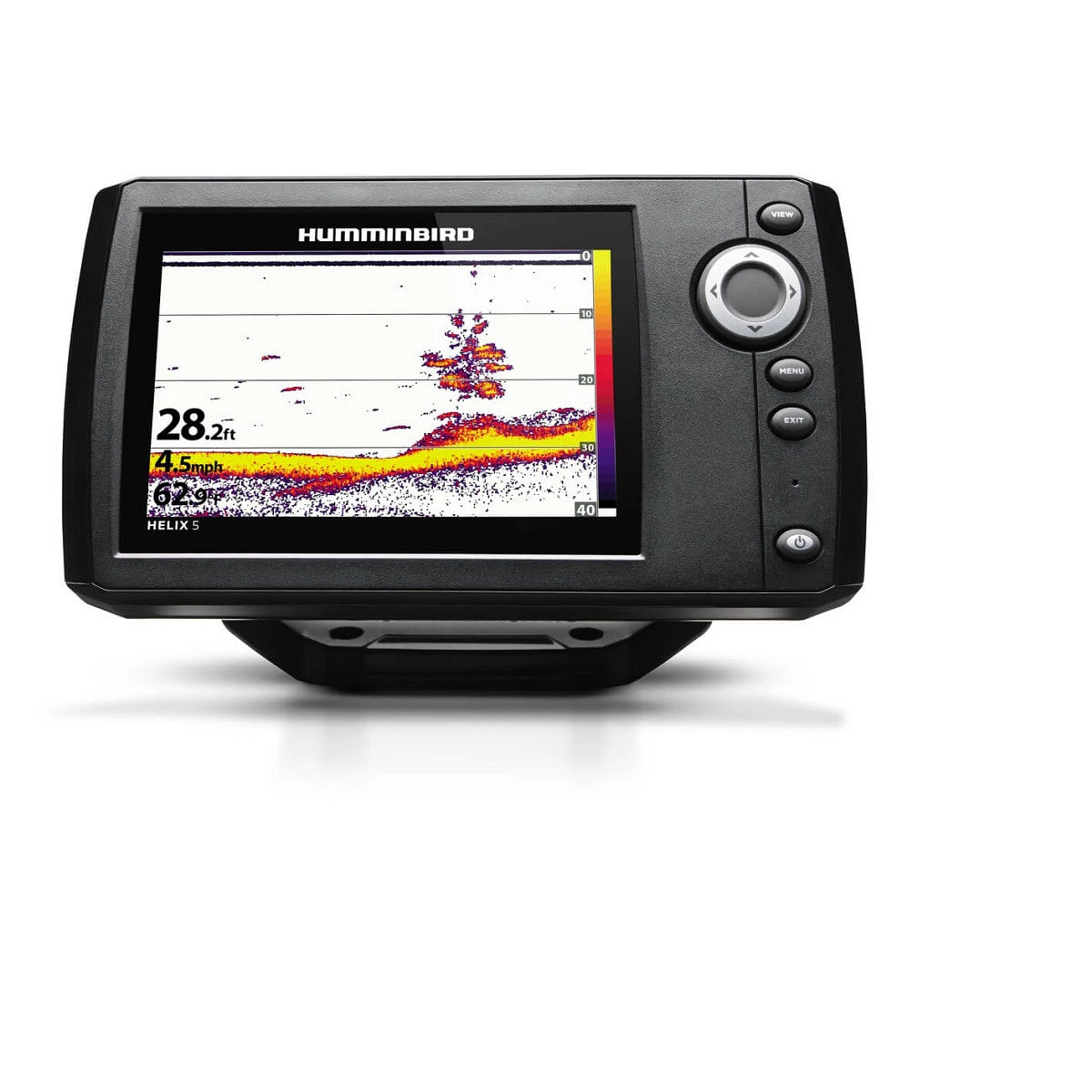

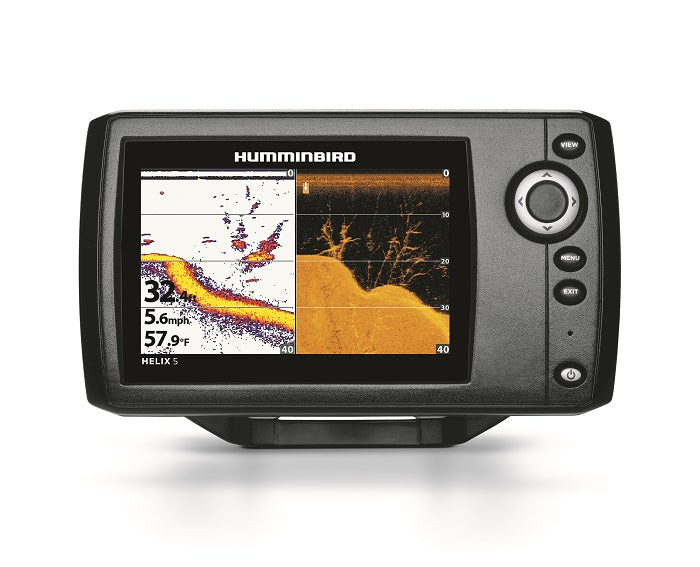

HELIX 5 DI G2 & HELIX 5 Sonar G2

Model: (410190‑1)  (410200‑1)

The Humminbird HELIX 5 G2 Series brings advanced sonar technology to a compact, high-performance 5" display platform. Featuring a bright 800 × 480 color TFT screen, powerful sonar capabilities, and intuitive controls, these fish finders help anglers interpret underwater details with clarity and precision.

Both models feature SwitchFire Sonar and DualBeam PLUS technology for customizable views and superior target separation. The HELIX 5 DI G2 adds Down Imaging for photo-like underwater details, while the HELIX 5 Sonar G2 focuses on powerful DualBeam returns for broader coverage and stronger bottom detail.

Key Features

• 5" Color TFT Display (800 × 480 resolution, 256 colors)

• SwitchFire Sonar for custom return views (Clear and Max Modes)

• DualBeam PLUS Sonar combines high-detail and wide-area coverage

• Down Imaging (DI model only) for ultra-clear structure viewing

• 16-bit color depth with bright LED backlight

• Upgradable software via My Humminbird portal

• Built-in temperature sensor in the transducer

• 500W RMS / 4000W PTP power output for reliable depth performance

• Depth capability: up to 600 ft (2D) and 350 ft (DI)

• Split-screen zoom, bottom lock, and large-digit view modes

• Compatible with optional speed and PC Connect accessories

Comparison Table

What’s in the Box

HELIX 5 Sonar G2 (410190‑1):

• HELIX 5 Sonar G2 Display

• XNT 9 20 T Transom-Mount Transducer

• Mounting Bracket

• Power Cable

• Documentation

HELIX 5 DI G2 (410200‑1):

• HELIX 5 DI G2 Display

• XNT 9 DI T Transducer

• Mounting Bracket

• Power Cable

• Documentation
