Humminbird Piranhamax 4 Series – Compact, Powerful Fishfinders.

Humminbird PiranhaMAX 4 Series – Compact, Powerful Fishfinders

The Humminbird PiranhaMAX 4 Series delivers powerful sonar performance in a compact, easy-to-use design. With a 4.3" color TFT display (480 × 272 resolution) and 2400 watts peak-to-peak power output, these units offer clear, detailed underwater views.

Whether you’re looking for DualBeam, Down Imaging, or a portable solution, the PiranhaMAX 4 Series provides high-quality sonar imaging to suit every fishing setup.

Available models:

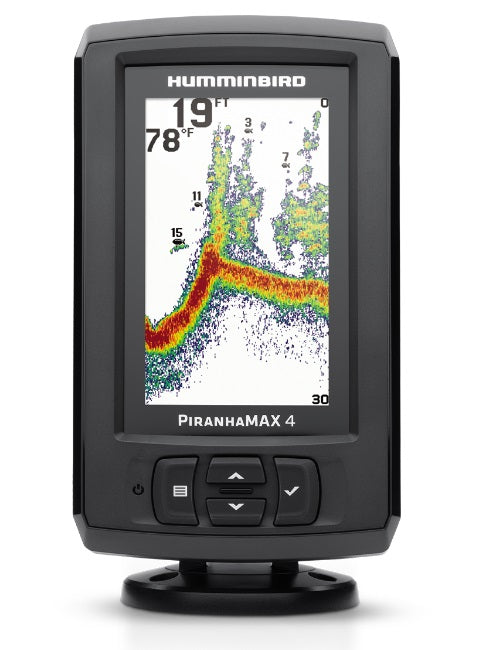

• PiranhaMAX 4 (410150-1) – Standard DualBeam sonar.

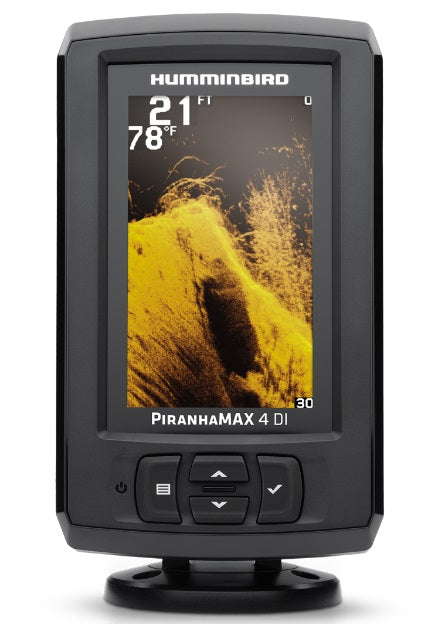

• PiranhaMAX 4 DI (410160-1) – Down Imaging + DualBeam combination.

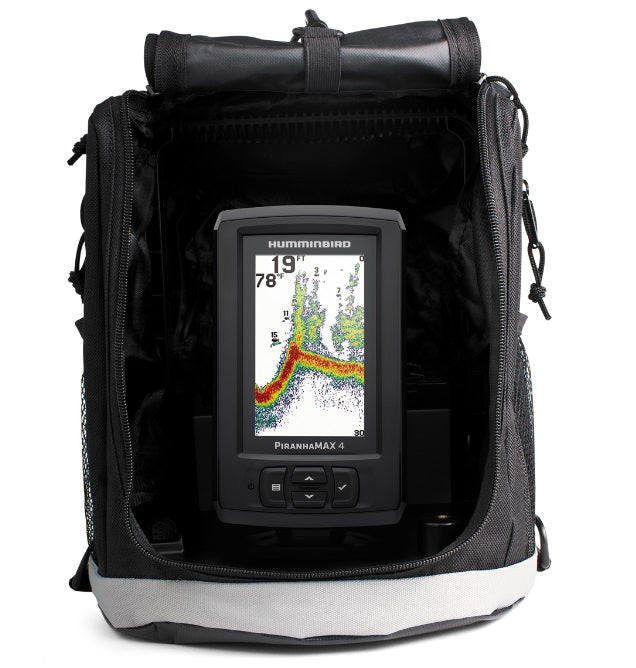

• PiranhaMAX 4 PT (410170-1) – Portable DualBeam version with battery and case.

---

Key Features

• 4.3" Color TFT Display with 256-color resolution (480V × 272H)

• 300W RMS / 2400W PTP output for strong sonar performance

• DualBeam and Down Imaging options for precise bottom and fish detection

• Built-in transducer temperature sensor

• Backlight display for low-light visibility

• Compact and easy installation with gimbal or in-dash mounting

• Depth Capability: Up to 600 ft (model-dependent)

---

Comparison Table

---

What’s in the Box

PiranhaMAX 4 (410150-1):

• PiranhaMAX 4 Display Unit

• XNT 9 28 T Transducer

• Mounting Bracket

• Power Cord

• Documentation

PiranhaMAX 4 DI (410160-1):

• PiranhaMAX 4 DI Display Unit

• XNT 9 DI T Transducer

• Mounting Bracket

• Power Cord

• Documentation

PiranhaMAX 4 PT (410170-1):

• PiranhaMAX 4 Display Unit

• XPT 9 28 T Portable Transducer

• Portable Protective Case

• 7 Amp Hour Battery

• AC Wall Charger
