Humminbird XNT-9 Transom Mount Transducers

Models:

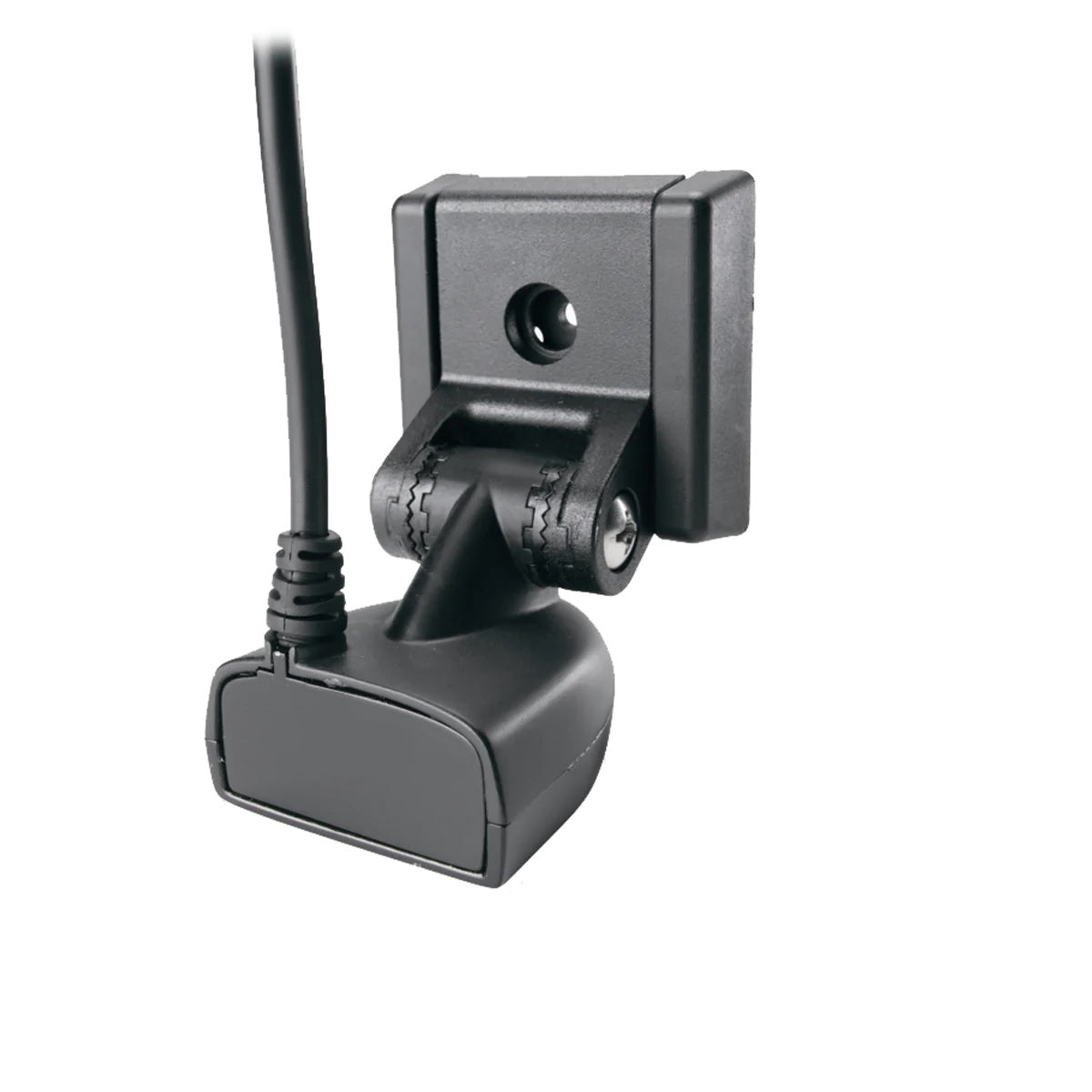

7101981 –   XNT-9-20T Single/Dual Beam transducer for legacy 300/500/700/900/PiranhaMAX/Matrix
7102261 –   XNT-9-20T Down Imaging/DualBeam transducer (455/800kHz DI)

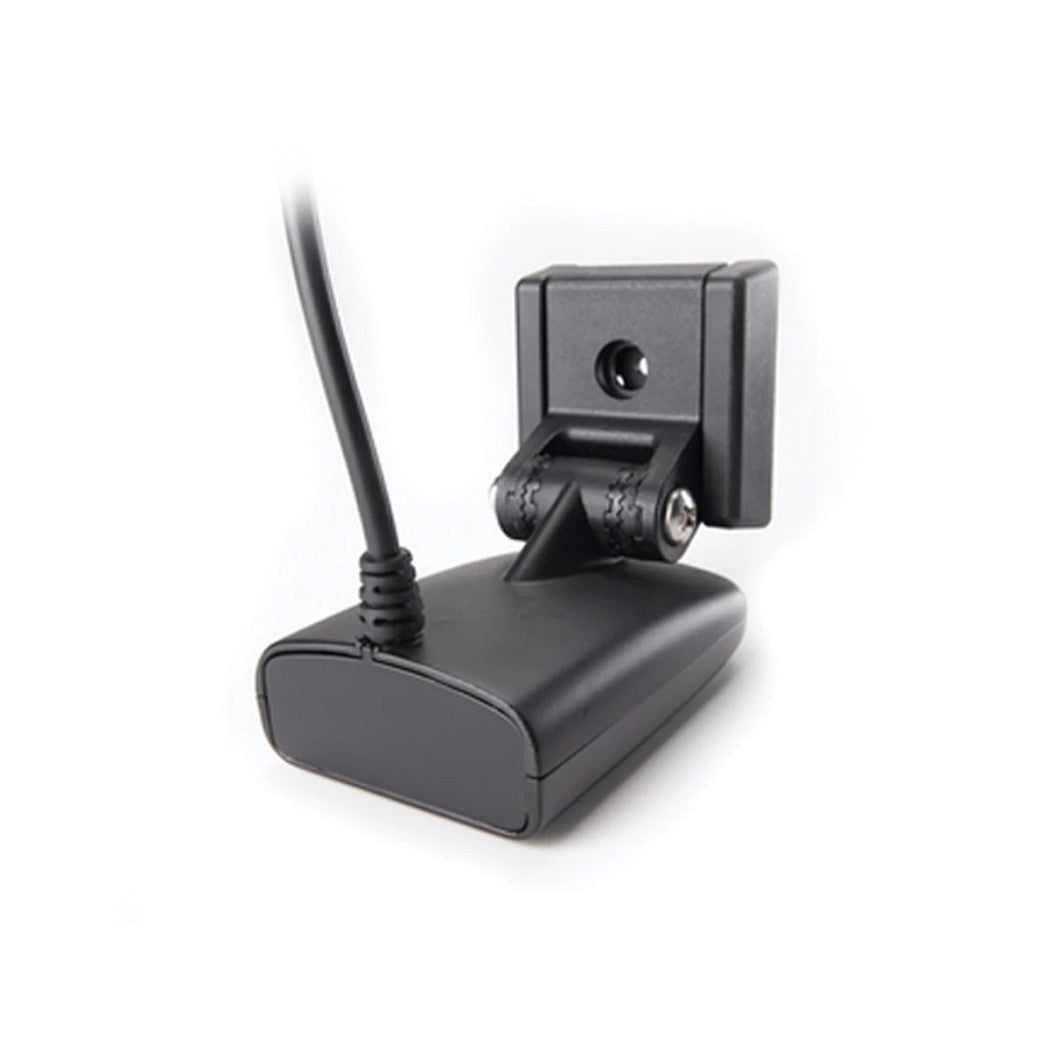

7102001 –   XNT-9SI-180T Side Imaging transducer for HELIX 5/7/9 SI + legacy SI units

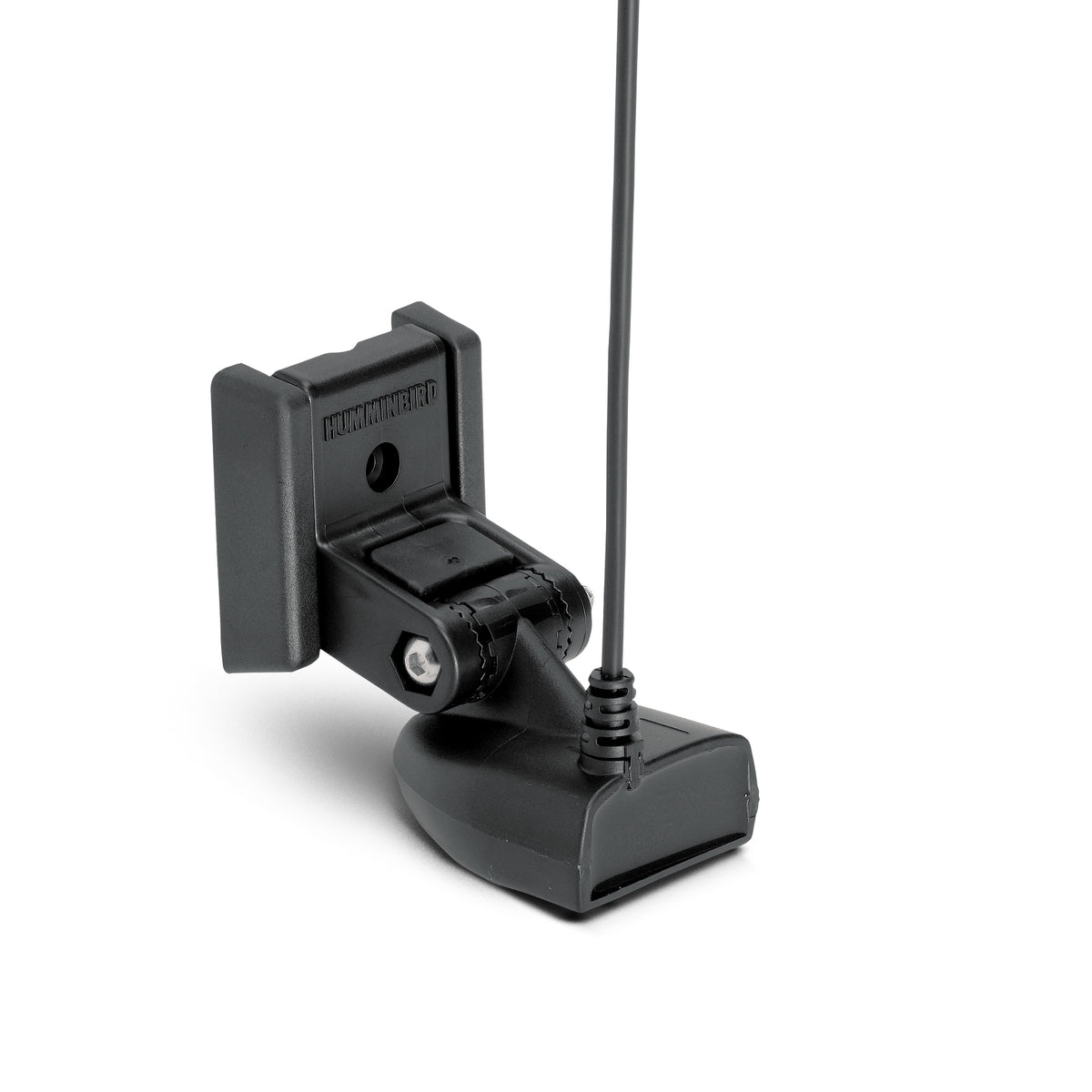

7102741 –   XNT-9-HW-T Dual Spectrum CHIRP transducer for HELIX 5/7/8/9/10/12/ICE HELIX (2D only)

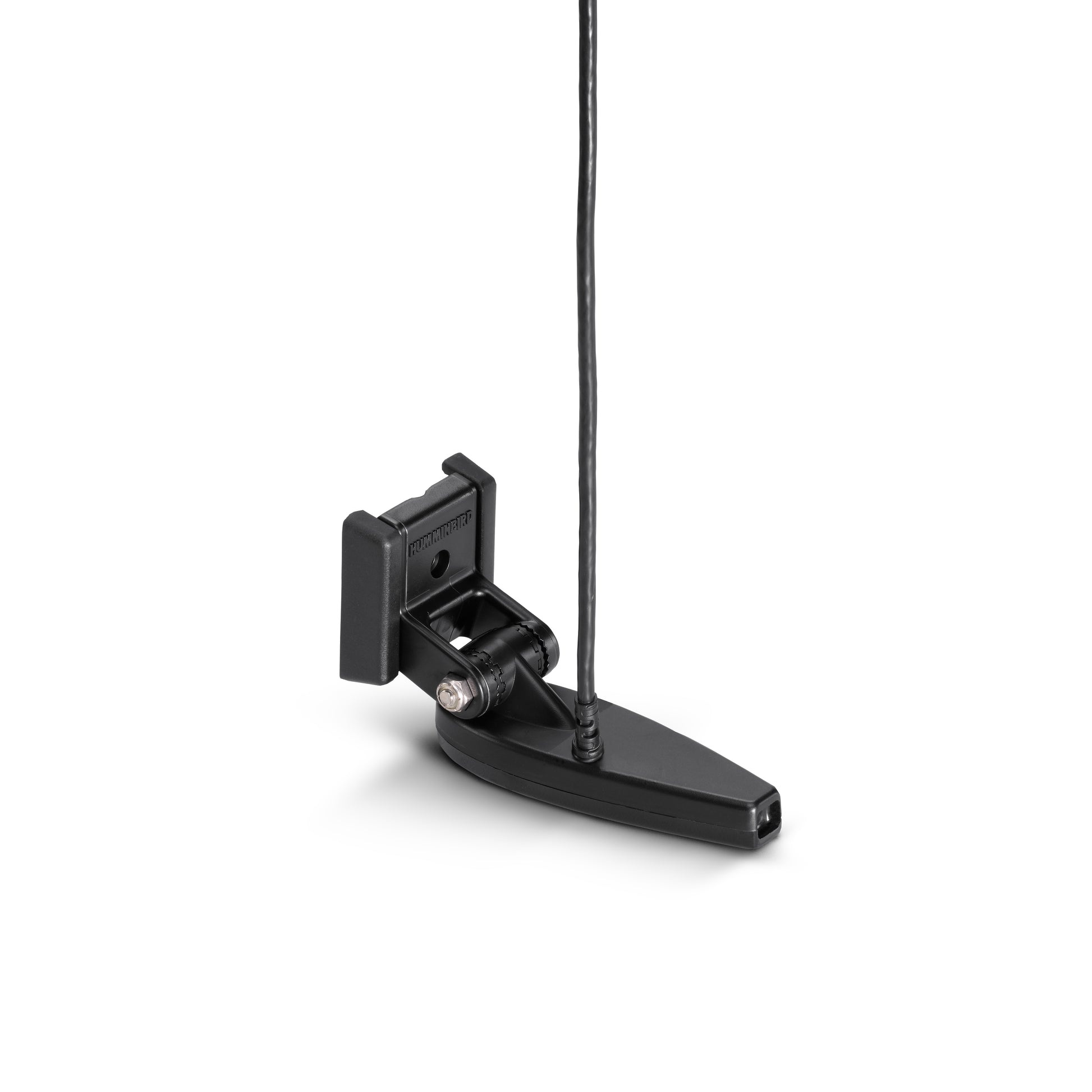

7102951 –   XNT-9-HW-MDI-75-T MEGA Down Imaging transducer for HELIX 7/8 MEGA DI G3/G3N

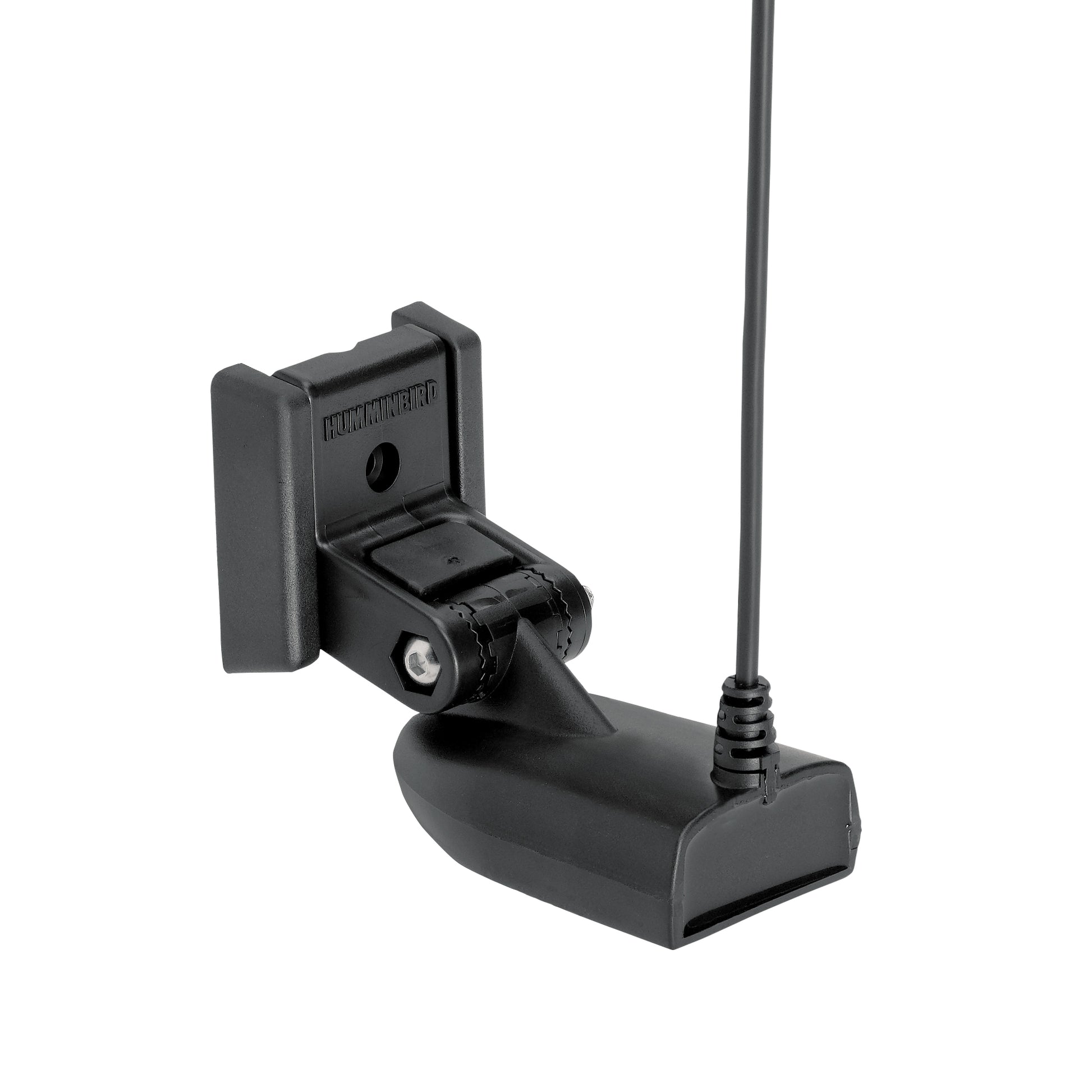

7102971 –   XNT-9-HW-MSI-150-T MEGA Side/Down Imaging transducer for HELIX 7/8 MEGA SI G3/G3N

Product Description

Humminbird XNT-9 series transom mount transducers provide secure, impact-release mounting for all HELIX and legacy fishfinders with improved running angles and optional lock-down screws. Models range from basic Single/Dual Beam (200/83kHz) and Side Imaging to advanced Dual Spectrum CHIRP 2D sonar (150-220kHz, 1200ft max) plus MEGA Down/Side Imaging. All feature built-in temperature sensors (where specified), rugged composite designs, and 20ft cables for reliable performance in rough conditions.

Key Features

• Dual Spectrum CHIRP 2D sonar (150-220kHz, 1200ft max depth where available)

• MEGA Down/Side Imaging at 455kHz/MEGA frequencies for detailed structure

• Impact-release transom bracket with improved running angle and lock-down screw

• Built-in temperature sensor (most models)

• 20ft cable length for flexible routing

Comparison Table

What's in the Box

• XNT-9 Transom Mount Transducer (model specific)

• Impact-release mounting bracket and hardware

• 20ft cable with connector
