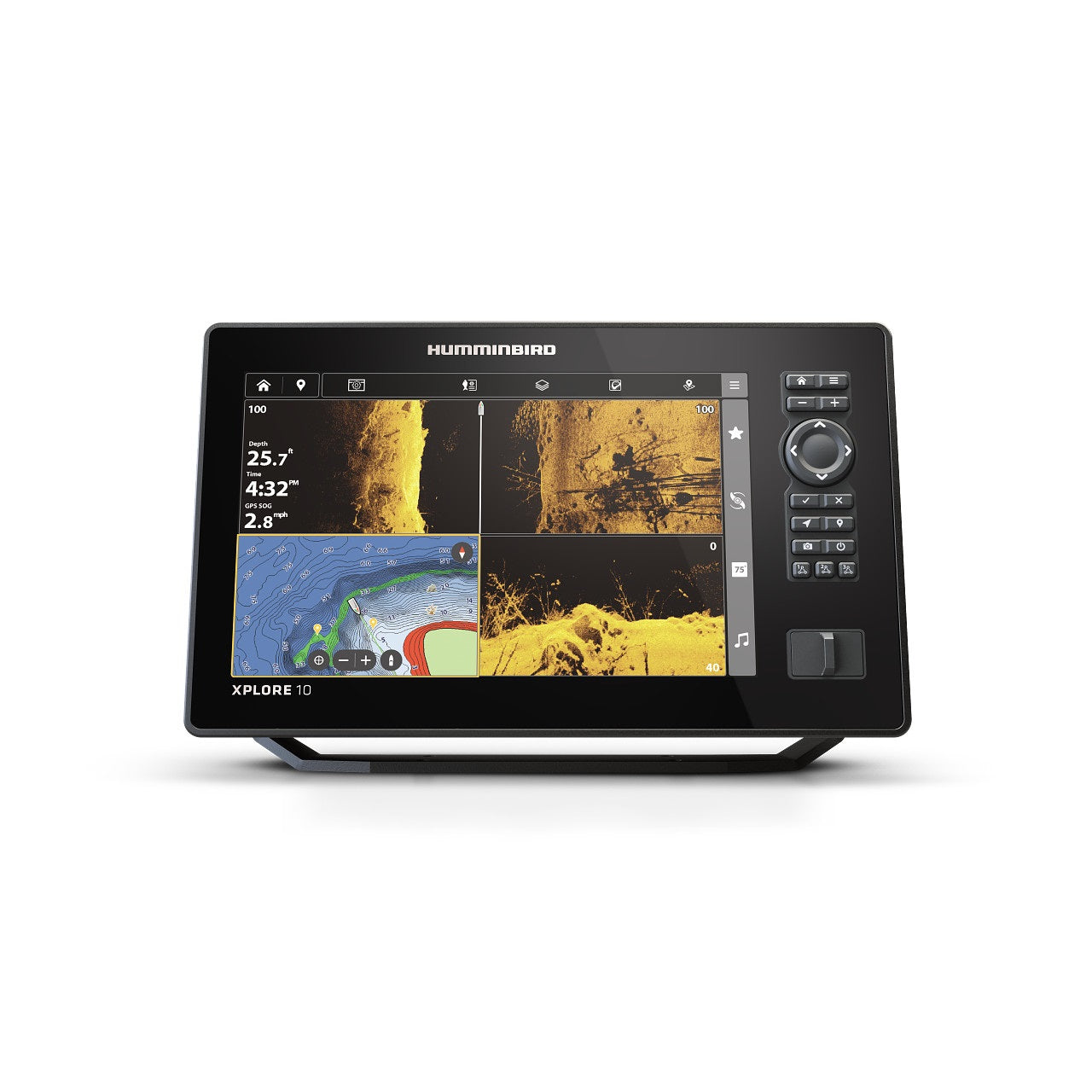

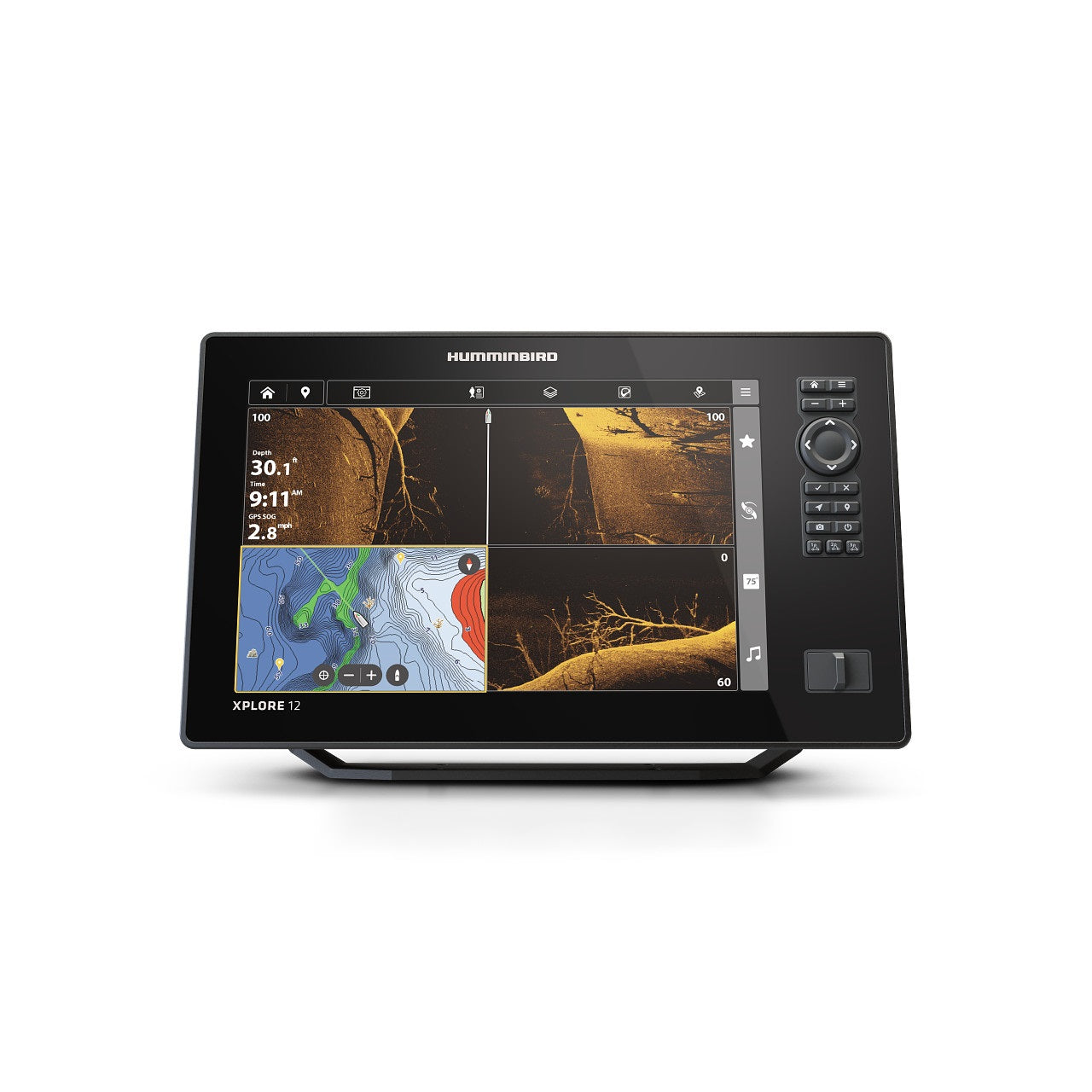

Humminbird Xplore CHO No Transducer.

Humminbird XPLORE CMSI+ with NO Transducer

Model Numbers:

• 412020-1CHO
• 412010-1CHO
• 412000-1CHO

The XPLORE 12 CMSI+ is Humminbird’s most advanced chartplotter/fish finder system yet, packed with next-generation sonar, networking, and touchscreen control. Whether you're a weekend angler or tournament pro, XPLORE puts precision and power at your fingertips.

Key Features:

• 12.1" Full HD Touchscreen with Cross Touch® Interface: 1280H x 800V resolution for sharp, detailed imaging. Operate with touchscreen or keypad control.
• MEGA Side Imaging+: See up to 200' on either side of your boat with 20% more detail and 60% more range than standard MEGA SI.
• MEGA Down Imaging+: Reach depths of 200' with stunning clarity—20% more detail and depth range than standard MEGA DI.
• Dual Spectrum CHIRP Sonar: Wide and narrow modes let you see fish arches and bottom detail like never before.
• Internal GPS & Humminbird Basemap: Covers over 10,000 U.S. lakes and coastal regions with critical POIs like buoys, marinas, and hazards.
• LakeMaster and CoastMaster VX Map Card Included: Standard mapping for U.S. and Canada.
• AutoChart Live: Build real-time maps with 8 hours of onboard recording—expandable via AutoChart Zero Line SD cards.
• Premium Chart Compatible: Supports LakeMaster®, CoastMaster™, and Navionics® Gold, Platinum, and HotMaps.
• One-Boat Network Compatible: Integrates with Minn Kota and Cannon products for smart control of trolling motors, shallow water anchors, and more.
• Bluetooth & Ethernet Networking: Sync with your smartphone, Talon/Raptor anchors, and other Humminbird devices. Display notifications and push wireless updates via the Humminbird app.
• NMEA 2000® Networking: Connect to external networks for weather, engine, and water condition data.

XPLORE Series Advantages:

• Lightning-fast interface built for anglers
• Waypoint syncing with smartphone
• Compatibility with MEGA Live 2 forward-facing sonar
• Control Minn Kota GPS navigation and deploy anchors directly from the screen

Specifications:

• Display: 12.1" Color TFT | 1280 x 800 resolution
• Mounting: Gimbal (included) or in-dash (optional)
• Dimensions: 14.145" W × 8.911" H × 3.989" D
• Touch + Keypad Interface
• Power: 10.8–20 VDC | 8000W Peak-to-Peak | 1000W RMS
• Memory: Dual MicroSD Card Slots
• Sonar: Dual Spectrum CHIRP, MEGA SI+, MEGA DI+
• Optional Sonar: Supports Airmar High/Medium/Low frequencies
• Depth: 3,500 ft with 50 kHz | 1,200 ft with standard transducer (not included)
• Side Imaging Range: 800 ft (455 kHz), 250 ft (MEGA)
• Down Imaging Depth: 200 ft (MEGA), 400 ft (455 kHz)
• Connectivity: Ethernet, Bluetooth, NMEA 2000
• Networking Compatibility: MEGA Live, MEGA 360, Radar, i-Pilot Link, Talon/Raptor
• Waypoints/Routes/Tracks: 10,000 waypoints, 50 routes, 20,000 track points

Warranty: 2-Year Limited Manufacturer Warranty

Note: This model does not include a transducer. Compatible with a wide range of Humminbird and Airmar sonar options.
