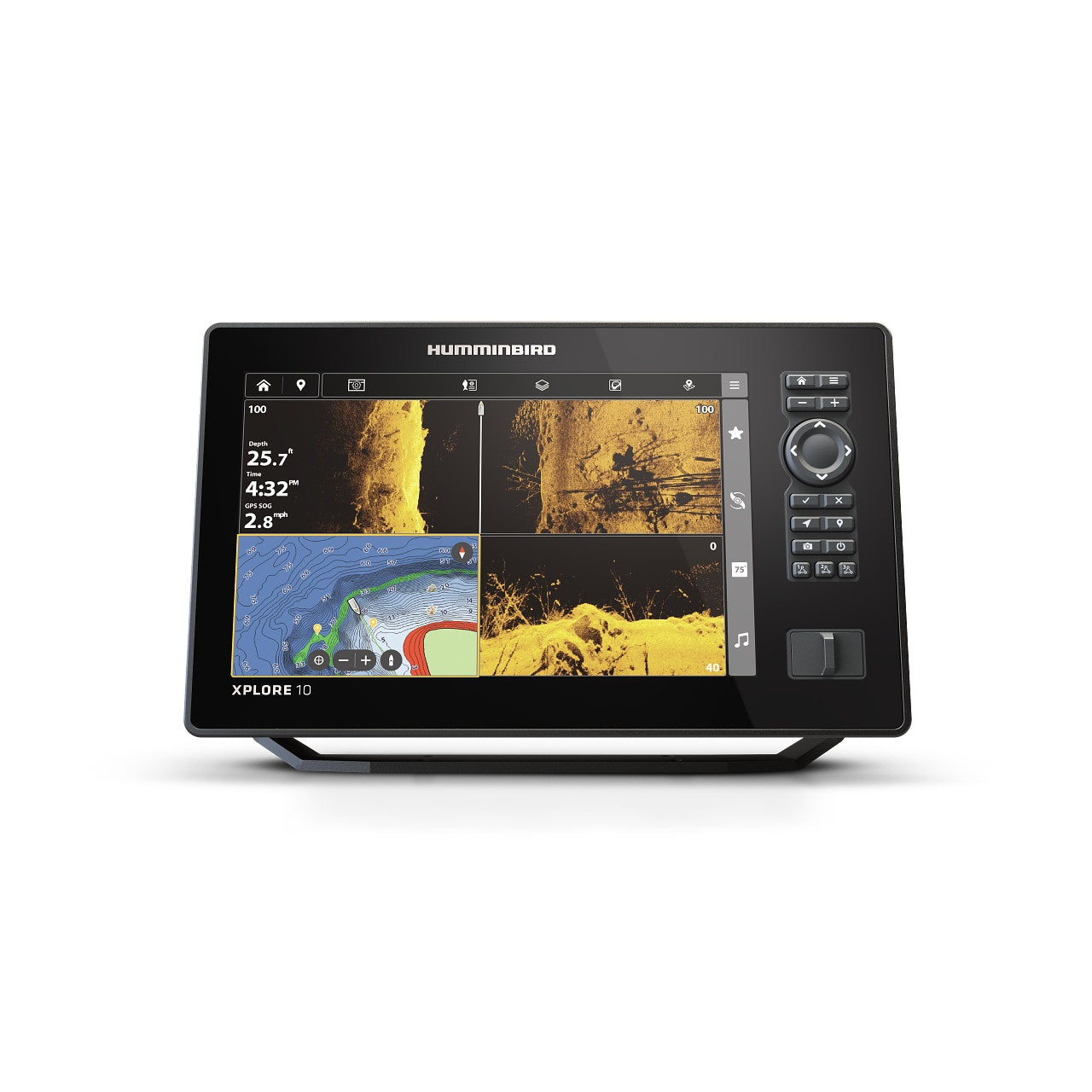

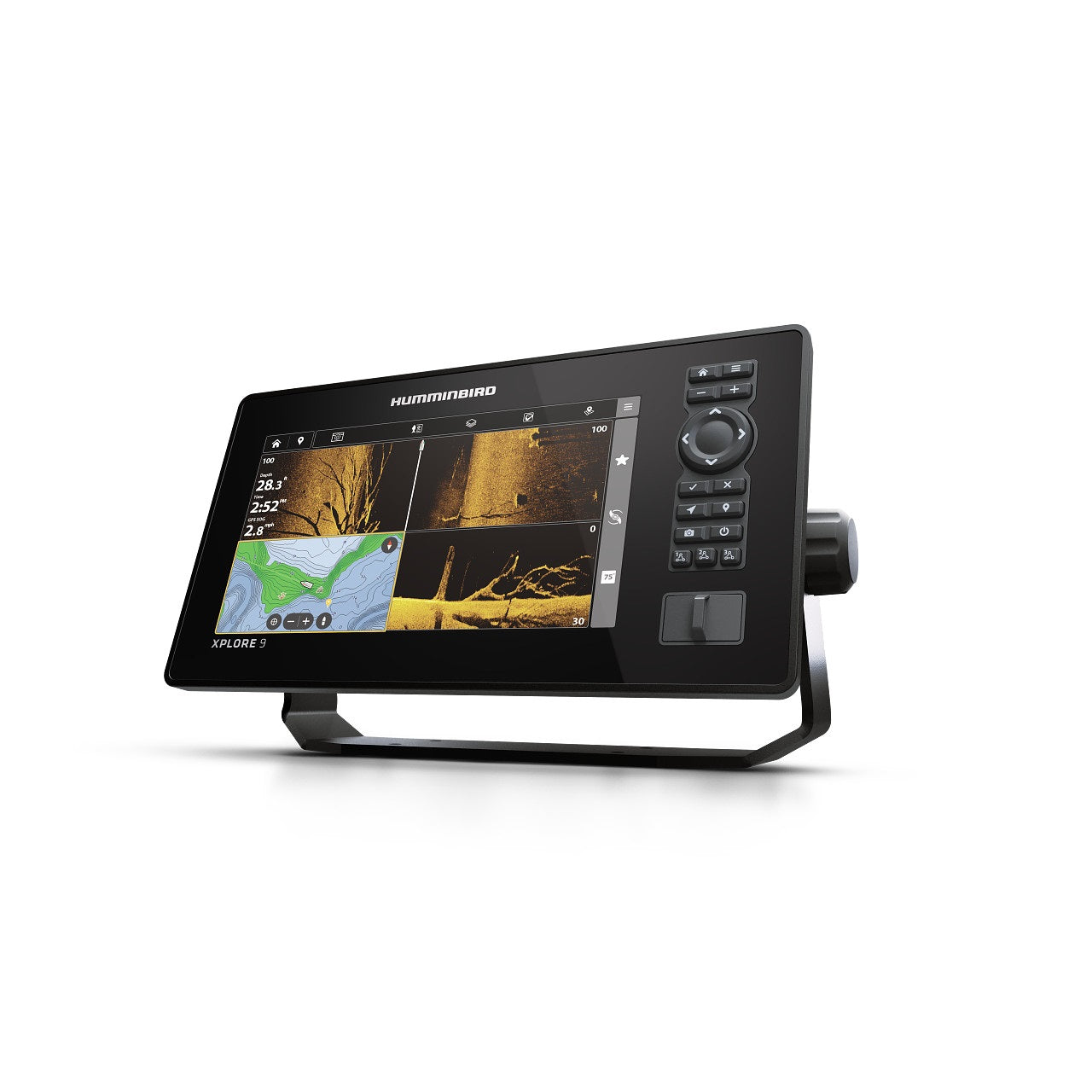

Humminbird Xplore CMSI+

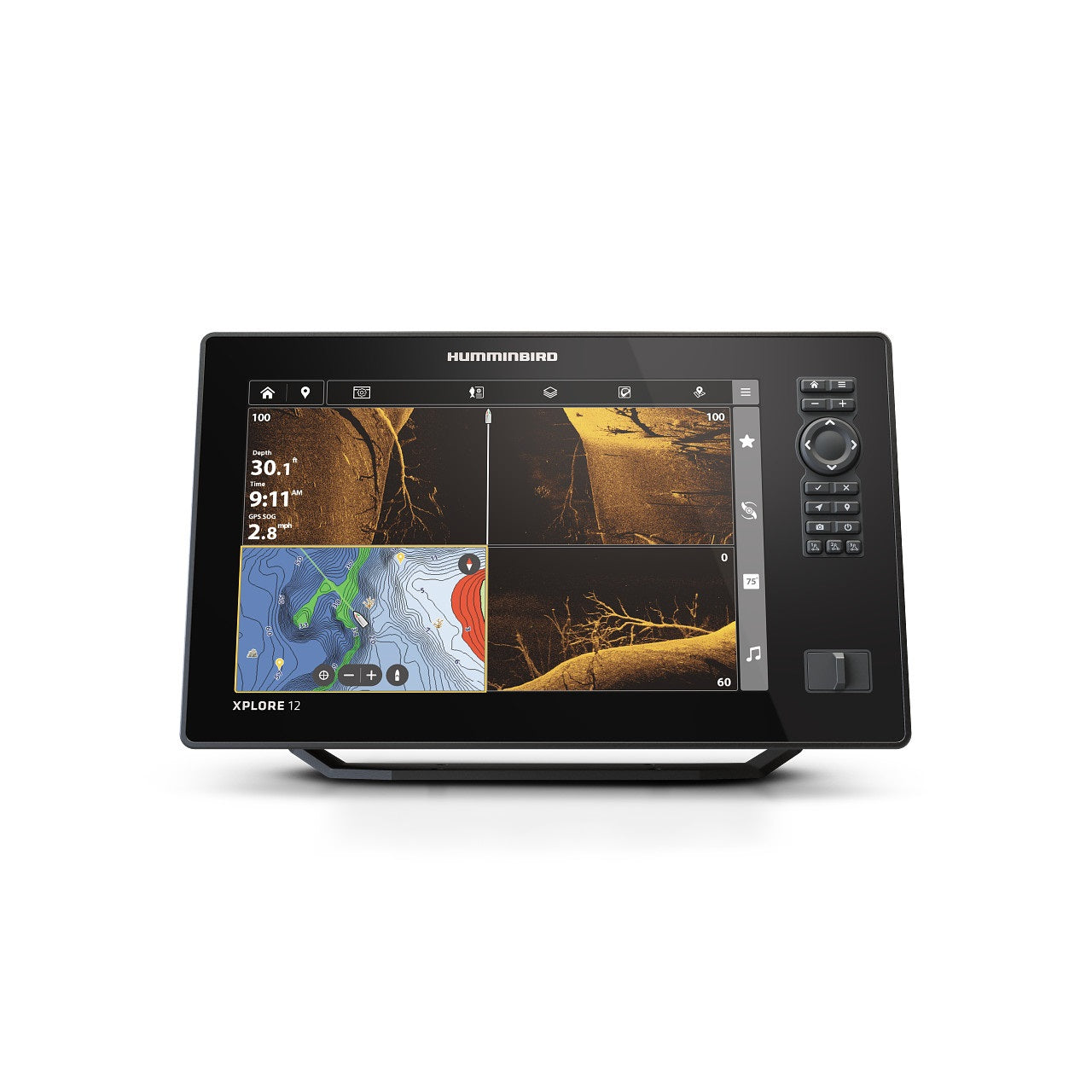

Humminbird Xplore 12 CMSI+

Model Numbers:

• 412020-1
• 412010-1
• 412000-1

Overview

The Humminbird Xplore 12 CMSI+ is lightning-fast and packed with advanced features. Designed for serious anglers, it delivers industry-leading sonar, high-definition charting, and seamless integration with Minn Kota and other One-Boat Network components — all in one 12.1” Full-HD touchscreen.

Key Features

• 12.1" Full-HD Cross Touch® Display: 1280H x 800V resolution with intuitive touchscreen and keypad control.
• MEGA Side Imaging+: View 200 ft to each side of your boat with 20% more detail and 60% more range.
• MEGA Down Imaging+: Crystal-clear coverage down to 200 ft below your boat.
• Dual Spectrum CHIRP Sonar: Accurate arches and bottom detail using Wide and Narrow modes.
• Internal GPS with Humminbird Basemap: Covers 10,000+ lakes and U.S. coastal waters with depth markers, hazards, and contours.
• LakeMaster & CoastMaster VX Map Card: Includes U.S. and Canada region data.
• AutoChart Live: Real-time custom map creation with depth, vegetation, and hardness mapping.
• Premium Chart Compatible: Supports LakeMaster®, CoastMaster™, and Navionics® charts.
• One-Boat Network Compatible: Seamless control with Minn Kota & Cannon gear.
• Ethernet Networking: Connect multiple fish finders or CHIRP radar.
• Bluetooth Enabled: Wireless updates, anchor control, and smartphone notifications.
• NMEA 2000® Networking: Display boat performance, weather, water conditions, and more.

Technical Specifications

• Display: 12.1" Color TFT | 1280H x 800V
• Sonar Standard: Dual Spectrum CHIRP, MEGA SI+, MEGA DI+
• Sonar Optional: 50/83/200 kHz, Airmar compatible
• CHIRP Frequencies: 140–240 kHz (Narrow/Wide/Full Modes)
• Depth: 3,500 ft with optional 50 kHz | 1,200 ft with standard
• Side Imaging Range: 800 ft (455 kHz), 250 ft (MEGA)
• Down Imaging Depth: 200 ft (MEGA), 400 ft (455 kHz)
• Mapping: LakeMaster, CoastMaster, Navionics Gold/HotMaps, Platinum+
• Memory Card Slots: Dual microSD
• Networking: Ethernet, Wi-Fi, Bluetooth, NMEA 2000®
• Waypoints: 10,000 | Routes: 50 | Tracks: 50/20,000 points
• Mounting Options: Gimbal (standard) or In-Dash (optional)
• Dimensions: 14.145" W × 8.911" H × 3.989" D
• Power: 10.8–20 VDC | 1000W RMS | 8000W Peak-to-Peak

Compatibility

• Minn Kota i-Pilot Link, Talon, Raptor
• MEGA Live Imaging, MEGA 360 Imaging
• Humminbird Radar, NMEA 2000 Sensors

What’s Included

• Humminbird Xplore 12 CMSI+ Display
• LakeMaster and CoastMaster VX Map Card
• Gimbal Mount & Power Cable
• User Documentation

Warranty

Backed by a 2-Year Limited Manufacturer Warranty.

Note: Transducer not included. Compatible with multiple sonar modules and transducers (sold separately).
