Humminbird XPTH-9 Thru-Hull Transducers.

$121.95

~~$169.99~~ $121.95

Sold out

-28%

Shipping calculated at checkout.

Low stock: 6 left

Transducer Type: Dual Spectrum CHIRP Dual Spectrum CHIRP MEGA Side/Down Imaging MEGA Side/Down Imaging+

Description

Humminbird XPTH-9 Thru-Hull Transducers

Models:

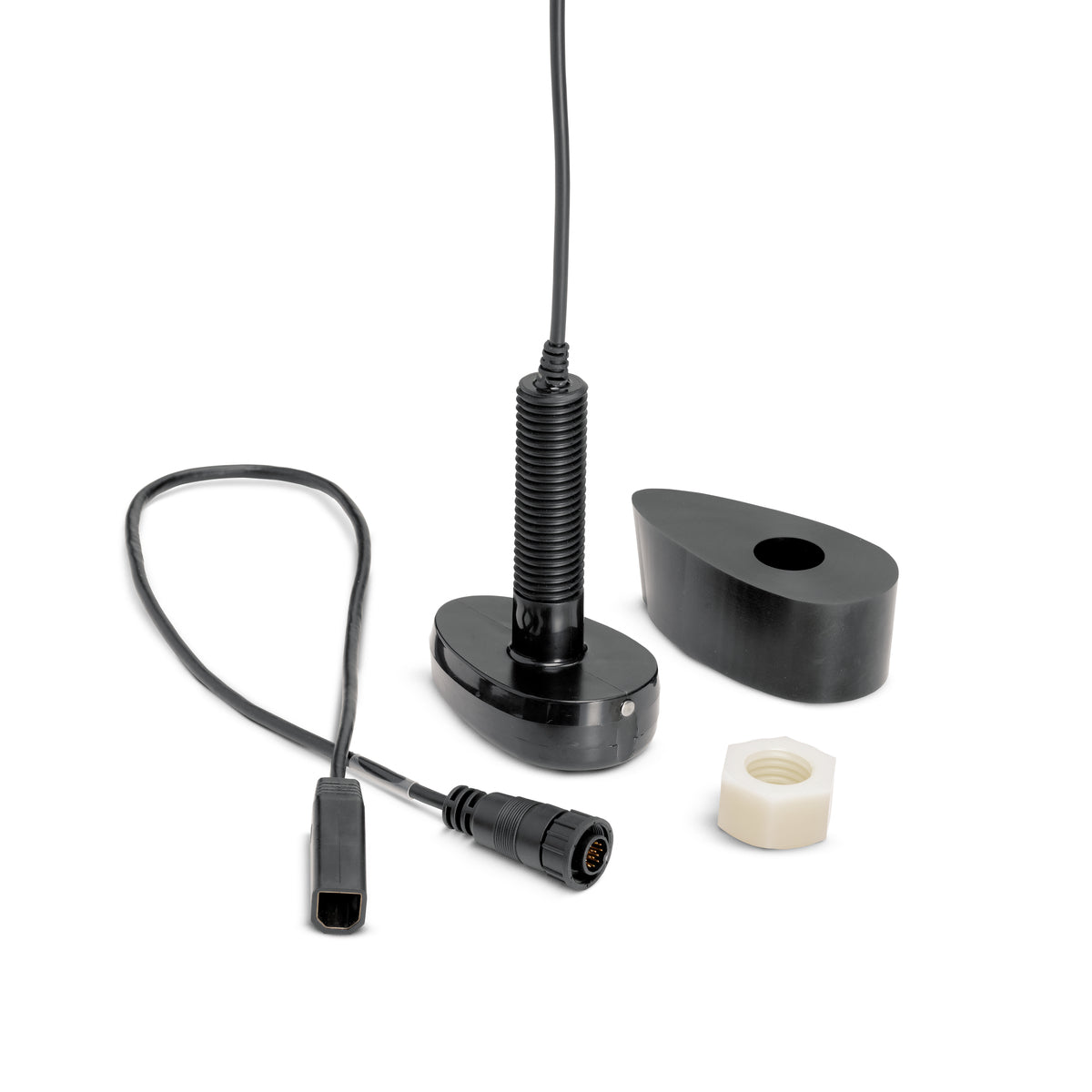

7102791 – XPTH-9-HW-T Dual Spectrum CHIRP thru-hull transducer for HELIX 5/7/8/9/10/12/ICE HELIX (2D sonar only)

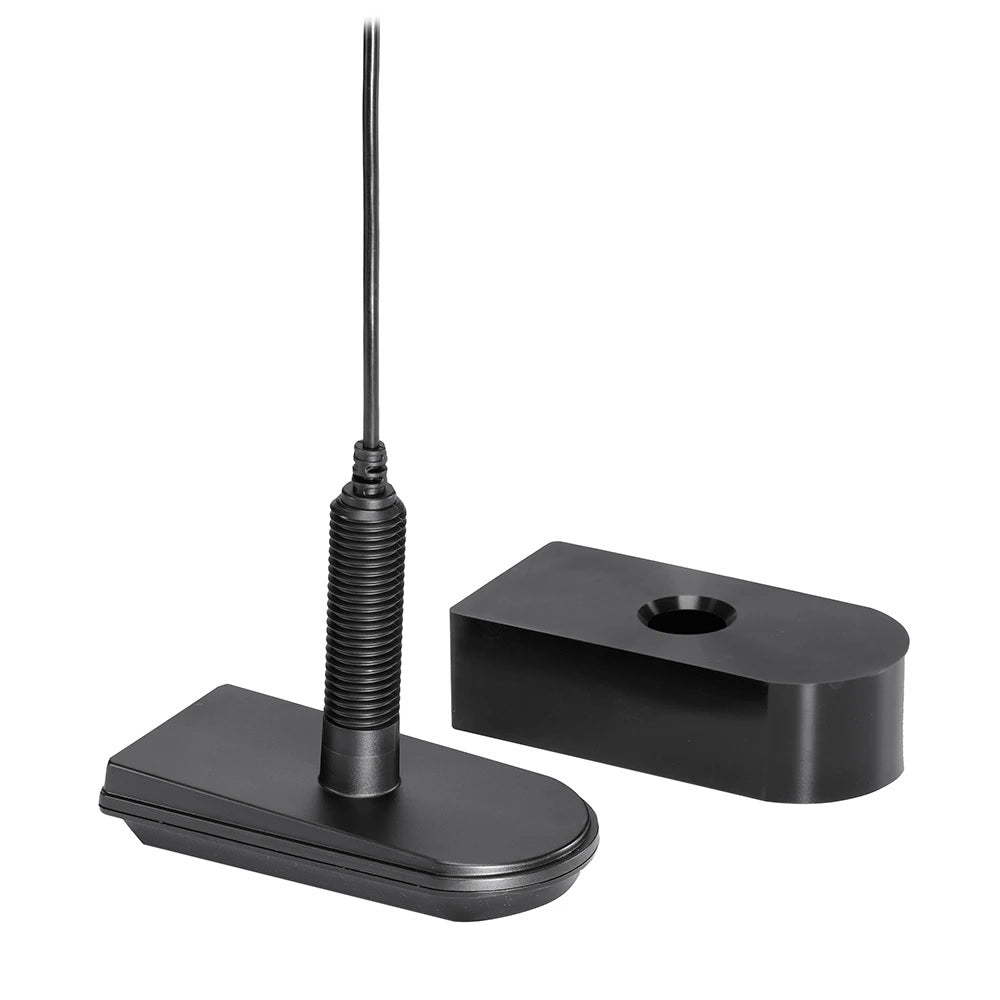

7102641 – XPTH-9-20-MSI-T MEGA Side/Down Imaging thru-hull transducer for HELIX MEGA Side Imaging units

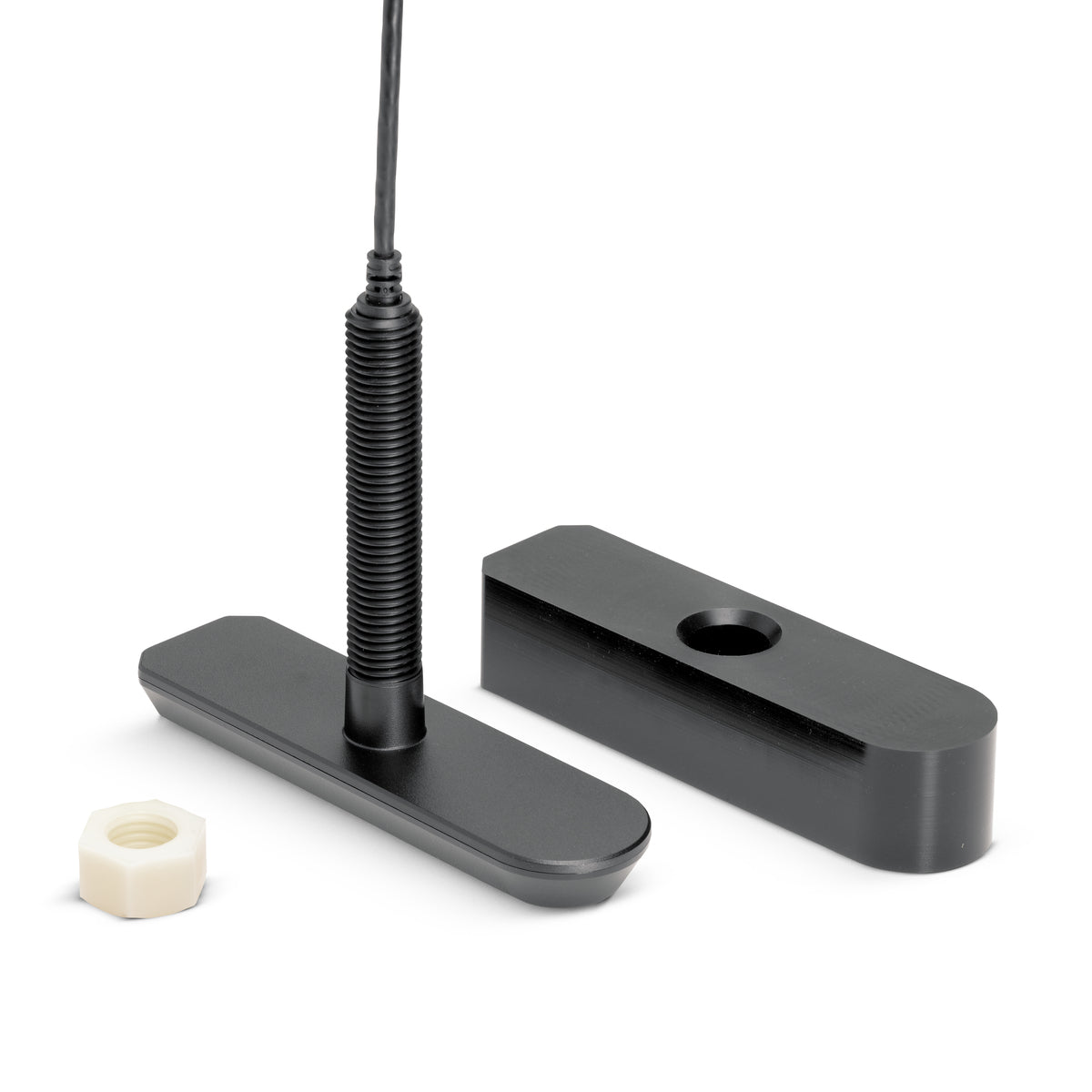

7102841 – XPTH-9-HW-MSI-T MEGA Side/Down Imaging+ thru-hull transducer for HELIX 8/9/10/12 MEGA SI+ G3N

Product Description

Humminbird XPTH-9 series plastic thru-hull transducers provide permanent high-performance sonar installations for HELIX series fishfinders. Featuring Dual Spectrum CHIRP 2D sonar (150-220kHz, 1200ft max depth) with MEGA Side/Down Imaging options, built-in temperature sensors, rugged composite housings, and 30ft cables. Designed for clean hull penetrations with dimensions optimized for fiberglass boats (7.34"L x 3"W, 1.0" shaft where specified).

Key Features

Dual Spectrum CHIRP 2D sonar (Full: 150-220kHz, Narrow: 180-240kHz, Wide: 140-200kHz, 1200ft max)
MEGA Side/Down Imaging+ with 455/800kHz/MEGA frequencies for detailed structure coverage
Plastic thru-hull design (1.0" shaft diameter on MSI models)
Built-in temperature sensor for surface water readings
30ft cable length for flexible routing

Comparison Table

Feature	710279-1 HW-T	710264-1 MSI-T	710284-1 HW-MSI-T
CHIRP 2D Max Depth	1200ft	1200ft	1200ft
MEGA DI Max Depth	None	125ft+ (MEGA)	200ft (MEGA+)
MEGA SI Max Range	None	250ft+ (MEGA)	400ft (MEGA+)
455kHz DI Depth	None	400ft	400ft
800kHz DI Depth	None	125ft	125ft
Coverage Angles	Wide/Narrow CHIRP	20°/60°/86°/55°	Multiple CHIRP
Compatible HELIX Models	5/7/8/9/10/12/ICE	MEGA SI units	8/9/10/12 MEGA SI+
Cable Length	30ft	30ft	30ft
Mount Type	Thru-Hull	Thru-Hull	Thru-Hull
