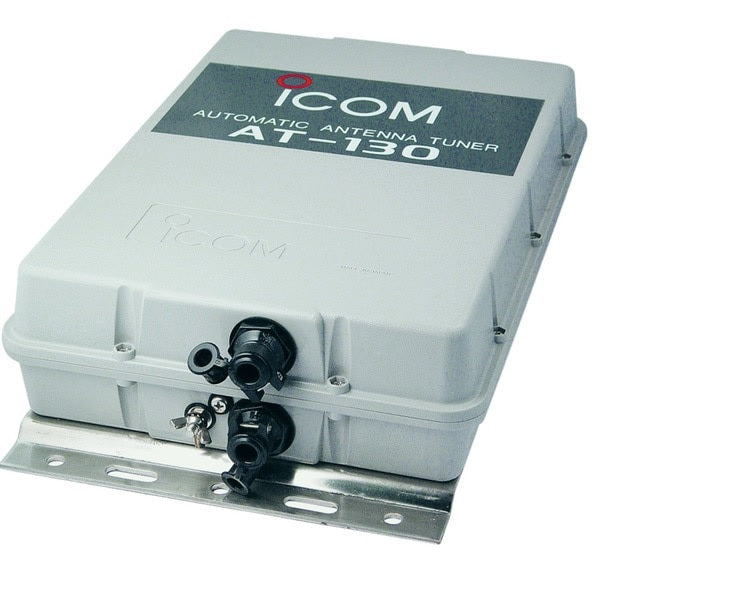

Icom AT-130 Tuner

Product Description

The Icom AT-130 is an automatic antenna tuner designed for HF marine transceivers, automatically matching 1.6-30 MHz antennas for optimal SWR across marine bands.

Product Overview

This compact tuner integrates with Icom HF radios like M700TY, M802, and M803, enabling efficient transmission with wire antennas as short as 7m (23 ft) on fishing vessels and coastal boats requiring reliable long-range communications.

Key Specifications

• Frequency coverage: 1.6-30 MHz (HF marine bands)

• Power handling: 150W PEP / 100W continuous

• Power supply: 13.6V DC from transceiver

Technical Specifications

• Tuning time: 2-3 seconds typical, 1 second memory retune (45 memories)

• Tuning accuracy: VSWR ≤2.0:1; current drain max 2A

• Antenna connector: SO-239; temperature range -30°C to +60°C

What's in the Box

• Icom AT-130 automatic antenna tuner

• Control cable and mounting hardware

• Installation manual
