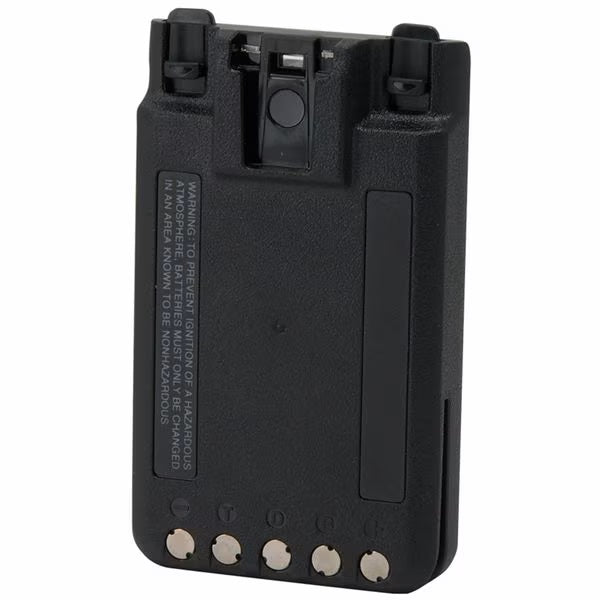

Icom BP292UL 2010mAh Li-ion Intrinsically Safe Battery For M85UL

Product Description

The Icom BP-292UL is a 2010mAh lithium-ion intrinsically safe battery pack designed exclusively for the IC-M85UL hazardous location handheld marine VHF radio.

Product Overview

In marine and industrial hazardous environments, this battery powers the IP67/IPX7 waterproof M85UL VHF for extended operations (up to 11 hours TX:RX:standby 5:5:90), certified for Class I/II/III Division 1 explosive atmospheres on boats or offshore platforms.

Key Specifications

• Capacity: 2010 mAh (typical), 1910 mAh (minimum)

• Voltage: 7.2 VDC

• Chemistry: Lithium-ion (Li-ion), intrinsically safe

• Weight: Adds to radio's 285g total with antenna/clip

Technical Specifications

• Meets ANSI/TIA-4950-B, ANSI/UL 121201, UL913 Ed.8 for intrinsic safety (T3C rating, -20°C to +60°C).

• Provides 5W marine/2W land mobile output with 1.5A TX current drain; 700mW audio output.

• IP67 dust/waterproof when installed, MIL-STD-810G rugged for shock/vibration/salt fog.

What's in the Box

• One Icom BP-292UL 2010mAh Li-ion Battery
