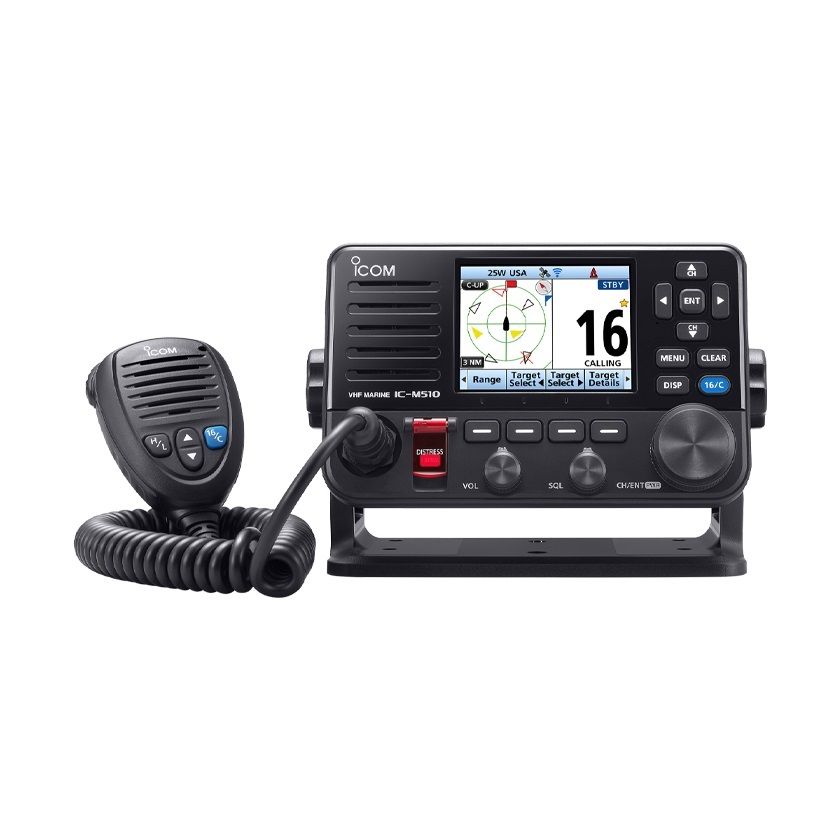

Icom M510 EVO Class-D DSC VHF Marine Radio with NMEA 2000.

Icom M510 EVO Class-D DSC VHF Marine Radio with NMEA 2000™ and WLAN

Model:

• M510 EVO 41 USA

• M510 PLUS EVO 51 USA (with integrated AIS receiver)

Product Description

The Icom M510 EVO series VHF marine transceivers combine advanced Class D DSC, NMEA 2000™ connectivity, and WLAN smartphone control via the RS-M500 app for up to three devices acting as wireless mics or remotes. Featuring IP68 waterproofing (1m depth for 60 minutes), integrated GNSS receiver (internal or optional UX-241 antenna), and AquaQuake™ speaker protection, these radios offer color TFT LCD with 180° viewing angle and night mode. The Plus model adds real-time AIS vessel traffic display and direct DSC target calling. Both support two-way hailer/RX hailer (up to 25W with optional SP-37), voice scrambler (optional UT-112A), optional HM-195 CommandMic™, and 4-digit channel support. Award-winning iF DESIGN 2022 styling fits modern black glass cockpits with panel or trunnion mounting.

Key Features

• Class D DSC with distress button and continuous CH70 monitoring

• NMEA 2000™ plug-and-play networking for MFD integration

• WLAN/RS-M500 app for smartphone remote control and intercom

• Integrated GNSS (GPS) with internal/external antenna options

• IP68 waterproof with AquaQuake™ audio protection

• Color TFT LCD with night mode and wide viewing angle

• Hailer/RX hailer/foghorn (15-25W external output)

• Optional voice scrambler (UT-112A) and CommandMic™ (HM-195)

• AIS receiver and target calling (M510 PLUS EVO only)

• Supports USA, CAN, INT, WX channels with 25W/1W power

Comparison Table

What's In The Box

• Icom M510 EVO VHF radio (model as ordered)

• Speaker microphone HM-205RB

• Microphone hanger

• DC power cable

• Mounting bracket kit

• Waterproof flash mount gasket
