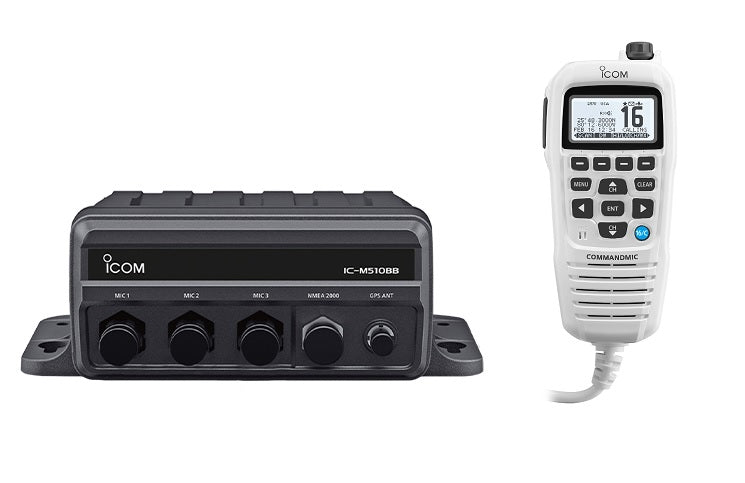

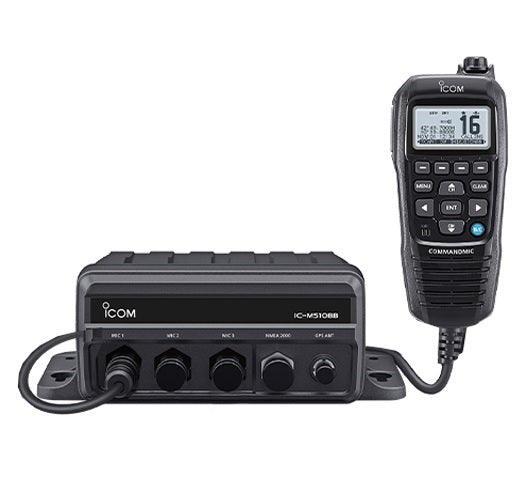

Icom M510BB Black Box VHF With HM195 CommandMic.

Icom M510BB Black Box VHF with HM195GB Black CommandMic / HM195GW White CommandMic

Models:

• M510 BB 21 USA (with HM195GB Black CommandMic)

• M510 BB GW 21 USA (with HM195GW White CommandMic)

Product Description

The Icom M510BB is a space-saving black box VHF marine radio system that combines advanced safety, communication, and AIS receive capability, ideal for commercial and leisure vessels. The RF unit is installed out of sight and all radio, DSC, and AIS operations are handled via the supplied CommandMic™, which can be installed up to 60 ft (18.3 m) from the RF unit. The system supports up to three CommandMic™ stations, allowing communication points to be extended throughout the vessel, including intercom functionality between stations. The integrated AIS receiver provides target info on the CommandMic™ and can output data to the NMEA 2000® bus for display on compatible MFDs. A last-call voice recording feature saves up to two minutes of incoming audio, and the Active Noise Cancelling function ensures clear communications by reducing background noise. The radio supports USA, INT, CAN, and WX channels and can broadcast or sound foghorn patterns through an external hailer speaker.

Key Features

• Black box VHF configuration with remote CommandMic™ operation

• Up to 3 CommandMic™ stations and intercom (one-to-all or one-to-one)

• Integrated AIS receiver with NMEA 2000® and NMEA 0183-HS connectivity

• Dedicated DSC Remote Control terminal for centralizing emergency communications

• Two-minute last-call voice recording function

• Active Noise Cancelling for clear transmit and receive audio

• Built-in 15W amplifier supports external hailer/foghorn output

• Waterproof design (RF unit and CommandMic™)

• AquaQuake function, GPS compatibility (external antenna for USA version)

• Supports DSC alerts with dedicated button and programmable MMSI

• Wide voltage operating range for marine use (13.8 V DC nominal)

• Compact RF unit for convenient hidden installation

Comparison Table

What's In The Box

• IC-M510BB RF unit

• DC power cable (2 m)

• Connection cable, OPC-1540 (6.1 m, 20 ft)

• CommandMic™ HM195GB or HM195GW (based on model)

• Microphone hanger

• Connector cap

• Mounting base
