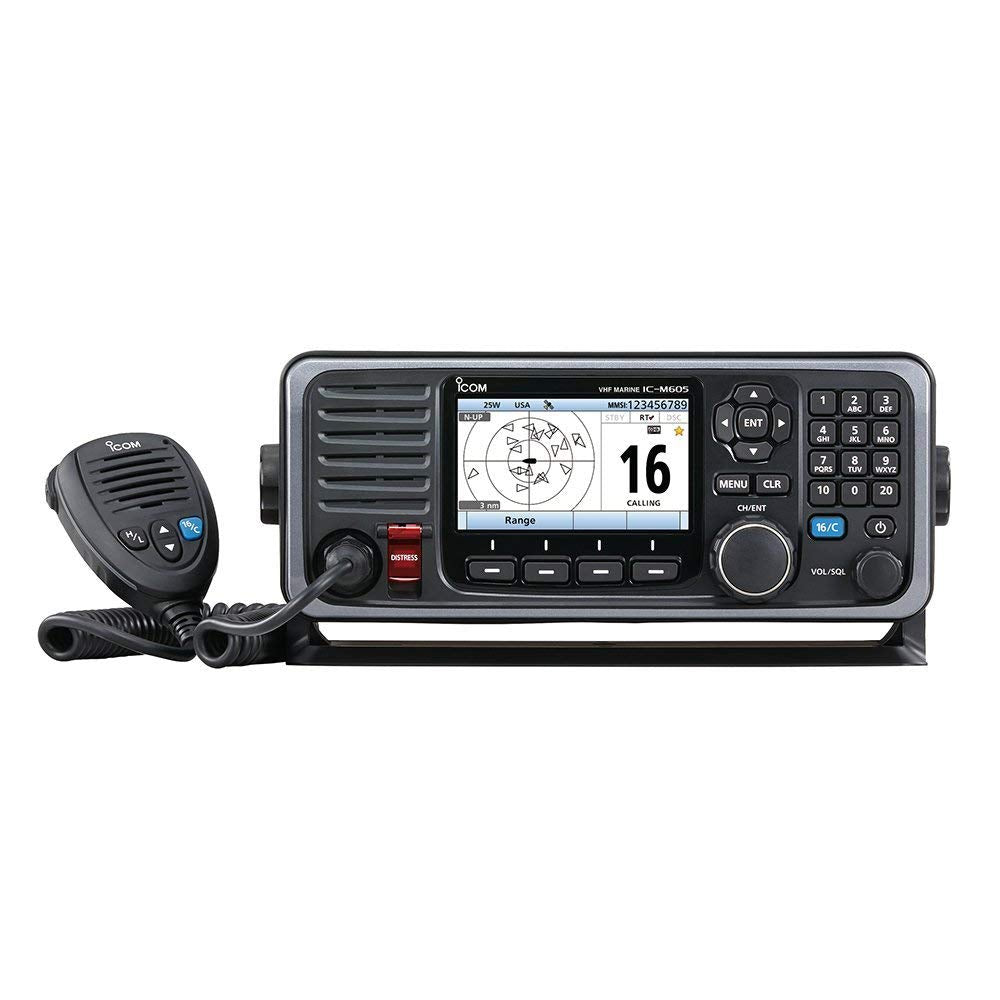

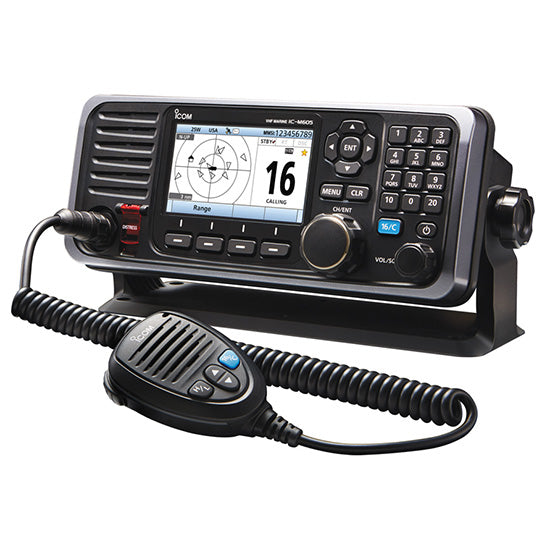

Icom M605 VHF Fixed Mount with Color Display and Rear Mic Connector.

Icom M605 VHF Fixed Mount with Color Display and Rear Mic Connector

Model:

• M605 31 USA

• M605 41 USA (with integrated AIS receiver)

Product Description

The Icom M605 is a fixed-mount VHF marine radio featuring a 4.3" wide color TFT LCD with night mode for easy readability in low light. It offers an intuitive user interface combining directional keypad and soft keys for quick access to frequently used functions such as channel selection and MMSI entry. Equipped with Class D DSC, active noise cancelling, and last call voice recording, the radio ensures clear communication and safety. The built-in 30W listen-back hailer and horn/foghorn functions allow effective deck or shore communication and signaling. The IPX8 waterproof rating supports submersion up to 1 meter for 60 minutes. NMEA 2000™ and NMEA 0183 connectivity allow seamless integration with marine electronics and navigation equipment, including AIS data display and calls when paired with the integrated AIS receiver on the M605 41 model. The system supports dual and tri-watch functions, weather alert channels, and AquaQuake™ draining function. The radio is remotely controllable from up to three controllers, including RC-M600 and HM-195 series CommandMic™ units with intercom functionality for flexible operation throughout the vessel.

Key Features

• 4.3" color TFT LCD with night mode for enhanced readability

• Intuitive keypad and soft key user interface for fast operation

• Class D DSC with multi-task function and instant access buttons

• Active noise cancelling for clear audio in noisy environments

• 30W external speaker amplifier with built-in horn/foghorn and RX hailer

• IPX8 waterproof protection

• NMEA 2000™ and NMEA 0183 connectivity for marine network integration

• Supports up to three remote controllers with intercom feature

• Integrated GNSS receiver (GPS, GLONASS, SBAS) with supplied external antenna

• 32-tone voice scrambler compatible (optional UT-112 unit)

• AIS receiver and target calling (M605 41 USA model)

• AquaQuake™ water draining function

• Dual and tri-watch, weather alert channels

Comparison Table

What's In The Box

• Icom M605 VHF radio (model as ordered)

• Hand microphone (HM-205RB)

• GNSS antenna (UX-241)

• PC power cable

• Mounting bracket kit

• OPC2384 adapter cable
