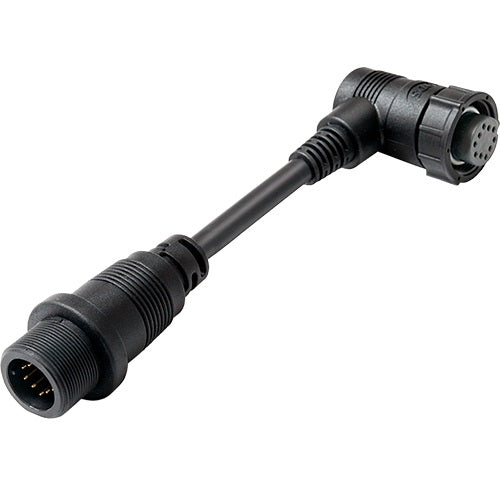

Icom OPC2523L L-Type Adapter 10-Pin for HM-195

Product Description

The Icom OPC-2523L is an L-type (right-angle) 10-pin to 10-pin conversion adapter cable designed specifically for the HM-195 series CommandMic speaker microphones.

Product Overview

In marine VHF communication systems on boats, this compact adapter connects the HM-195 CommandMic to compatible Icom transceivers like IC-M510, IC-M605, and IC-M510BB, providing a 90-degree angle for cleaner cable routing in tight helm areas.

Key Specifications

• Length: 150 mm (5.9 inches)

• Connector: 10-pin to 10-pin L-type (90-degree)

• For HM-195B/GB/GW/SW and HM-229 series

• Waterproof compatible with IPX7/IPX8 radio ratings

Technical Specifications

• Converts straight 10-pin CommandMic connector to right-angle for reduced strain and space-saving installations on marine VHF radios.

• Supports full CommandMic functionality including intercom, position sharing, and high-output audio.

• Maintains waterproof integrity for submersion up to 1m for 30 minutes when paired with rated Icom equipment.

What's in the Box

• One Icom OPC-2523L L-Type 10-Pin Adapter Cable
