Lewmar 15ST Evo Single Speed Self Tailing Winches.

$1,194.95

~~$1,194.95~~ $1,194.95

Sold out

Shipping calculated at checkout.

Low stock: 2 left

Finish: Alloy Black Alloy Black Alloy Grey Chrome Bronze

Description

Lewmar EVO™ Series Single Speed Self-Tailing Winches

Models:

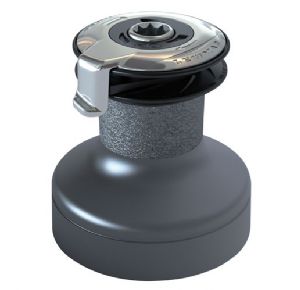

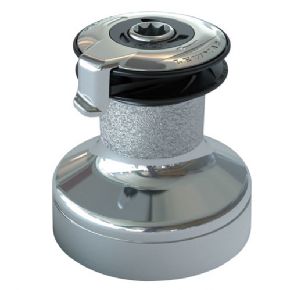

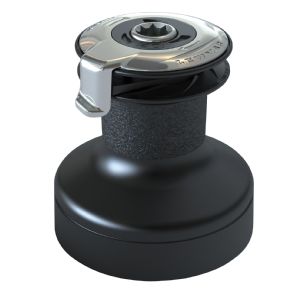

15ST Evo – Available in Alloy Black, Alloy Grey, and Chrome Bronze finishes.

Product Description

The Lewmar EVO™ Winch Range represents the evolution of the renowned Ocean winch, combining advanced features in a sleek design. The 15ST Evo Single Speed Self-Tailing Winches offer easy servicing with no tools required, user-friendly directional arrows for intuitive operation, and all the benefits of the EVO™ range. These winches can also be converted to electric, providing versatile options for sail handling. Mounting is done with 5 x M6 (1/4") countersunk screws on 94mm (3 11/16") PCD.

Key Features

Easy servicing without the need for tools
User-friendly directional arrows for clear operation
Full EVO™ range benefits: durability, smooth action, and reliability
Convertible to electric for powered sail control
Mounting with 5 x M6 (1/4") countersunk screws on 94mm PCD

Specifications Summary (15ST Evo)

Feature	Alloy Black	Alloy Grey	Chrome Bronze
Gear Ratio 1st	2:1	2:1	2:1
Power Ratio 1st	15.8:1	15.8:1	15.8:1
SWL (Safe Working Load)	1257 lbs	1257 lbs	1257 lbs
Weight (lbs)	6.4	6.4	8.6
Drum Diameter (in)	2 9/16	2 9/16	2 9/16
Base Diameter (in)	4 3/4	4 3/4	4 3/4
Height (in)	4 11/16	4 11/16	4 11/16
Line Entry (in)	2 5/16	2 5/16	2 5/16
Line Size (in)	5/16 - 1/2	5/16 - 1/2	5/16 - 1/2
