Lewmar 16 Single Speed Self Tailing Winches.

$1,300.95

~~$1,300.95~~ $1,300.95

Sold out

Shipping calculated at checkout.

Low stock: 1 left

Finish: Aluminum Aluminum Chrome

Description

Lewmar 16AST & 16CST Single Speed Self-Tailing Winches

Models:

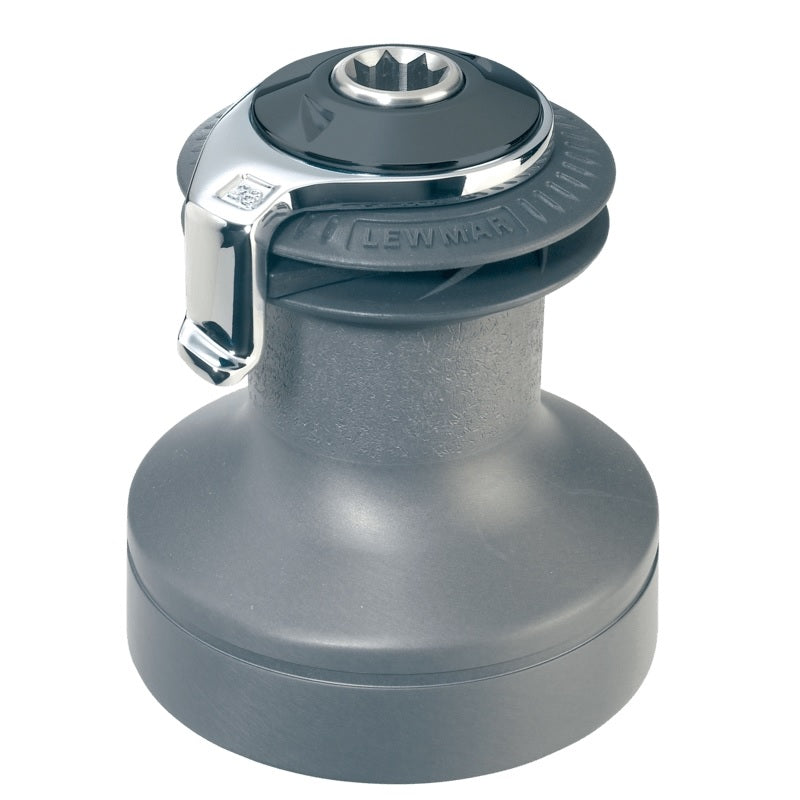

16AST – Single Speed Self-Tailing Aluminum Winch

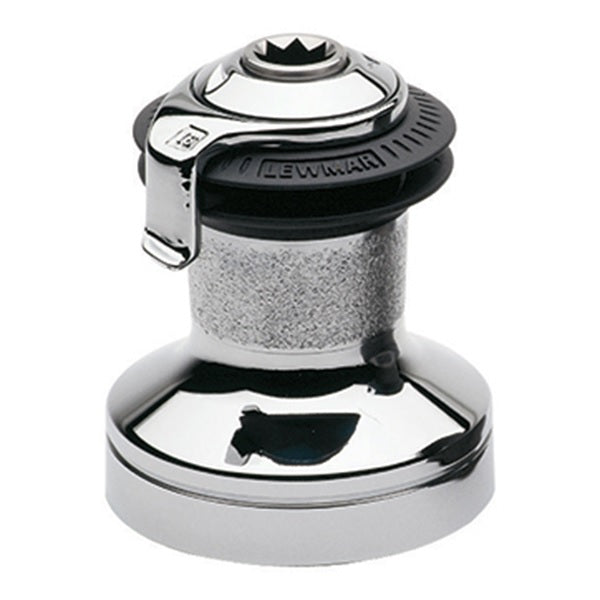

16CST – Single Speed Self-Tailing Chrome Winch

Product Description

The Lewmar 16AST and 16CST Single Speed Self-Tailing Winches feature the innovative 'Wavespring' self-tailer design, combining gentle wave grip jaws with self-adjusting springs for secure handling of both modern smaller diameter lines and traditional larger Dacron ropes. A sleek, low-friction feeder arm ensures completely snag-free operation, making these winches ideal for precise sail control. Mount using 5 x M6 (1/4") countersunk screws on 94mm (3 11/16") PCD, with recommended rope entry angle of 5-10° to the base axis (base wedge may be required). Both models are made to order for custom marine applications.

Key Features

Wavespring self-tailer with gentle wave grip and self-adjusting springs
Handles 5/16-1/2" line sizes (smaller modern and larger Dacron ropes)
Minimum-friction feeder arm for snag-free rope feeding
Single speed with 2:1 gear ratio and 15.8:1 power ratio
5 x M6 (1/4") mounting on 94mm PCD; 5-10° rope entry angle recommended

Comparison Table

Feature	16AST (Aluminum)	16CST (Chrome)
Gear Ratio	2:1	2:1
Power Ratio	15.8:1	15.8:1
Weight (lb)	6.4	8.6
Drum Diameter D (in)	2 9/16	2 9/16
Base Diameter B (in)	4 3/4	4 3/4
Height H (in)	5 3/4	5 3/4
Line Entry L (in)	2 5/16	2 5/16
Line Size (in)	5/16-1/2	5/16-1/2
Finish	Aluminum	Chrome
Mounting	5x M6 (1/4") on 94mm PCD	5x M6 (1/4") on 94mm PCD
